17.3″ 18.5 inch industries pc pill laptop Celeron J1900 All In One PC with contact display home windows 10 professional WiFi RS232 com

Industrial PC Resistive contact pc

17.3 inch(1600*900)/18.5 inch(1366*768)

industrial pc parameters

Model：YASHITENG
Aterial：Steel
Reminiscence: optionally available No RAM /2GB/4GB/8GB DDR3 System Reminiscence
Storage:optionally available No SDD /32GB/64GB/120GB /240GB SDD
System: WIN10 professional
Graphic: IntelHD Graphics
Coloration: black (customizable coloration)
Weight: about 5-7Kgs

System Parameter：

built-in Intel Celeron Processor J1900（4 cores, 2m cache, as much as 2.00 ≤ 2.41 GHz,TDP energy consumption:10w）
Space for storing：No SDD/32G/64G / 128G / 256G Elective）
inside storage：Elective No RAM/4GB/8GB DDR3 System reminiscence

Parameters of LCD Contact display：

Brightness：250cd/m2
Distinction Ratio：1000:1
Viewing Angle：Horizontal(left/proper): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.)(Tr+Td) (ms)
Body Price：60Hz
Coloration system：PAL/ NTSC
Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
energy requirement of system：+ 12V DC energy enter
Energy adapter：enter：100〜250VAC，50 / 60Hz
output：60W Adapter（12V 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug obtainable
Menu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Conventional Chinese language, Simplified Chinese language,and many others
VISA Gap distance：75*75mm

Supply Time
Pattern:1~5 working days.
10~100pcs:2~7 working days.
Greater than 100pcs :5~15 working days

★★★ SPECIAL REMINDER ★★★

LOGO/Product Mannequin/Case Materials/Add Contact Perform/Add Constructed-in Speaker/Add Distant Management Perform/Base Model/Display Measurement/Interface Kind/Energy Kind/Set up Mode(Wall-hang/Embedded/Open-frame),and many others.,might be custom-made for you(However want to satisfy the necessities of MOQ).In case you have this demand,please contact us,we’ll offer you well timed and considerate service!

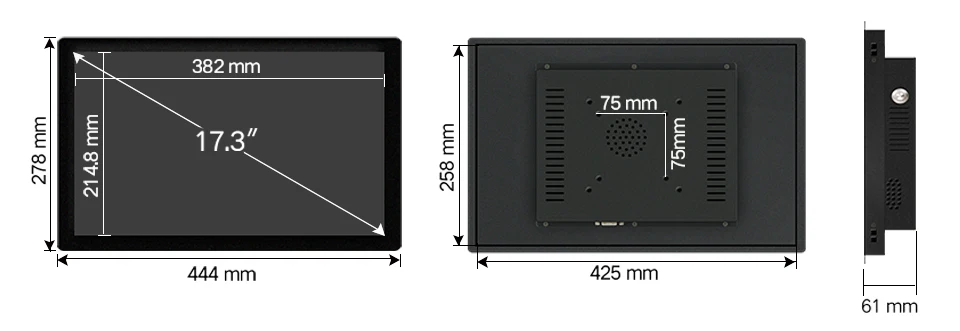

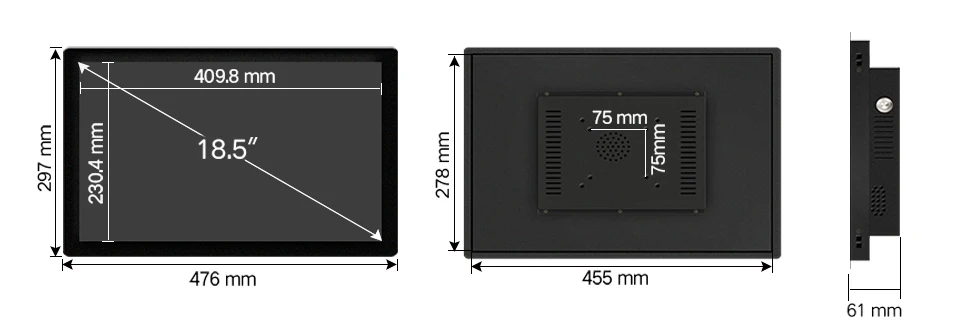

Measurement

Decision: 17.3 inch(1600*900)/18.5 inch(1366*768)
Unit of measure: mm

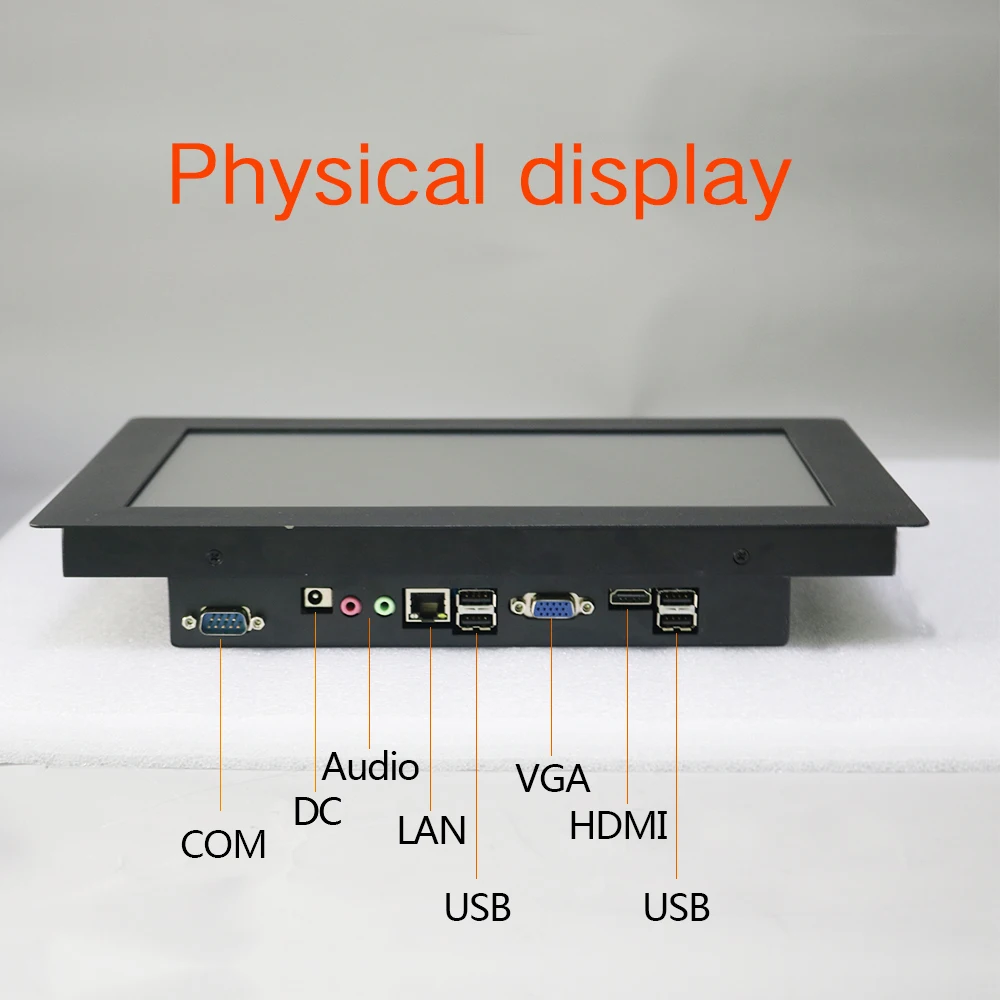

Product interface (assist customization)

1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface, please contact us to customise 485 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

Set up Mode

There are eight small holes behind the product, the gap between the 4 set up holes inside is 75mm x 75mm, and the surface 4 mounting holes are 100mm x 100mm, outfitted with wall hanging set up equipment and embedded set up equipment, the set up mode is versatile, and the next set up strategies are for reference solely.

Delicate Contact Speedy Response

Resistive contact occasions > 35 million occasions, backlight life 50000h

Industrial-grade customized motherboard

Quite a lot of industrial motherboards can be found, with high-performance processors and low noise consumption. First selection for industrial use, secure operation in harsh environments.

The machine runs stably

24/7 secure operation
Environment friendly work for a very long time, quick cooling

Steel case, resist to excessive and low temperature setting

Industrial cold-rolled sheet metallic shell, chilly and excessive temperature resistance, as little as -20 ℃ ~ 60 ℃.
Can successfully adapt to secure work in harsh environments

About customization

Please contact customer support to state your wants.
Help brand, shell, coloration, operate, interface and different customization, please contact us for one of the best value

Product utility area show

Merchandise are extensively utilized in industrial management CNC trade, medical trade, manufacturing facility manufacturing workshop,
Financial institution computerized ticket merchandising machines, grocery store promoting, video surveillance, and many others.
