2005A TYT TH-9800 Plus Walkie Talkie 50W Automotive Cellular Radio Station Quad Band 29/50/144/430MHz Twin Show Scrambler TH9800

SKU: RL2T7BLJ59GG Category: Walkie Talkie

$196.32

Improve model Skilled TYT TH-9800 Plus Professional 50W 809CH Quad Band Twin Show Repeater Scrambler VHF UHF

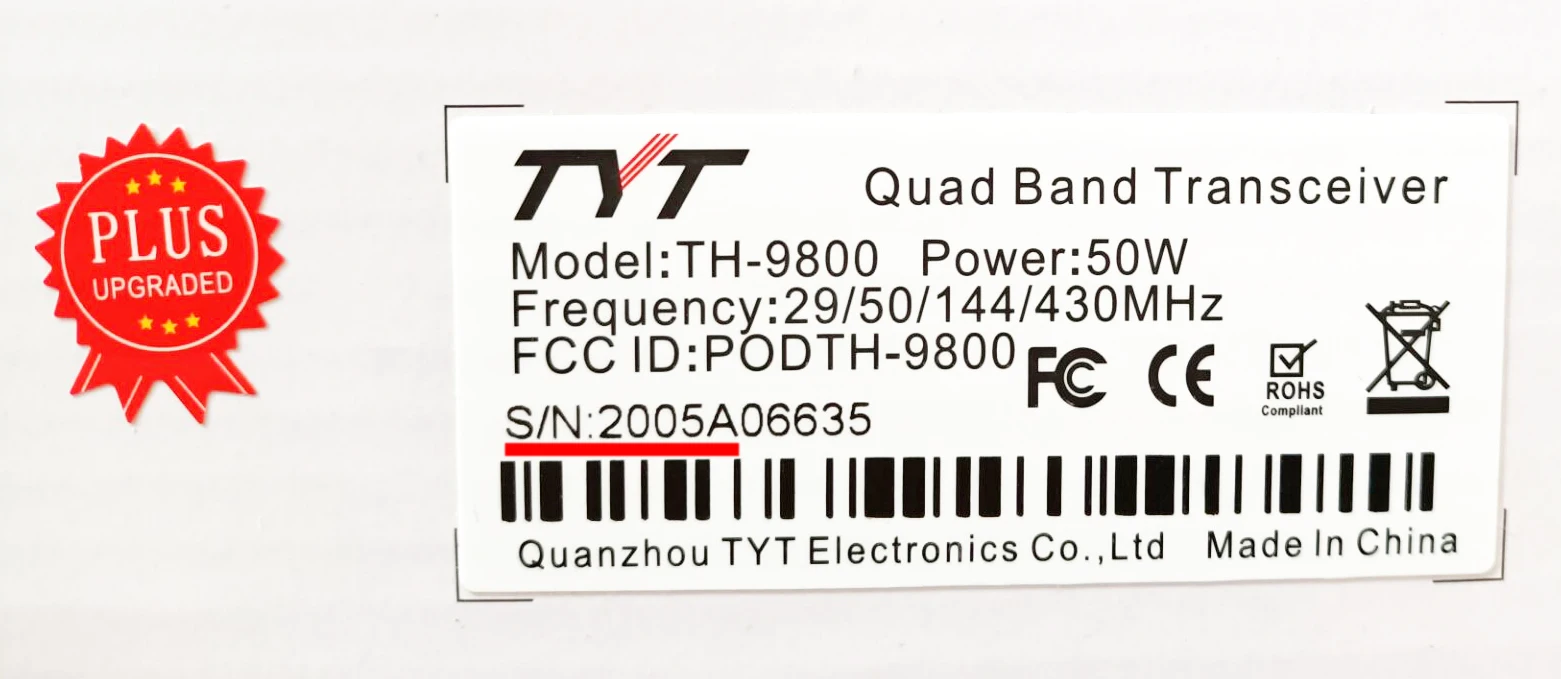

NOTE:S/N : 2005A can be despatched solely from China and Poland.

Programming Software program and English Consumer Handbook will be despatched through Electronic mail totally free.

Primary options :

Quad band transmit and receiver

Cross Band Repeat

Individually Entrance Panel

809 Reminiscence Channels

DTMF Microphone

Fm Radio 108-135.995MHz

Excessive/Low Output Energy Ranges

Reverse Frequency Choice

Twin (V/U) Squelch Set Ranges

Twin Repeater Offsets Choose-Ready

Multi Scanning

Repeater Offset

Keypad Lock Perform

Channel Identify Enhancing

Ctcss/Dcs Encode/Decode

Specification

Mannequin

TH-9800

Frequency Vary

RX solely:108-135.995mhz,320-512mhz,
750-950mhz
(Mobile Blocked)

TX(FM): 26-33mhz,47-54mhz,136-174MHZ ,
400-480MHZ

Channel Capability

809 Channels

Channel Spacing

2.5 /5 /6.25 /10 / 12.5 /15 /20 /25 /50 kHz

Modes of emission

F3

Antenna Impedance

50 Ohms,unbalanced (Antenna Duplexer built-in)

Frequency Stability

plusmn5PPM@-140℉~+140℉(-10℃~+60℃)

Working Voltage

-4℉~+140℉(-20℃~+60℃)

Working Temperature Vary

13.8VDC (plusmn15%),Damaging floor

Present Consumption(Approx)

RX:0.5A(Squelched)

TX:8.0A(50/430MHZ),8.5A(29/144MHZ)

Case measurement(WtimesHtimesD)

140*41.5*168 mm (w/o knobs & connectors)

Weight

1.2kg

Transmitter

output energy

50/20/10/5W(29/50/144MHZ),40/20/10/5W(430MHZ)

Modulation Sort

Variable Reactance

Most Deviation

Higher than -60dB(29MHZ: Higher than -50dB)

Modulation Distortion

Lower than 3%

Microphone Impedance

2kOmega

Receiver

Circuit Sort

Double-conversion super-heterodyne

Intermediate Frequency

49.95MHz/450KHz (left band)

38.85MHz/450KHz (proper band)

Sensitivity (for 12dB SINAD)

Higher than 0.2muV

Squelch Sensitivity

Higher than 0.16muV

Selectivity(-6dB/-60dB)

12KHz/30 KHz

Most AF output

2W@8Omega for five% THD

AF output Impedance

4-16Omega




Package deal Contents:

  • 1 x TH-9800 Cellular Transceiver

  • 1 x Microphone

  • 1 x Cellular Mounting Bracket

  • 1 x DC Energy Wire with Fuse

  • 2 x Spare Fuse 15 A

  • 1 Microphone Clip

  • 1times Screw Units

  • 1times Distant Entrance Panel Bracket

  • 1 x English Working Handbook

  • 1 x Extension Cabl

Specification: 2005A TYT TH-9800 Plus Walkie Talkie 50W Automotive Cellular Radio Station Quad Band 29/50/144/430MHz Twin Show Scrambler TH9800

Brand Name

TYT

Battery Capacity(mAh)

depend on radio

Origin

CN(Origin)

Is_Display

Yes

Waterproof / Water-Resistant

No

Walkie Talkie Type

Car

Maximum Range

10km-50km

Output Power(w)

25w-50w

Certification

CE

Model Number

TH-9800

Frequency Range

Quad Bands Transmission & Six Bands Reception

Dimensions

114x57x33mm

Storage Channel

809

Material

Plastic

Channel Step

2.5/5/6.25/10/12.5/15/20/25/50KHz

Color

Black

Modes of Emission

FM

Weight

2.5kg with package

Suitable antenna

HH-9000 NL-770R SD-8900

Output power

50/20/105W(29/50/144MHz) 40/20/10/5W(430MHz)

transceiver

two way radios

is_customized

Yes

Type

radio walkie talkie 50km
