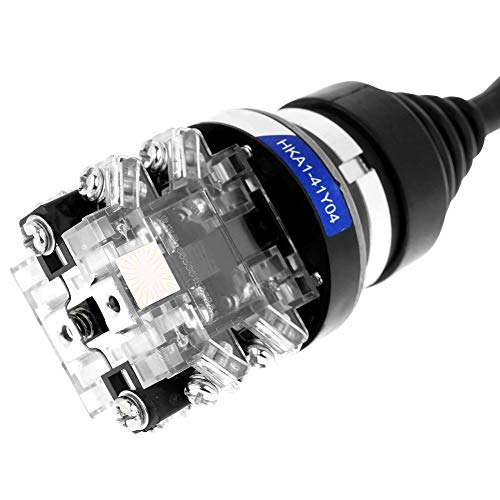

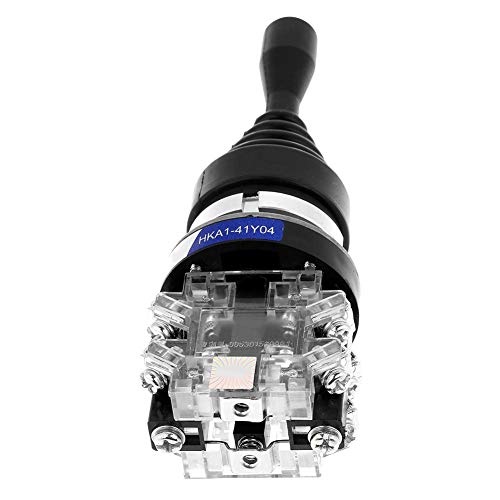

380V 15A AC Joystick Controller 4 Place 4NO Pleasure Stick Joystick Controller Swap Alternative
$19.07
Value: $19.07
(as of Jul 08,2022 23:59:28 UTC – Particulars)
Description:
This spring return 4 place joystick change has lengthy lifespan. Extensively used within the industrial management circuit of AC 50 HZ, rated operation voltage 0~380V and DC voltage of 0~220V, as a controller for magnetic starter, contactor, relay and different electrical wiring circuit.
Specs:
Materials: Plastic+Steel
Sort: 4 place self lock
Contact: 4NO
Voltage: AC 380V 15A
Setting temperature: -25 to +55 (with out freezing)
Working humidity: 45 ~ 85% RH (no condensation)
Contact resistance: 50mΩ
Insulation resistance: 100Ω
The utmost strain: 3000 V, AC 50 Hz resistance
Vibration: 50 Hz, amplitude of about 1mm
Impression resistance: greater than 10m / s2 (about 10G)
Measurement: Approx. 15×4.8cm / 5.9×1.9inch
Weight: 217g
Bundle Included:
1×Swap
Date First Obtainable : July 5, 2019
Producer : YWBL-WH
ASIN : B07TWX6HJK
Product introduce : 4 place change is extensively used within the industrial management circuit of AC 50 HZ, rated operation voltage 0~380V and DC voltage of 0~220V.
Product Characteristic : The joystick of this change can management the change of 4 positions, rapidly and precisely.
Large Functions : A controller change for magnetic starter, contactor, relay and different electrical wiring circuit.
Product Materials : This joystick controller is made of top of the range plastic and steel, sturdy building for long-lasting efficiency.
After Sale Service : If you don’t fulfill with our merchandise or if in case you have any questions, please come to us. We’d work out passable answer to all of your issues. 24 hours fast response.
