4.5 Toes DB9 (9 Pin) Feminine to DB25 (25 Pin) Male Empty Modem Serial Parallel Printer Cable YOUCHENG for DTE PC Mac Linux Knowledge Transmission Communication

$9.99


Value: $9.99
(as of Jul 09,2022 19:02:30 UTC – Particulars)

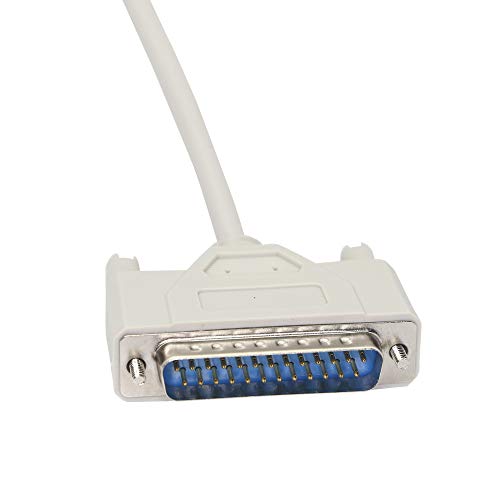

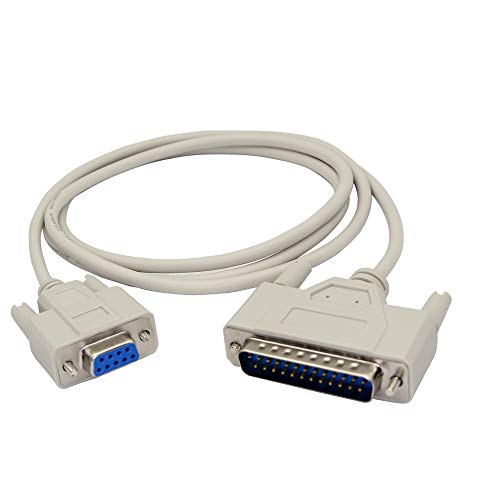

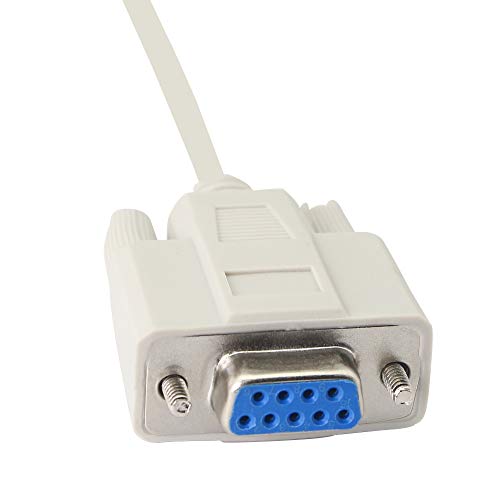

1.The null modem serial parallel cable has a DB9 feminine connector and a DB25 male connector, permitting you to attach a serial printer to a 25-pin serial port or switch recordsdata from PC to PC through a serial connection.
2. Our null modem serial cable permits two DTE or DCE gadgets to speak with out knowledge transmission conflicts.
3. The cable makes use of high-quality nickel-plated connectors and plugs and high-quality PVC injection-molded housing, which has the capabilities of damage resistance, sturdiness, steady transmission and so forth.

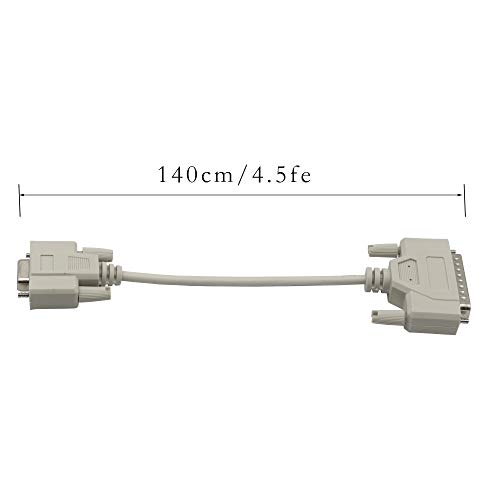

4. Cable size: 140CM/4.5 ft.
5. Pin definition: DB9 pin 1 to DB25 pin 8, DB9 pin 2 to DB25 pin 3, DB9 pin 3 to DB25 pin 2, DB9 pin 4 to DB25 pin 20, DB9 pin 5 To DB25 pin 7, DB9 pin 6 to DB25 pin 6, DB9 pin 7 to DB25 pin 4, DB9 pin 8 to DB25 pin 5, DB9 pin 9 to DB25 pin 22.

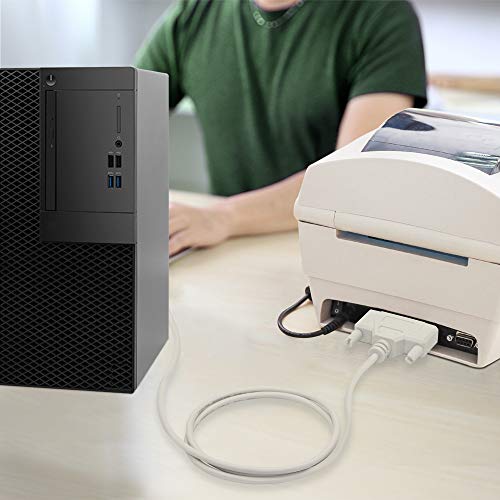

6. Relevant to make use of 9-pin serial pc to attach 25-hole invoice printer and different tools.
7. Packing amount: 1xDB9 pin to DB25 pin serial cable

Package deal Dimensions ‏ : ‎ 5.98 x 4.33 x 0.94 inches; 3.53 Ounces
Date First Out there ‏ : ‎ July 3, 2020
Producer ‏ : ‎ YOUCHENG
ASIN ‏ : ‎ B08C9FH7YW

The null modem serial parallel cable has a DB9 feminine connector and a DB25 male connector, permitting you to attach a serial printer to a 25-pin serial port or switch recordsdata from PC to PC through a serial connection.
Our null modem serial cable permits two DTE or DCE gadgets to speak with out knowledge transmission conflicts.
The cable makes use of high-quality nickel-plated connectors and plugs and high-quality PVC injection-molded housing, which has the capabilities of damage resistance, sturdiness, clean transmission and so forth.
DB9 feminine to DB25 feminine serial port pin definitions: DB9 pin 1 to DB25 pin 8, DB9 pin 2 to DB25 pin 3, DB9 pin 3 to DB25 pin 2, DB9 pin 4 to DB25 pin 20, DB9 pin 5 to DB25 pin 7, DB9 pin 6 to DB25 pin 6, DB9 pin 7 to DB25 pin 4, DB9 pin 8 to DB25 pin 5, DB9 pin 9 to DB25 pin twenty two.
Relevant to make use of 9-pin serial pc to attach 25-hole invoice printer and different tools
