AL-6C Fusion Splicer 3 in 1 Holder Fiber Optic Fusion Splicer Six Motor Core Alignment with LED Gentle for SM MM Cable(US Plug 110‑240V)

Worth: $979.02
(as of Jul 11,2022 00:12:12 UTC – Particulars)

Specification:
Materials: ABS, PCB, chrome steel
Fiber Alignment: Core, cladding, handbook alignment
Splicing Time: 8s
Heating Time: 18s
Heating Methodology: Automated heating (preheating)
Focusing Methodology: Six motor autofocus
Splicing Loss: 0.025dB(SM), 0.01dB(MM), 0.04dB(DS NZDS)
Splicing Methodology: Actual time management and calibration of splicing arc
Return Loss: Higher than 60dB
Fiber Diameter: Cladding diameter 80-150μm, coating diameter 100-1000μm
Reducing Size: Coating layer beneath 250μm: 8-16mm, coating layer 250-1000μm: 16mm
In-built Lighting: Straightforward to function at evening
Pressure Take a look at: Customary 2N

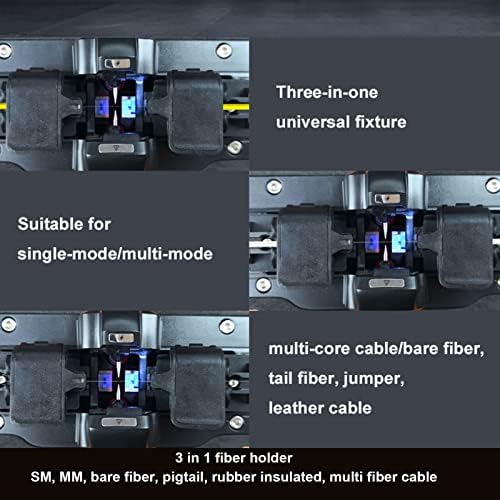

Fiber Holder: 3 in 1 fiber holder, appropriate for single mode, multi mode, multi core, fiber, naked fiber, pigtail, patch cable, leather-based cable
Magnification: 300 instances (X axes or Y axes) 150 instances (X axes and Y axes synchronization)
Show: 5 inch TFT color show
Splicing Mode: Typical or excessive exact splicing
Knowledge Storage: Splicing file storage synchronization to cell phone, server to cloud storage limitless
In-built Battery: 5200mAh excessive capability lithium battery, charging time is 3.5 hours, could be constantly welded and heated for 160 instances (inbuilt)
Energy Provide: AC 100-240V 50/60Hz, output DC13.5V 4A, the present energy mode could be recognized, actual time detection of battery capability
Working Temperature: 0℃ to 40℃,
Working Humidity: <95percentRH (no condensation)
Warmth Shrinkable Sleeve: Approx. 60mm/2.4in, 40mm/1.6in

Package deal Listing:
1 x Software Field
1 x Reducing Knife
2 x Electrode Rod
1 x Leather-based Cable Pliers
1 x 3 Port Pliers
1 x Strap
1 x Hand Strap
1 x Energy Adapter
1 x Alcohol Bottle
1 x Brush
1 x Handbook
1 x Naked Fiber for Discharge Calibration
2 x Key
1 x Energy Cable
3 x Hex Wrench

Vast Vary of Use: Undertake 3 in 1 fiber optic holder, appropriate for single mode, multi mode, rubber insulated, multi core optical cables, naked fiber, pigtail, patch cable, leather-based cable.
Good Welding Efficiency: This splicer offers 8s quick welding and 18s quick heating, has low welding loss, which is 0.025dB for SM cable, 0.01dB for MM cable, 0.04dB for DS or NZDS cable.
Excessive Decision Show: This splicer is supplied with 5in TFT color display show with excessive decision, and the focusing magnification is as much as 300 instances, for extra handy and exact welding.
10 Languages: The interface can swap 10 languages freely, that are English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic.
In-built Lighting and Battery: The machine is inbuilt lighting, handy for working at evening, and with giant capability battery, which ensures very long time secure working.
