ANYCUBIC Mega Professional 3D Printer Printing Laser Engraving Contact Display Printing TPU Filament Twin Gear Extruder 3D Laser Printer

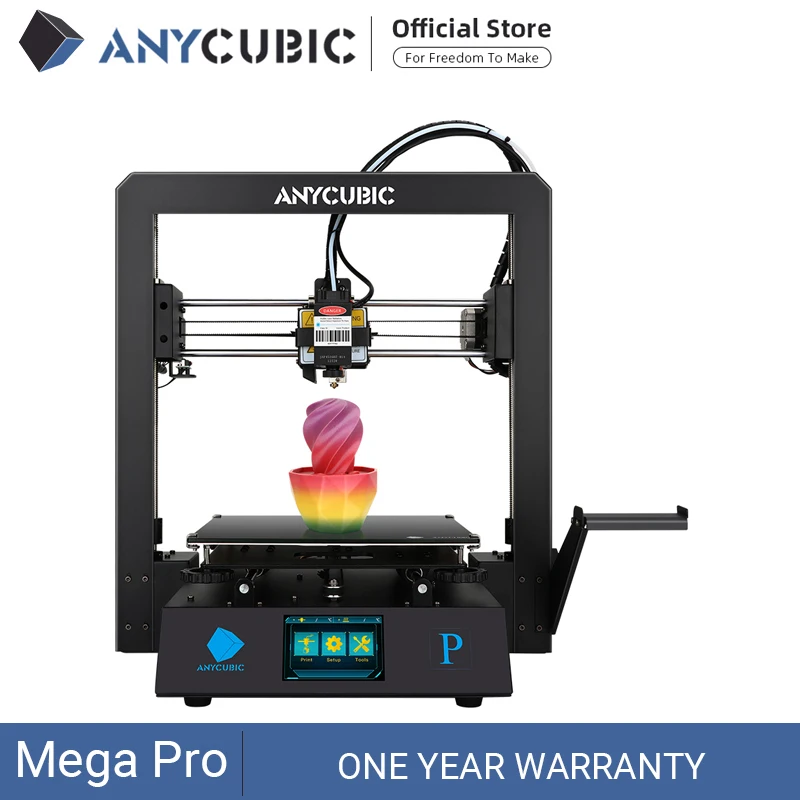

ANYCUBIC Mega Professional

* Versatile 2-in-1 3D Printer.

* Excessive-precision printing delivers glorious print high quality.

Technical Specification

3D printing:

Printing Know-how: FDM (Fused Deposition Modeling)
Construct Quantity: 210×210×205 mm³
Layer Decision: 0.05-0.3 mm
Positioning Accuracy: X/Y- 0.0125mm；Z- 0.002mm
Extruder Amount: Single
Nozzle Diameter: 0.4 mm
Print Pace: 20~100mm/s (steered 60mm/s)
Journey Pace: 100mm/s
Supported Supplies: PLA, TPU, and many others
Ambient Working Temperature: 8°C – 40°C
Operational Extruder Temperature: max 260°C

Laser engraving:

Picture format: bmp
Engraving dimension: 220×140 mm²
Engraving mode: bitmap
Pixel dimension: 0.05-0.4mm (steered 0.1mm)
Really helpful laser depth: Brown paper – 15%；Wooden – 25%
Laser top: 1-100mm（steered 50mm）
Mirror picture: the default worth is advisable
Rated energy: 1500mw
Supported Supplies: Leather-based, Paper, Wooden, and many others

Software program:

Slicer Software program: Cura
Software program Enter Codecs: .STL, .OBJ,.DAE, .AMF
Software program Output Codecs: GCode
Connectivity: SD Card; USB cable(skilled customers solely)

Electrical:

Enter score: 110V-220V AC, 50/60Hz

Bodily Dimensions:

Printer Dimensions: 405X410X453mm³
Weight: ~15kg

1.Multi-function 3D Printer

* 2 in 1 machine of 3d printing and laser engraving.

* A number of capabilities to unleash your artistic potential.

2. Laser Engraving

* Excessive-precision laser engraver conjures up you to create in additional methods
( It’s able to engraving on wooden, paper, leather-based,and many others )

*Ornament
*Personalised customized
*Artwork design

3.TMC2208 Quiet Drive

Silence the 3D printer. Considerably cut back the noise when printing.

4. Double Gear Extrusion Mechanism

* Optimized extrusion torque and path orientation.
* Suitable with versatile filaments like TPU.
* Stronger torque
* Route optimization
* TPU filament

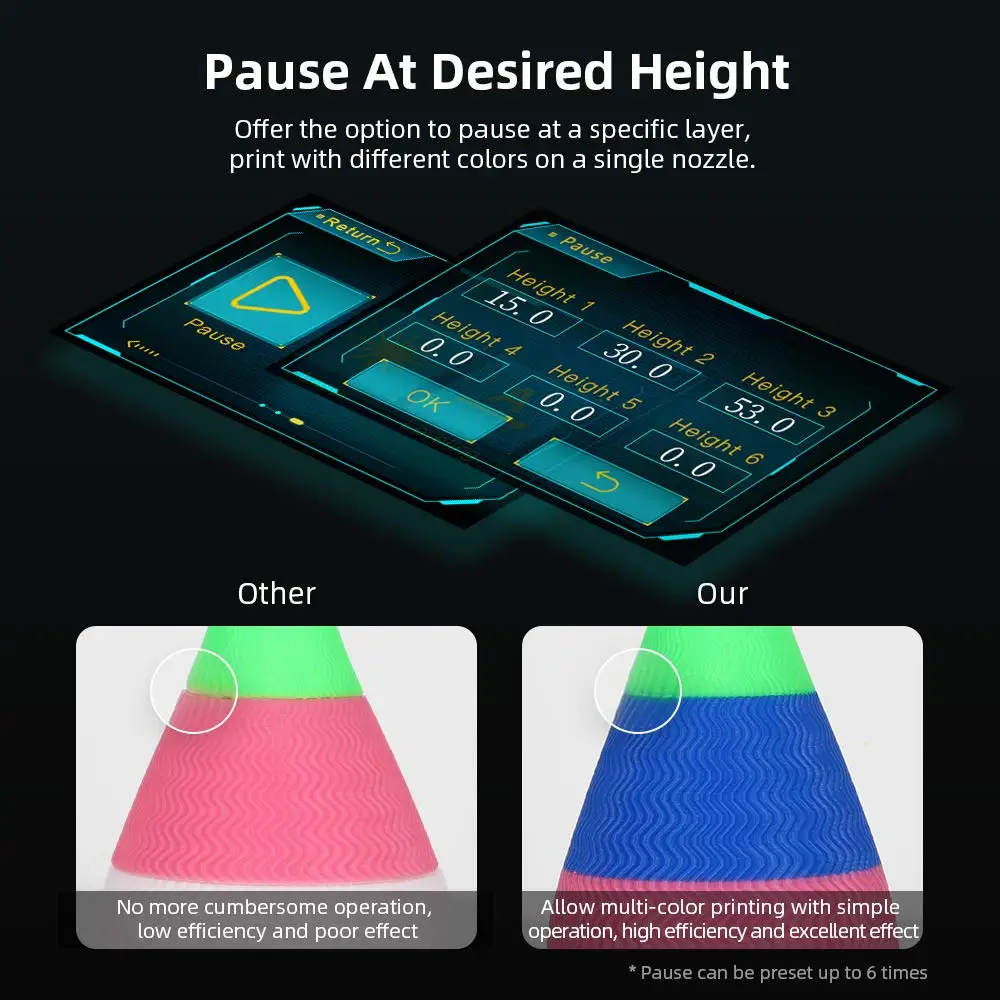

5. Pause At Desired Peak

* Supply the choice to pause at a particular layer, print with totally different colours on a single nozzle

* Earlier multi – colour printing: cumbersome operation, low effectivity and poor impact

* Multi – colour printing with sensible Pause: easy operation, excessive effectivity and nice impact

*Pause as much as 6 occasions

6. Excessive High quality Energy Provide For Superior Security Efficiency

1.Get hold of a number of certifications together with UL certification, CE marking, and FCC certification.

2.Assist 110-220v vast voltage, relevant to most components of the world, no want for shift between 110v and 220v

7. Full Inflexible Stable Metallic Body & Modular Design

Sturdy building enhances the steadiness when printing which results in the extremely detailed prints. With modular design, It may be assembled in just some minutes.

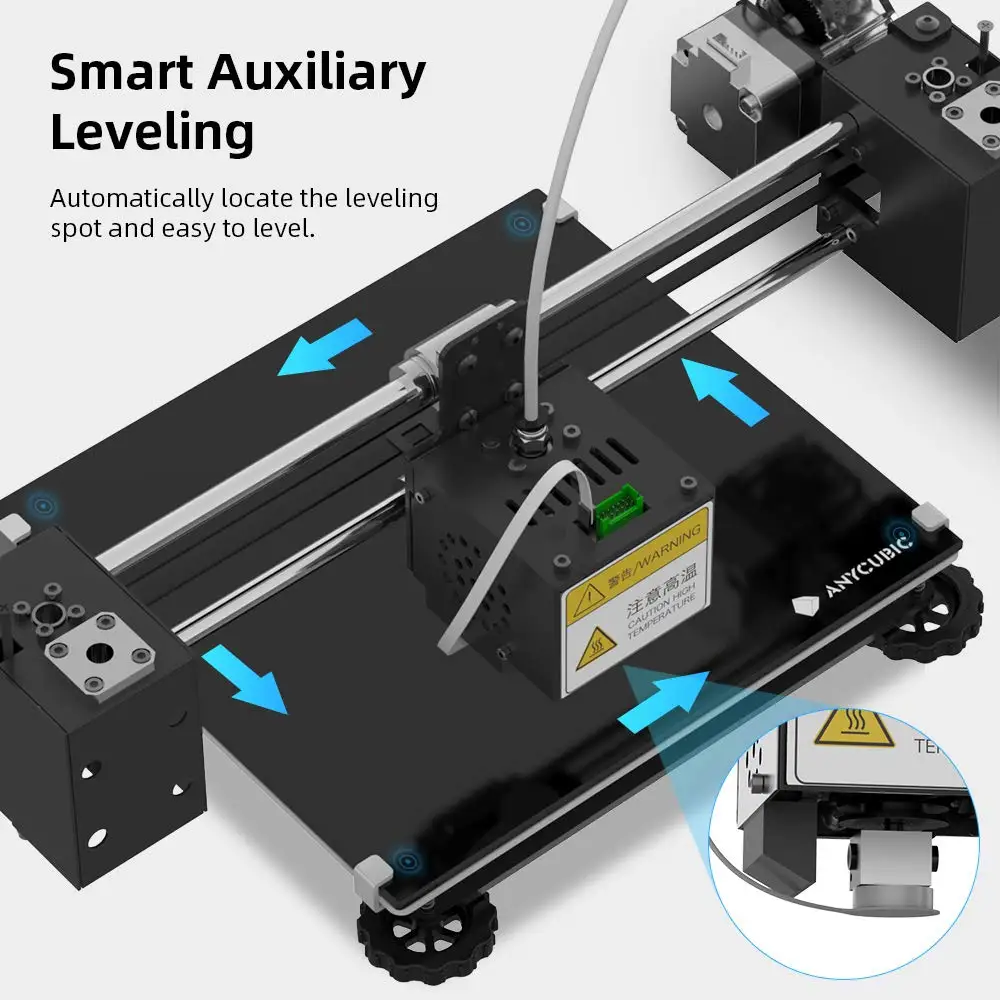

8. Sensible Auxiliary Leveling

Rapidly find the corners of the print platform throughout leveling.

9. Upgraded Mattress Leveling Knobs

Massive leveling knobs with ergonomic design make for a simpler guide leveling.
( Massive diameter, labor-saving, anti-skid )

* 60% much less effort than the smaller one
* The diameter is 2 occasions bigger than the earlier model

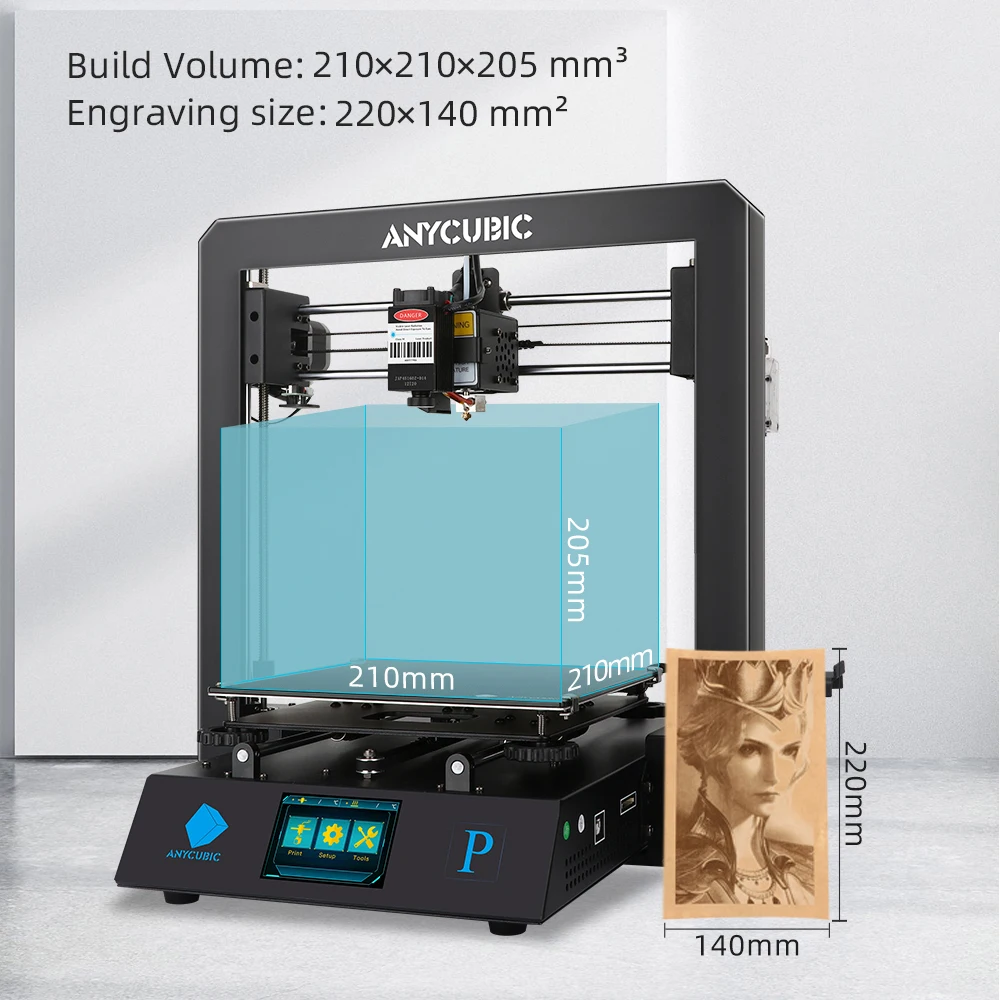

10. Massive Construct Quantity For Limitless Creativity

The print dimension is massive in each print modes.
* Construct quantity:210×210×205 mm³
* Engraving dimension:220×140 mm²

11. Auto-resume From Energy Loss

Simply proceed printing from energy failure or pause, saves time and filament.
*Energy loss
*Proceed printing

12. Bundle Listing
