Arducam 1080P Low Mild WDR Extremely Extensive Angle USB Digital camera Module for Pc, 2MP CMOS IMX291 160 Diploma Fisheye Mini UVC USB2.0 Webcam Board with Microphone, 3.3ft Cable for Home windows Linux Mac OS

Value: $49.99
(as of Jul 09,2022 17:29:25 UTC – Particulars)

Product Description

APPLICATIONS:

Video convention
Dwelling video surveillance system
Day&night time low gentle imaginative and prescient safety digital camera system
Sprint cam
Monitoring 3D printer
Robotic and machine imaginative and prescient
…

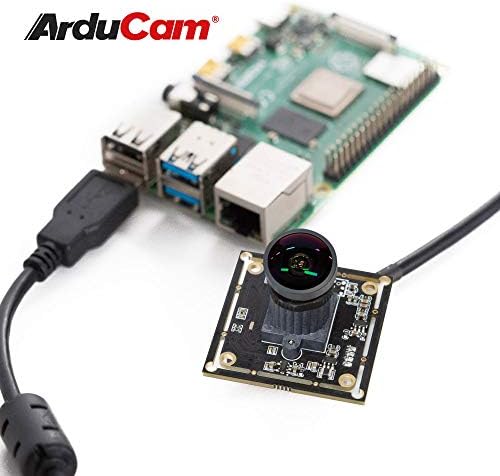

Arducam 2MP Low Mild USB2.0 Digital camera

160 diploma (diagonal)

Based mostly on 1/2.8” 2MP IMX291 picture sensor, extremely extensive angle, UVC compliant USB 2.0 cameras.

No additional drivers wanted, the native UVC drivers of Home windows, Linux and Mac shall be appropriate with this digital camera.

Superior low gentle characteristic, shot sharp pictures even at night time.

Constructed with a single microphone, seize video with audio.

NOTE

This digital camera helps MJPG YUV and h264 encoder format. It can expose two video nodes.
You’ll be able to run instructions proven as beneath to test every node :
v4l2-ctl -d 0 –list-formats-ext
v4l2-ctl -d 1 –list-formats-ext

SPECIFICATIONS

Digital camera

– Sensor: 1/2.8” IMX291

– Decision: 2MP 1945H x 1109V

– Information Format: MJPG/YUY2/H.264

– Body Charge: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.

– Dynamic Vary: 80DB

– Minimal Illumination: 0.001Lux

Lens

– Area of View (FOV)：D= 160°

– Lens Mount: M12

– Focusing Vary: 6.56ft (2M) to infinity

– IR Sensitivity: Integral IR filter, seen gentle solely

Performance and Compatibility

– Auto Managed Options: Saturation, Distinction, Acutance, White steadiness, Publicity.

– Audio: single microphone

– System Compatibility: Home windows, Linux, and Mac with UVC (Android compatibility: contact Arducam for help.)

Energy

– Energy Provide: DC 5V

– Working Present: MAX 300mA

Bodily

– Working Temp.: -4°F~158°F (-20°C~+70°C)

– Dimension: 38mmx38mm

– Cable Size: 3.3ft (1M)

NOTE

This digital camera helps MJPG YUV and h264 encoder format. It can expose two video nodes.

You’ll be able to run instructions proven as beneath to test every node :

v4l2-ctl -d 0 –list-formats-ext

v4l2-ctl -d 1 –list-formats-ext

Sensor
/
IMX179
IMX291
IMX298
IMX179
IMX291

Decision
/
8MP 3264(H)x 2448
2MP 1920(H)x1080(V)
16MP 4656(H) x 3496(V)
8MP 3264(H) x 2448(V)
2MP 1947(H) x 1109(V)

Area of View
20°-180°
D=74.6°
D=100°
H= 60°
H= 105°
86°-28°(H)

Board Measurement
/
38x38mm
38x38mm
38x38mm
38x38mm
50mmx50mmx80mm

HD Decision and Low Mild: This digital camera adopts the 2MP 1/2.8” IMX291 Shade COMS sensor with an 80DB extensive dynamic vary, can seize the minimal illumination 0.001Lux.
Extremely Extensive Angle: Prime quality 160 diploma tremendous extensive view angle (diagonal) M12 lens with IR filter.
Seize Video with Audio: Excessive body charges, H.264 30fps@1920×1080; MJPG 30fps@1920×1080; YUY2 30fps@640x 480; Audio, single microphone.
Plug&Play: UVC-compliant, help Home windows XP/7/8/10, Linux, and Mac OS, simply join the digital camera to PC, laptop computer or Raspberry Pi with the USB cable with out additional drivers to be put in.
Purposes: this tiny digital camera board will be put in in essentially the most hidden and slim place for a house video surveillance system, day&night time low gentle imaginative and prescient safety digital camera system, dashcam or different machine imaginative and prescient utility.
