Pc PC Energy Provide Tester 20/24 4/6/8 PIN for ATX, ITX, BTX, PCI-E, SATA, HDD, IDE with Aluminum Alloy Enclosure 1.8″ LCD ATX Energy Provide Tester

Value: $14.99 - $13.99
(as of Jul 10,2022 04:47:44 UTC – Particulars)

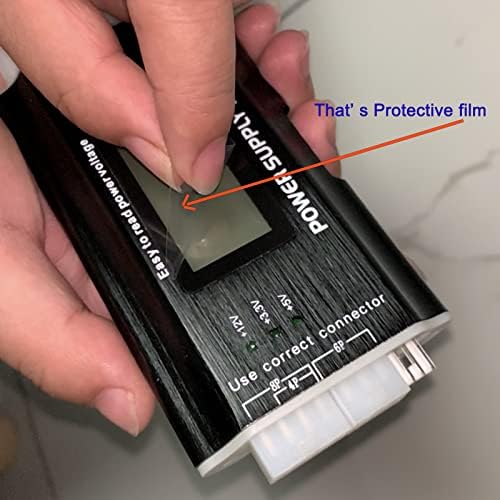

Be aware: There’s a protecting movie on the display, not scratches. In the event you thoughts these scratches, please tear off the protecting movie.
Operation Technique:
1. Plug energy provide 24PIN or 20PIN and P4, P6 or P8 into the corresponding jack of the facility tester.
(if Insert the 20pin or 24pin connector, tester alarms and shows “LL”, it means you haven’t inserted the 4P/6P/8P connector. )
  2. Activate the facility provide, you’ll hear “didi” ring. If all teams of information should not flashing, the facility provide output voltage is regular.

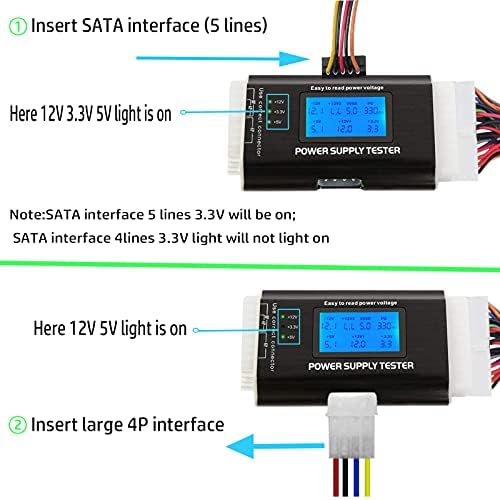

    3. The voltage of the IDE / SATA / P6 / P8 interface is displayed by the three indicators on the left facet of the facility tester.
  Regular: (+ 12V, + 3.3, + 5V)  all mild will likely be on.
Defective: No mild is on.
4.If a sure voltage sign just isn’t detected, or the detected voltage worth exceeds the conventional worth, a protracted “DiDi” buzzer will likely be emitted; if the corresponding voltage worth or PG additionally flashes, it signifies a fault supply.

  Be aware:
1.The facility provide tester just isn’t supported Sizzling Plug!
2. The pc energy provide tester powered by 20/24 Pin interface,with out battery.
3.If there isn’t a energy from 20/24 PIN interface, the display won’t mild on.
4. There’s a protecting movie on the display, Not Scratches!
5. Please don’t plug the interface within the incorrect place or reverse, which can trigger the facility tester to smoke or injury your energy provide.

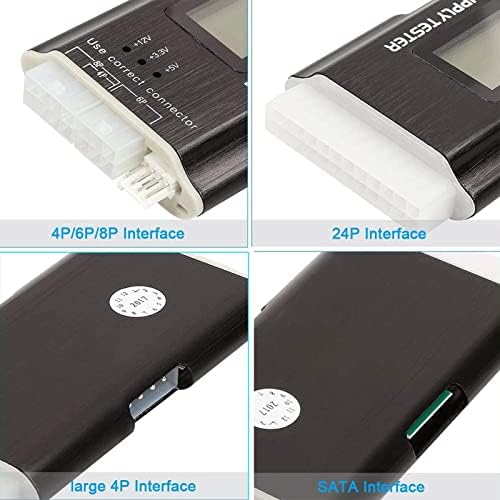

【ATX Energy Provide Tester】SAMFINTON laptop energy provide tester assist 20-pin / 24-pin / HDD / Floppy 4-pin / PCI-e 6-pin / 4-pin / 8-pin / SATA connectors.
【Aluminum Alloy Enclosure】Good thermal conductivity & corrosion Resistance,with a excessive  power housing. The pc energy tester is extra sturdy than the plastic case available on the market.
【Sensible PC Energy Tester】The 1.8inch LCD show intuitive and correct show outputted Voltages (+/-0.01V), computerized fault alarm.
【Regular】Activate the facility provide, will hear “DiDi” ring, If all teams of information should not flashing, the facility provide output voltage is regular.
【Defective】If a sure voltage sign just isn’t detected, or the detected voltage worth exceeds the conventional worth, a protracted “beep” buzzer will likely be emitted; if the corresponding voltage worth or PG additionally flashes, it signifies a fault.
