DSLRKIT 6 Ports 4 PoE Equipment (Change + PoE Splitter) 18V-55V to 12V DC Buck converter

6 Ports 4 PoE Equipment (Change + PoE Splitter)
Enter DC18V~55V energy provide, Output DC12V 1.3A
(Energy provide not included)

It is a low-cost and extremely dependable POE Equipment which is appropriate for all IP Cameras and IP cellphone with 12V DC port and RJ45 community Port,together with Hikvision,DAHUA and different IP Digicam manufacturers,irrespective of supported 802.3af PoE Units or unsupported None-POE gadgets,
your gadget should have 12V DC port and RJ45 community Port are required situation, and the facility doesn’t exceed 15Watt(12v1.3a).

permitting the utmost cable size as much as 100 meters. Meantime the enter voltage has an excellent tolerance to DC18V~55V.

The PoE package Consists of an 6-port 4PoE 10/100Mbps-T Ethernet passive (unsolicited) PoE swap and 4pcs PoE splitters with DC buck to energy non-PoE gadgets. Please consult with the next images for utilization:

This package doesn’t embody an influence adapter. You should use any energy provide between DC18V and 55V to attach it, however take note of the facility output polarity [inside positive (+), outside negative (-)],the facility enter socket on the swap must be appropriate for DC Port of measurement 5.5×2.1mm. and whether or not the output energy is sufficient for IP CAMERAS to make use of.

The POE splitter of this package integrates an 18V~60V DC Buck converter,plus the vast voltage passive POE swap is able to inputting DC12V~55V,so DC18V~55V energy adapter is allowed to energy the POE swap of this package,if situation is permitted,we suggest inputting increased voltage(DC48V~55V)to scale back energy loss within the community cable, thereby permitting longer community cable or bettering the facility provide atmosphere of the gadget,particularly the community cable is extraordinarily lengthy.

Some strategies of choosing energy adapters for this POE package.
1.please use at the least 18V energy adapter when the community cable size just isn’t extra than30 meters.
2.Please use at the least 24V energy adapter when the community cable size just isn’t greater than 50 meters.
3. The community cable is greater than 50 meters in size. It’s endorsed to make use of 48V-55V energy adapter.
4.For those who decide the community cable in poor high quality,attempt your finest to extend the enter voltage to make the facility provide system work usually,however don’t exceed DC55V.

Please be seen that there are following disadvantages of different 12V or 15V low voltage POE options:
1.The low voltage transmission within the community cable trigger voltage really provided to the digicam to be too low as a result of giant resistance, leading to inadequate energy provide of the digicam, unstable operation, crash, and so on.
2.As a result of giant resistance of the low voltage on the community,the size of the community cable is usually restricted to much less 30meters.
3.The poor community cable high quality may cause the facility provide scarcity.

This POE swap Options:

• 6 x 10/100Mbps Auto-negotiation Quick Ethernet RJ-45 ports with 4-Ports PoE operate
• Change Energy Hyperlink RJ45 Ethernet Ports Pin: Information 1,2,3,6 , Energy +(4,5),-(7,8)
• Midspan Mode-B Unsolicited Energy(4,5+/7,8-)
• Helps 12~55V DC energy provide, Energy DC port 5.5 x 2.1mm,inside optimistic (+) outdoors adverse (-)
• Every port helps auto MDI/MDIX, so there isn’t any want to make use of cross-over cables.
• Full/half duplex switch mode for every port.
• Product Dimensions 125mm W x 68mm D x 32mm H

Be aware: Gigabit (1000Mbps) ethernet gadget”for instance router” Please don’t entry “POE swap Energy Hyperlink port” this may harm your gadget.
Solely connecting to the router through the UpLink port

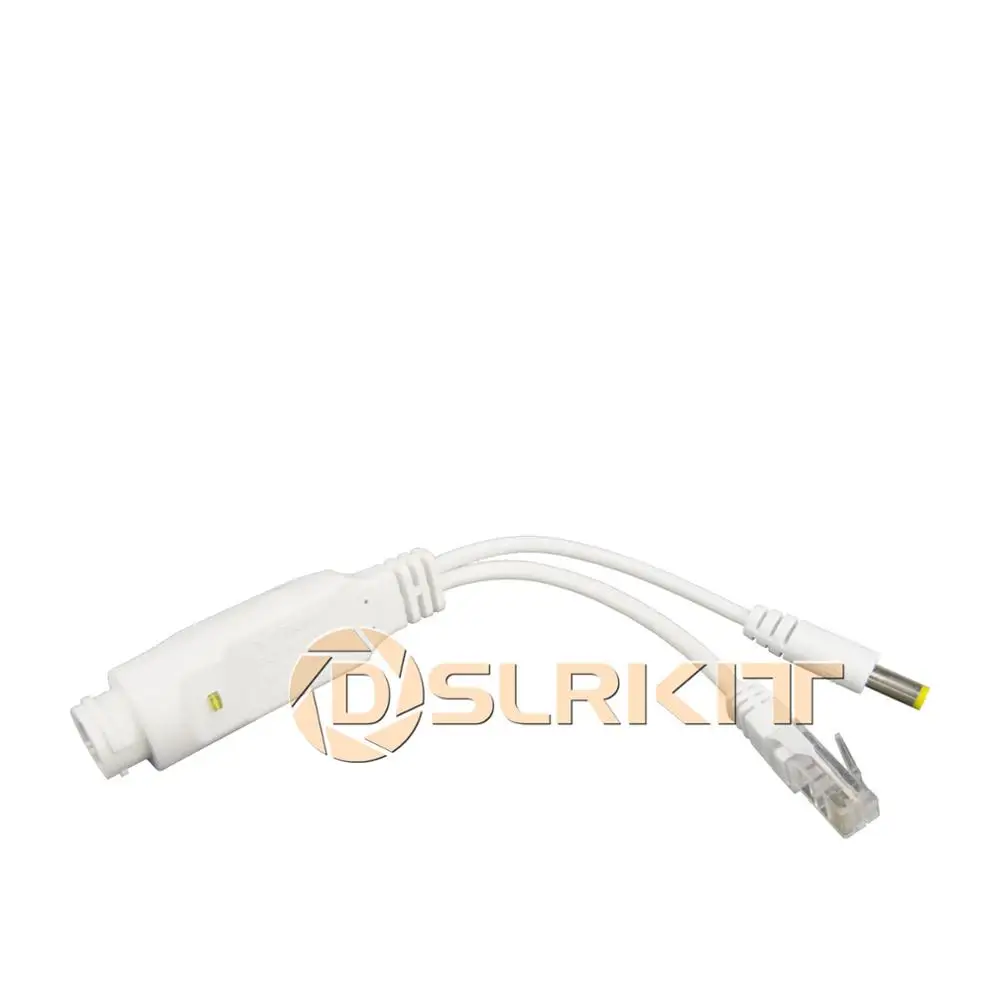

The DC Buck passive PoE Splitter. with following operate:
1,Switch the info sign enter from RJ45 socket 1236pins through the opposite facet RJ45 connector to the IP digicam.
2,Transfering the DC18-60V energy enter from RJ45 socket 4578pins(45+, 78-) which the voltage can be lowered to 12V,then via the opposite facet DC port(5.5 x 2.1 mm) into the IP digicam.

Enter / Output Specs :
DC Enter Voltage Max 60V DC
DC Enter Voltage Min 18V DC
DC Output Voltage 12V DC
Max Output Present 1.3A Max.
Energy Output DC Jack 5.5mm x 2.1mm

RJ45 Information PIN: 1/2 & 3/6
RJ45 Energy PIN: 4/5+ & 7/8-

Ethernet Information fee 10/100 Mbp
Ethernet Cable TIA/EIA 568 Cat.5
Ethernet Cable Connector RJ-45

Ge neral Specs:
Working Temperature -10oC ~ +60oC
Storage Temperature -20oC ~ +70oC
Humidity As much as 90%
Weight 58 g
Size: 240mm complete size (together with connectors),Excessive-quality oxygen-free copper Cable

Merchandise Included:

DC18-60V to 12V DC Buck Passive PoE Splitter Cable(with Waterproof accent) x4

DSLRKIT MID4P2U 6pots 4PoE Passive PoE swap x1
(Energy provide not included)
