DSLRKIT Gigabit Raspberry Pi 4 4B 3B+ 3B Plus PoE Equipment (HAT+ Injector) Energy Over Ethernet

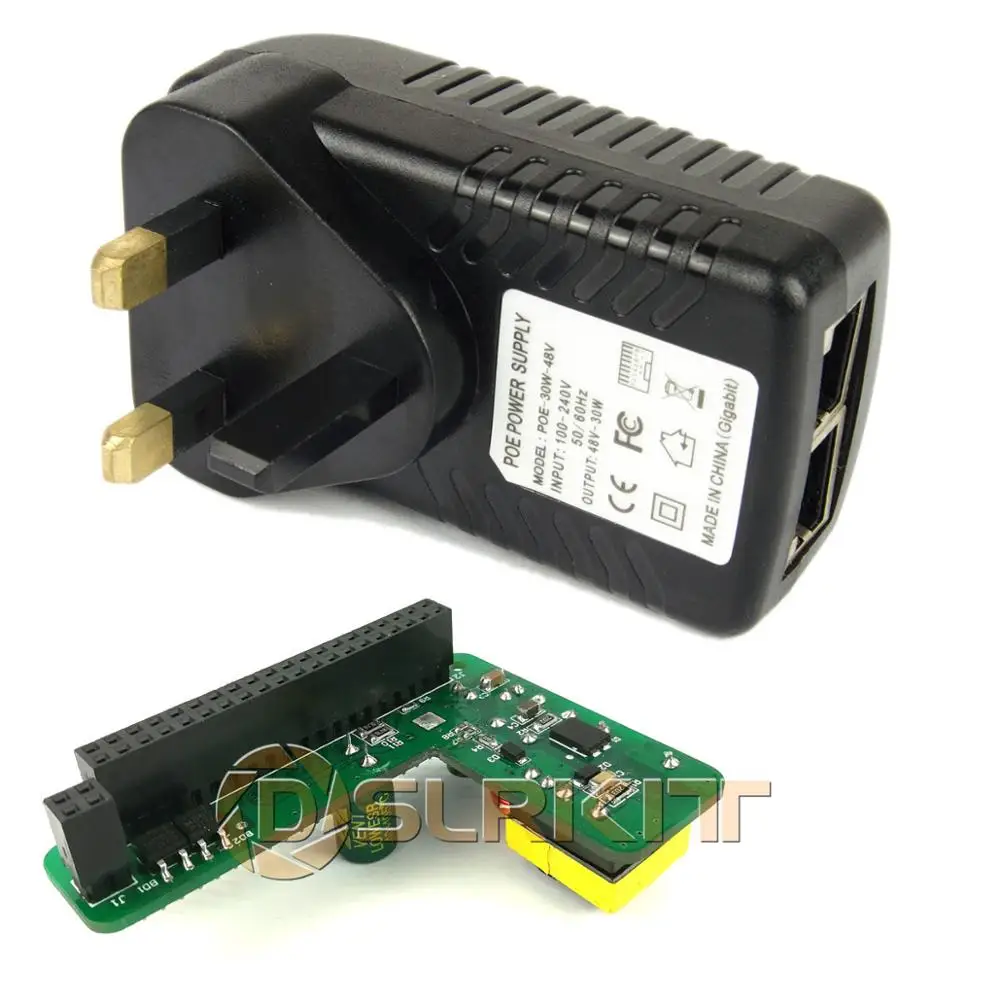

Raspberry Pi 4 4B 3B+ Gigabit PoE Equipment

(12.5watt PoE HAT + Gigabit PoE Injector)

for Raspberry 4B 3B+(3B Plus)

PoE Injector Specification:

Suitable Requirements: 802.3af and 802.3at
Suitable 10/100/1000 Ethernet

CAT5 Ethernet Pin Utilization: Information: 1,2,3,4,5,6,7,8 Energy: +(4,5),-(7,8)
LED: Energy
Voltage Enter: AC 100-240 V 50/60Hz
Voltage Output: DC48V 30watt
Dimension : 85 x 47 x 54mm
Weight — 140g

Raspberry Pi 4B 3B+ PoE HAT Specification:

Compliant IEEE802.3af PoE normal

Help the IEEE 802.3af/802.3at the Energy over Ethernet PoE Swap
Help 48V~57V Passive Energy Over Ethernet PoE Swap
Help 48V~57V Passive Energy Over Ethernet PoE injector

Help Energy sourcing gear (PSE) Energy Pin:assist each 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Isolation: 2.5kV
Energy Enter: DC38~57V
Energy Output: DC5V 2.5A(12.5watt)

Operation Temperatue:-10℃ ~ 75℃
Storage Temperature:-30℃ ~ 80℃

Merchandise Included:

Raspberry Pi 4B 3B+ 802.3af(5V 2.5A) PoE Hat x1
10/100/1000 Gigabit Ethernet PoE Injector x1 (US plug,UK plug,AU plug,EU plug)

(please go away me a message concerning the plug sort you want after your cost)
