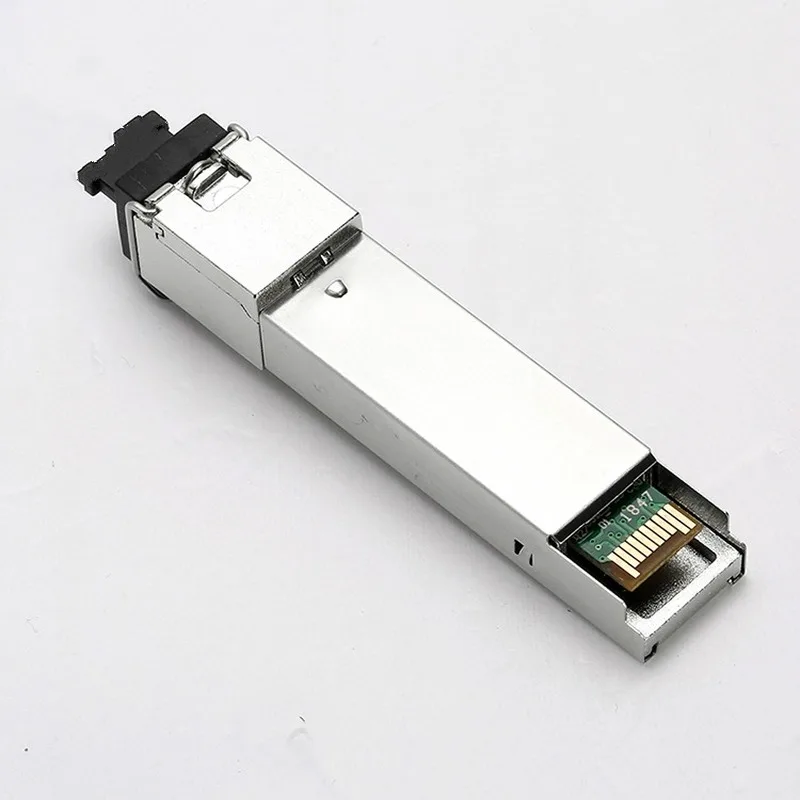

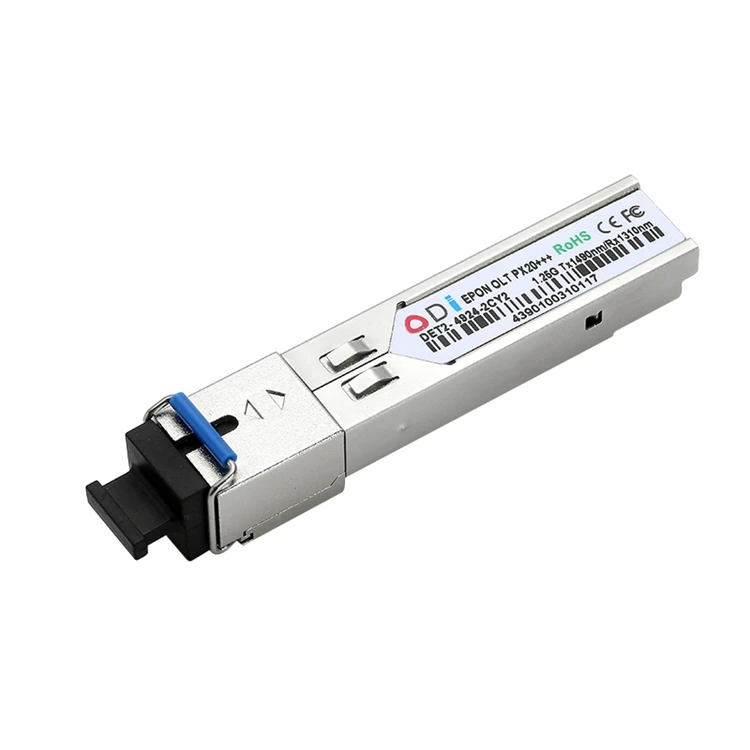

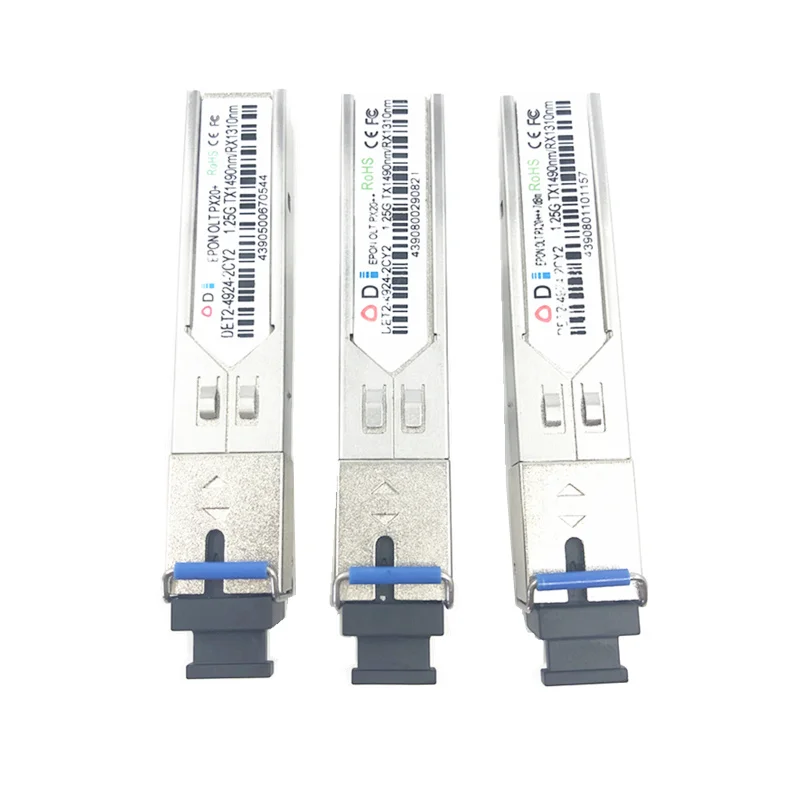

EPON OLT optical transceiver FTTH PX 20+ 20++ 20+++ SFP solutionmodule for OLT1.25G 1490/1310nm 3-7dBm Ethernet SC OLT
$25.56
EPON OLT PX 20+ PX20++ PX20+++ SFP optical transceiver module for FTTH resolution
Product Options:
1.25Gb/s serial optical interface compliant to
802.3AH specs small kind issue
pluggable module “SFP”
1490 nm DFB transmitter, 1310 nm APD picture
detector BURST receiver
2-wire interface for administration specs
compliant with SFF 8472 digital diagnostic monitoring
interface for optical transceivers Working case temperature: 0 to 70 °C or-40 to 85 °C
All-metal housing for superior EMI efficiency Low energy consumption
Value efficient OLT resolution,
RoHS compliant
Product Description
Absolute Most Scores
| Parameter | Unit | Min | Typical | Max |
| Energy Provide Voltage | V | 0 | 3.6 | |
| Storage Temperature | ℃ | -40 | 85 | |
| Working Case Temperature | ℃ | -40 | 85 | |
| Working Relative Humidity | % | 5 | 95 | |
| RX Enter Common Energy | dBm | 0 | -7 |
RECOMMENDED OPERATING ENVIRONMENT
| Parameters | Image | Min. | Typical | Max | Unit |
| Energy Provide Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
| Energy Provide Present | Icc | 350 | mA | ||
|
Working Case
Temperature |
TI | -40 | 25 | 85 | ℃ |
ABSOLUTE MAXIMUM RATING
| Parameters | Image | Min | Max | Unit |
| Energy Provide Voltage |
V CC |
0 | 3.6 | V |
| Storage Temperature | Tc | -40 | 85 | ℃ |
| Working Case Temperature | TI | -40 | 85 | ℃ |
| Relative Humidity | RH | 5 | 95 | % |
| RX Enter Common Energy | Pmax | -7 | dBm |
Specification: EPON OLT optical transceiver FTTH PX 20+ 20++ 20+++ SFP solutionmodule for OLT1.25G 1490/1310nm 3-7dBm Ethernet SC OLT
|
