Fiber Fusion Splicer, 9 Seconds Splicing 26 Seconds Heating 5 Inch LCD Show Fusion Splicer Machine Computerized Optical Fiber Cleaver Fiber Optic Fusion Splicer for Optical Fiber Cable Tasks(US)

Worth: $981.98
(as of Jul 11,2022 02:05:16 UTC – Particulars)

Specification:

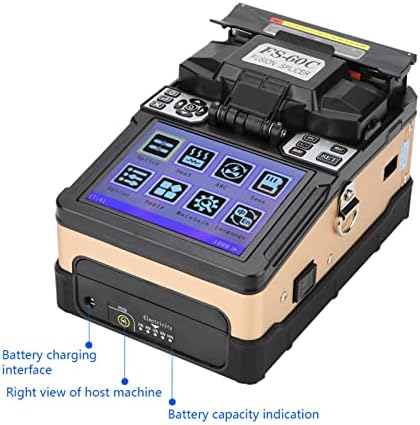

Mannequin: FS-60C
Relevant optical fiber: SM(G.652&G.657), MM(G.651), DS(G.653), NZDS(G.655) and self outlined optical fiber sorts
Splicing loss: 0.02dB(SM),O.OldB (MM) 0.04dB (DS/NZDS)
Return loss: Over60dB
Typical splicing period: 9 seconds
Typical heating period: 26 seconds (configurable heating time and adjustable heating temperature )
Optical fiber alignment: Exact alignment, fiber core alignment, cladding alignment
Stress check: Normal 2N
Amplification issue: 300 instances (X axis or Y axis)
Warmth shrink bush: 60mm,40mm and a collection of miniature bush
Show: 5.0 inches TFT coloration LCD show    Reversible, handy for bi-directional operation
Exterior interface: USB interface, handy for information obtain and software program improve
Splicing mode: 17 teams of operation modes
Heating mode: 9 teams of operation modes
Splicing loss storage: 5000 newest splicing outcomes are saved within the built-in storage.
Constructed-in battery: Helps steady splicing and heating for not lower than 200 instances
Lighting: Handy for optical fiber set up within the night
Dimension: 20.5*14*12.3cm/8.1*5.5*4.8in
Weight:  Approx.6910g/243.7oz

Bundle checklist:
1 x Fusion Splicer
1 x Fiber Cleaver
1 x Fiber Stripper
1 x Rubber-insulated Wire Stripping Pliers
1 x Seat
1 x Brush
1 x Tweezers
1 x Mud Blower Ball
1 x Bottle
1 x Energy Adapter
1 x Energy cable
1 x Size Fixing Stripping System
1 x Chilly Chopping Body
1 x Carrying Strap
1 x Transit Case
1 x Consumer guide
2 x wrench

【USES】The fiber optic fusion machine is especially used for the connection of optical fibers, which will be additional related with peculiar optical fiber cables, jumpers and a number of single mode, multi mode and dispersion shifted quartz optical fibers with a cladding diameter of 50um-150um. Preserve it clear and defend it towards robust vibrations and shocks.
【WIDE APPLICATION】The fiber optic splicing machine is particularly appropriate for optical fiber and cable tasks, upkeep scientific analysis and educating in telecommunications, radio and tv, railway, petrochemical, electrical energy, army and public safety and different communications fields.
【OPTICAL FIBER PARAMETER】Optical fiber diameter: cladding diameter 80-150um, coating layer diameter 100-1000um. Chopping size: coating layer under 250um: 8~ 16mm; coating layer 250-1000 um: 16mm. optical fiber clamp: multi-function clamp for naked fiber, tail fiber, jumpers, leather-based line; altering clamp relevant for sc and different connectors for quite a lot of fttx optical fiber and cable.
【POWER SUPPLY】The inbuilt lithium battery 11.8v provides the facility, charging time$3.5h; exterior adapter, enter ac100-240v50/60hz, outputdc13.5v/4.81a. energy saving: 15% of the facility of the lithium battery will be saved in a typical setting. working setting: temperature:-10~+50t), humidity : <95percentrh (no condensation), working altitude: 0~5000m; max. wind velocity: 15m/s.
