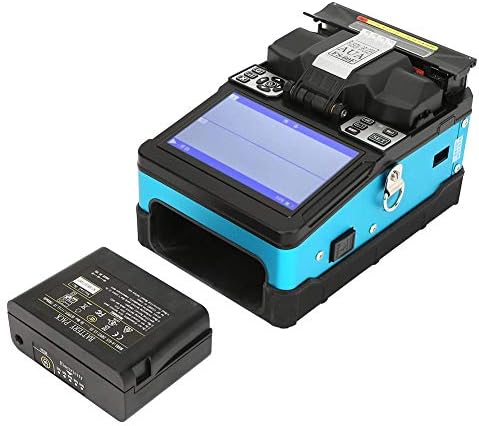

Fiber Fusion Splicer, 9S Splicing 26S Heating 5 Inch Show Fusion Splicer Machine Computerized Optical Fiber Cleaver Fiber Optic Fusion Splicer with USB Interface for Optical Fiber Cable Initiatives(US)

Value: $976.62
(as of Jul 11,2022 01:36:45 UTC – Particulars)

Specification:
Relevant Fiber: SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655) and Customized Fiber Sort
Connection Loss: 0.02dB (SM).0. 01dB (MM) 0. 04dB(DS/NZDS)
Return Loss: Higher Than 60dB
Typical Connection Time: 9 Seconds
Typical Heating Time: 26 Seconds (heating time could be set, heating temperature could be adjusted)
Reducing Size: Coating Layer Beneath 250um: 8~16mm; Coating Layer 250~1000um: 16mm
Pressure Check: Commonplace 2N (Optionally available)
Warmth Shrink Tubing: 60mm, 40mm and a collection of Miniature Sleeves
Exterior Interface: USB Interface for Straightforward Knowledge Obtain Software program Replace
Splicing Mode: 17 Teams of Utilization Modes
Heating Mode: 9 Teams of Utilization Modes
Connection Loss Storage: 5000 Newest Connection Ends in the Constructed-In Reminiscence
Measurement: Approx. 205 * 140 * 123mm / 8.1 * 5.5 * 4.8in

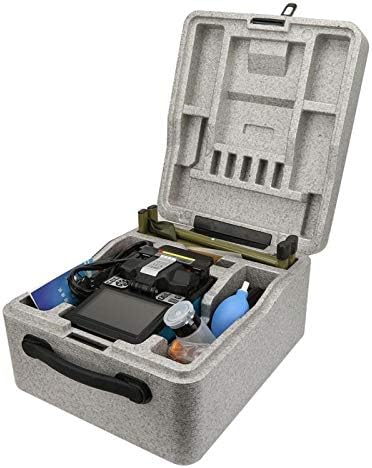

Package deal Checklist:
1 * Fiber Fusing Splicer
1 * Battery Pack
1 * Fiber Cutter
1 * Leather-based Line Stripping Pliers
1 * Three Miller Pliers
1 * Plastic Fastened Size Gadget
1 * Charging Adapter
1 * Energy Twine
1 * Hand Strap
1 * Alcohol Bottle
1 * Blowing Balloon
1 * Brush
1 * Tweezers
1 * Stool
1 * Product Certificates
1 * Consumer Handbook
1 * Hanging Fiber Tray
1 * Desiccant

【USES】The fiber optic machine has 5.0 inch tft colour liquid crystal display show, magnification: 300 instances (x or y). And, the fiber optic splicing machine could be primarily used for the connection of optical fiber, and could be related to a wide range of quartz fiber comparable to single mode, multi mode and dispersion displacement with bizarre sheath cable, jumper and cladding diameter of 80um-150um.
【WIDE APPLICATION】The fiber splicing equipment is appropriate for fiber optic cable engineering, upkeep analysis and educating in telecommunications, broadcasting, railway, petrochemical, electrical energy, army, public safety and different communication fields. And, working atmosphere: temperature: -10~50℃; temperature: <95% rh (no condensation). Working altitude: 0~5000m, most wind velocity: 15m/s.
【POWER SUPPLY】Inbuilt battery: steady welding, heating a minimum of 200 instances. Energy provide: inbuilt lithium battery 11.1v energy provide, charging time ≤3.5 hours; exterior adapter, enter ac100~240v, 50/60hz, 1.5a, output dc13.5v/4.81a. energy saving operate: 15% lithium battery energy could be saved in a typical atmosphere.
【OPTICAL FIBER PARAMETER】Fiber alignment: superb alignment, core alignment, cladding alignment. Fiber diameter: cladding diameter 80~150um, coating diameter 100~1000um. Fiber fixture: multi-functional fixture for naked fiber, pigtail, jumper, and leather-based wire; substitute fixture can be utilized with sc connectors for numerous fttx fiber optic cables.
