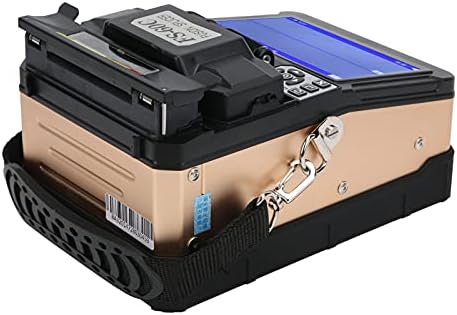

Fiber Optic Fusion Splicer, Fiber Optic Splicing Machine With 5Inch Coloration Display 9s Splicing 26s Heating With USB Interface Quick Splicing Pace, 5800mAh Battery(US PLUG)

Value: $1,249.19
(as of Jul 11,2022 01:08:28 UTC – Particulars)

Specification:
Merchandise Sort: Fiber Fusion Splicer
Fiber Clamp: Multi-functional clamp, appropriate for naked fiber, pigtail, jumper, and leather-based cable; the substitute clamp can be utilized for SC and different connectors for numerous FTTx fiber optic cables
Magnification: 300 Occasions (X-axis or Y-axis)
Warmth Shrink Tubing: 60mm, 40mm and a collection of miniature tubing
Show: 5.0 inch TFT shade LCD show. The content material will be flipped for straightforward two-way operation
Exterior Interface: USB interface, handy for information obtain and software program replace
Splice Loss Storage: 5000 newest splice outcomes saved within the built-in reminiscence
Energy Provide: Constructed-in lithium battery 11.8V energy provide, 5800mAh, charging time ≤ 3.5 hours; Exterior adapter, enter AC100-240V50/60HZ, output DC13.5V/4.81A
Energy Saving Operate: 15% Lithium battery energy will be saved in a typical atmosphere
Working Setting: Temperature: -10~+50℃, Temperature: <95percentRH (non-condensing), Working Altitude: 0~5000meter, Most Wind Pace: 15meter/s
Physique Dimension(LxWxH): Approx. 205 x 140 x 123mm / 8.1 x 5.5 x 4.8in
Lighting: Handy to position fiber at night time
Physique Weight: 1434 g / 50.6 oz(approx.)(with out battery), 1906 g / 67.2 oz(approx.)(with battery)

Package deal Checklist:
1 x Fusion Splicer
1 x Leather-based Wire Stripping Pliers
1 x Three-Port Pliers
1 x Blow Balloon
1 x Bottle
1 x Stool
1 x Hand Strap
1 x Energy Twine
1 x Adapter
1 x Plastic Size Fixer
1 x Brush
1 x Tweezers
1 x Cooling Rack
1 x Person Guide

【FUSION SPLICER ADVANTAGES】Our high-precision Fiber Optic Fusion Splicer has high-speed picture processing expertise and particular precision positioning expertise, 1) Splicing mode: 17 units of operation modes. 2) Heating mode: 9 teams of operation modes. 3) Fiber alignment: exact alignment, core alignment, cladding alignment. 4) Magnification:300 instances picture magnification.
【SIMPLE OPERATION】Fusion Splicer is supplied with a 5-inch show display, a graphical interface, and easy operation; it’s particularly appropriate for fiber optic cable engineering, upkeep, scientific analysis and instructing within the communication fields of telecommunications, broadcasting, railways, petrochemicals, electrical energy, navy and public safety.
【FAST SPLICING SPEED AND LOW LOSS】This Optical Fiber Fusion Splicer can robotically full your entire means of fiber splicing inside 9 seconds. It has the traits of sunshine weight, simple to hold, simple to function, quick splicing pace, low loss, and so forth. Relevant Fiber: SM (G.652&G.657), MM (G.651), DS (G.653), NZDS (G.655) and customized fiber varieties.
【FOR THE CONNECTION OF OPTICAL FIBERS】 This Optic Fiber Cleaver is principally used for the connection of optical fibers, which may additional join atypical optical cables, jumpers and a number of single-mode, multi-mode and dispersion-shifted silica fibers with a cladding diameter of 80um-150um. Outfitted with USB Interface for straightforward information obtain and software program improve.
【AFTER SALE SERVICE】Buyer satisfaction is our pursuit. Splice loss: 0.02dB (SM), 0.01dB (MM) 0.04dB (DS/NZDS). Return loss: higher than 60dB. Fiber diameter: cladding diameter 80~150μm, coating diameter 100~1000μm. Slicing size: Coating lower than 250μm: 8~16mm; coating 250~1000μm: 16mml. Tensile check: commonplace 2N (non-compulsory).
