Fiber Optic Fusion Splicer Equipment, Handheld Excessive Precision FTTH Fusion Splicer Machine, for SM, MM, DS, NZDS Fibers, 8s Splicing 26s Heating Computerized Fiber Splicing Instruments (US)

Worth: $1,396.94
(as of Jul 10,2022 11:05:54 UTC – Particulars)

Specification:

Merchandise Kind: Fiber Fusion Splicer
Relevant Fiber: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(together with G.657)
Fiber Depend: Single
Relevant Fiber Dimension: Cladding Diameter: 80-150 Um. Wrapper Diameter: 160-900 um
Typical Splice Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return Loss: 60dB
Fiber Cleaved Size: Approx. 10 ~ 16mm / 0.4 ~ 0.6in(coating diameter<250 Um), approx. 16mm / 0.6in
(coating diameter: 250-1000um)
Splicing Program: 40 Teams
Function Mode: Guide, automation
Auto-Heating: Obtainable
Typical Splicing Time: 8 Seconds
Tube Heating Time: 26 Seconds for 60mm and 40mm shrinkable sleeves
Fiber View Magnification: 250x (X or Y view), 125x (X and Y view)
Viewing Methodology and Show: 2 CMOS cameras, 4.3 inch coloration LCD monitor
Storage of Splice End result: 4000 Outcomes loss analysis
Obtainable Stress Take a look at: 1.8-2.2N
Interface: GUl menu interface, simpler operation
Battery Capability: 5800mAh, typical 200 cycles(splice and tube warmth), pluggable inside Li-battery
Energy Provide: Adaptor, Enter: AC100-240V(50/60HZ), Output: DC11-13.5V
Electrode Life: Greater than 4000 discharges, could be changed conveniently

Package deal Record:
1 x Fusion Splicer
1 x Fiber Cleaver
2 x Electrode Sheet
1 x Optical Fiber Stripper
1 x Stripping Line
1 x Cooling Rack
1 x U Disk
1 x Sponge Pad
1 x Brush
1 x Tweezers
1 x Fastened-Size Machine
1 x Energy Twine
1 x Adapter
1 x Hex Wrench
1 x Carrying Case
1 x String
1 x Person Guide

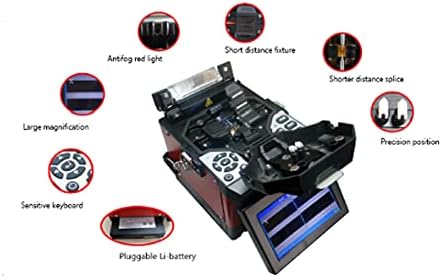

【Handheld fiber fusion splicer machine equipment】This machine is hand-held, small, gentle, assist core to core digital alignment.
【Transient introduction of fiber splicing instrument】8s splicing time, 26s tube heating time, utilizing 5800mAh and pluggable Li-battery, typical 200 cycles.
【ARC】ARC is calibrated by temperature and air stress routinely, very handy.
【Automaticlly】Robotically switching on windshield and heater in 4 steps, straightforward to function.
【Utility & Assure】The product is utilized to reveal fibers, indoor cables and jumper wires splicing. If there any challenge about this product, please contact us, we’ll give the most effective resolution within the first time. we assure alternative or refund.
