Fiber Optic Splitter 1 x 8 Fiber Branching Cassette Card Inserting PLC Splitter YOUCHENG for CATV Knowledge Community, Optical Communication System, Optical Fiber Check Gear, FTTH and FTTB

$14.59


Worth: $14.59
(as of Jul 09,2022 12:10:17 UTC – Particulars)

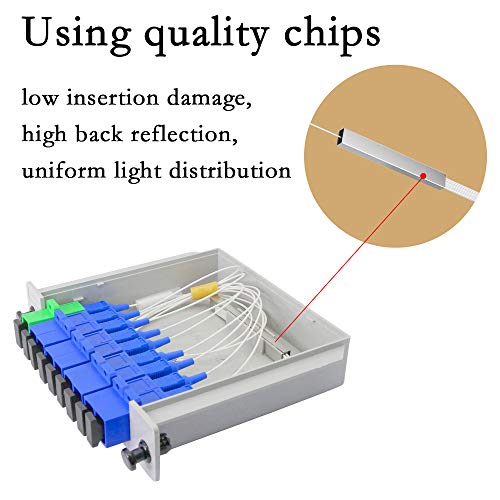

1. This can be a skilled fiber splitter, which might distribute the sunshine power of a single fiber to eight fibers in line with a given ratio, or mix the sunshine power of a number of fibers right into a single fiber.
2. It could meet the transmission necessities of various wavelengths with low insertion loss. This product is a software that may meet varied wants and is sturdy.
3. Full fiber construction, good environmental stability, compact construction, small measurement, will be put in in varied current switch bins, with out leaving a variety of set up area.
4. Appropriate for cable tv knowledge community, optical communication system, optical fiber take a look at gear, FTTH and FTTB.
Specification:
Kind: 1-TO-8 PLC splitter.
Working wavelength: 1260-1650nm.
Interface sort: SC / UPC.
Insertion loss: most 10.5db.
Uniformity: 0.8db.
Reflection loss: 50db max.
Polarization loss: 0.2 max. .
Directionality: most 55db.
Wavelength associated loss: 1.0 max.
Working temperature: -40~85℃.
TEMP stability: 0.6 Max.
Dimensions: about 130 x 113 x 25 mm / 5.1 x 4.4 x 1.0 inches.
Weight: 115g.
Packing amount: 1x optical fiber splitter

Bundle Dimensions ‏ : ‎ 7.24 x 5.67 x 1.26 inches; 1.45 Ounces
Date First Accessible ‏ : ‎ October 12, 2020
Producer ‏ : ‎ YOUCHENG
ASIN ‏ : ‎ B08L3XT5ZH

This can be a skilled fiber splitter, which might distribute the sunshine power of a single fiber to eight fibers in line with a given ratio, or mix the sunshine power of a number of fibers right into a single fiber
1×8 insert sort PLC Splitter.The interface sort is SC/APC, quick and sensible. Relevant to house wiring, engineering tasks, company firms, fiber optic LAN.
Full fiber optic construction, good environmental stability, compact construction, small measurement, will be put in in varied current switch bins, No want to depart a variety of set up area
The optical splitter is especially appropriate for cable TV knowledge networks, optical communication programs, optical fiber take a look at gear, FTTH and FTTB
Earlier than aligning the coupler, the waveguide have to be cleaned and thoroughly put in on the waveguide body, then the fiber is cleaned, one finish is put in on the precision adjustment body on the incident finish, and the opposite finish is linked to the sunshine supply
