FTTH Outside Optical Fiber Drop Cable,G657A1,1 Core Single Mode,LSZH Black Jacket,1 Metal Wire+2 FRP Power Member,1000 Meters/Roll

$299.00


Worth: $369.00 - $299.00
(as of Jul 09,2022 05:57:54 UTC – Particulars)


Product Description

etayson fiber

etayson fiber

etayson optical fiber cable

etayson optical fiber cable

etayson optical fiber cable

etayson optical fiber cable

Attribute

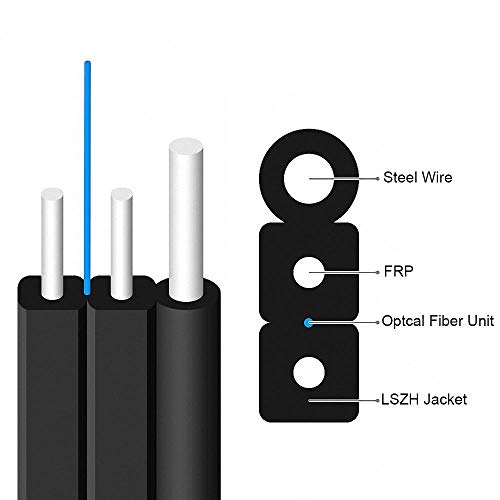

Particular low-bend-sensitivity fiber offers excessive bandwidth and glorious communication transmission property;
Two parallel FRP power members guarantee good efficiency of crush resistance to guard the fiber;
Single metal wire and FRP as the extra power member ensures good efficiency of tensile power;
Easy construction, mild weight and excessive practicability;
Novel flute design, simply strip and splice, simplify the set up and upkeep.

optical fiber cable

optical fiber cable

optical fiber cable

optical fiber cable

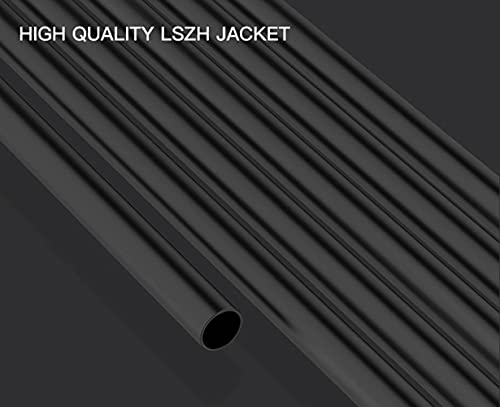

LSZH jacket

LSZH jacket

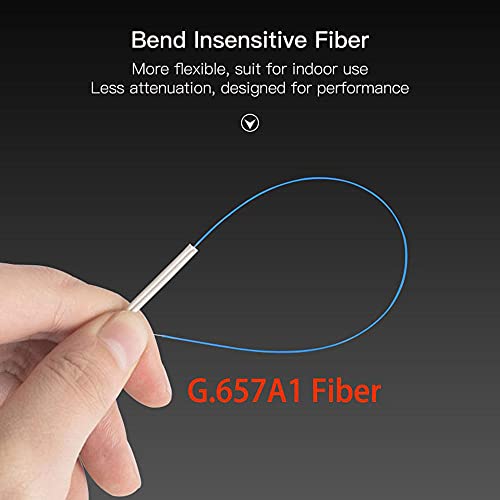

Bend Insensitive Fiber

Extra versatile than G.652D, swimsuit for indoor/outside use. Much less attenuation, designed for efficiency.

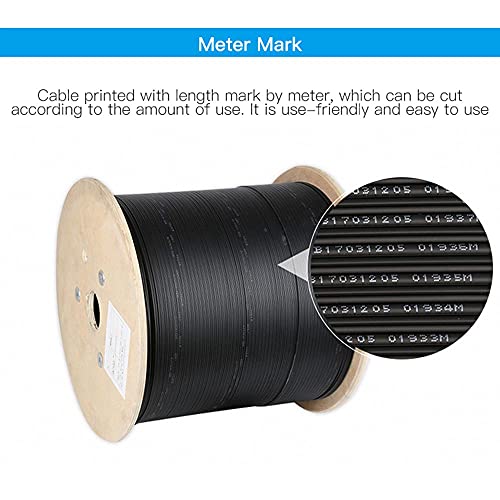

Meter Mark

Cable printed with size mark by meter, which could be reduce in accordance with the quantity of use. It’s use-friendly and simple to make use of.

Flame Retardant

Top quality LSZH materials, low smoke, flame retardant, improve service life. New LSZH materials, higher safety.

TECHNICAL DETAILS

Fiber Rely
1

Cable Dimension(mm)
2.0×5.0

Cable Weight (lb/km)
37

Outer Jacket
LSZH

Power Member
1.0 Metal wire+ 2*FRP

Tensile power(N)
360 (Lengthy Time period)–1200 (Quick Time period)

Bending Radius(CM)
15 (Static)–35 (Dynamic)

Fiber Color
Blue

Fiber Kind
G.657A1

Mode Discipline Diameter
9.1±0.2 μm

Cladding Diameter
124.9±0.4 μm

Coating Diameter
248±0.2 μm

Transmission Mode
SMF-9/125

Optical Wave
1310/1550(nm)

Attenuation(db/km)
≤0.4/0.30

Storage Working Temperature
-20℃~70℃

etayson  optical fiber  cable

etayson  optical fiber  cable

Fiber Size
1000 Meters
1000 Ft

Internet Weight
17 KG
5.6 KG
1.5 KG

Bundle Dimensions ‏ : ‎ 14.4 x 13.9 x 13.8 inches; 41.5 Kilos
Date First Accessible ‏ : ‎ March 15, 2019
Producer ‏ : ‎ Etayson
ASIN ‏ : ‎ B07PPTFLR6
Nation of Origin ‏ : ‎ China

Particular low-bend-sensitivity fiber offers excessive bandwidth and glorious communication transmission property.
Two parallel FRP power members guarantee good efficiency of crush resistance to guard the fiber.
Easy construction, mild weight and excessive practicability.
Novel flute design, simply strip and splice, simplify the set up and upkeep.
Low smoke, zero halogen and flame retardant sheath.
