Gotek USB Emulator,SFRM72-FU-DL USB Floppy Drive Emulator,34 Pin Floppy Driver Interface, 5V DC 4 Pin Energy Plug,720KB Constructed-in Flash Reminiscence, with FAT12 Format

Value: $52.99 - $48.99
(as of Jul 09,2022 18:03:08 UTC – Particulars)

Options:
Floppy Driver:
Interface: 34 pin floppy driver interface, 5V DC 4 pin energy plug Format of disk: Cylinders: 80 Tracks: 160 Sectors/Observe: 9 Bytes/Sector: 512 Information
Switch price: 500 kbps
Encoding methodology: MFM
Panel:
8 phase numbers: Characterize partitions quantity
Inexperienced LED: Standing of learn and write operation
USB port: Join USB flash drive
Button:

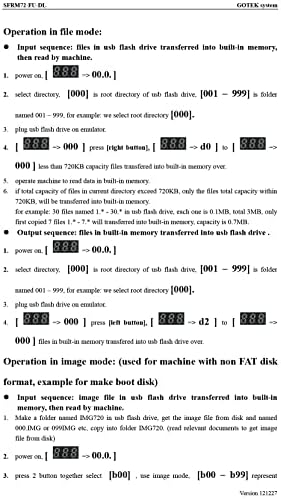

When no USB flash drive plugged on emulator:
Left button used to rise ten-digit, proper button used to rise single-digit, press 2 button collectively to rise hundred-digit, when the hundred-digit is ‘b’, the picture mode used.
When an USB flash drive plugged on emulator:
Left button used to switch information from built-in reminiscence into USB flash drive, proper button used to switch information from USB flash drive into built-in reminiscence.
Firmware model of emulator:
Preserve pressed 2 button collectively, energy on, 8 phase numbers will show firmware model and information of emulator to detect totally different mannequin.
Error Code:
E0: No specified file in USB flash drive
E16: Constructed-in reminiscence fault
Jumper Setting:
J5: —
JA: Set to generate READY sign on 34pin of floppy driver interface
JC: —
JB: —
S0: Driver choose 0
S1: Driver choose 1
MO: Motor
Specs:
Mannequin: SFRM72-FU-DL
Compatibility: Appropriate for Korg Roland Electrical Organ with 720KB floppy drive
Voltage: 5V DC
Interface: USB port, 4 pin energy plug, 34 pin plug
Housing materials: ABS
Measurement (L x W x H): Approx. 122 x 102 x 25mm / 4.8 x 4.0 x 1.0inch
Coloration: Grey (Proven as the image)
Package deal weight: 98g
Package deal Included:
1 x USB Emulator
Use a standard USB flash drive because the medium for transferring the design, switch price: 500 kbps, inexperienced LED: standing of learn and write operations.
The USB emulator adopts 34pin floppy drive interface, 5V DC energy provide and 4-pin energy plug, which is straightforward to put in. 720KB built-in flash reminiscence, FAT12 format, used to cache the info within the U disk.
The USB floppy drive emulator can search 720KB root listing recordsdata or 999 folders. Helps lengthy filenames and 4 ranges of directories in 999 folders.
When no USB flash drive is plugged into the emulator: left button up tens, proper button up ones, press 2 keys on the identical time up a whole lot, when a whole lot is ‘b’, use picture mode. When a USB flash drive is plugged into the emulator: the left button is used to switch information from the inner storage to the USB flash drive, and the fitting button is used to switch information from the USB flash drive to the inner storage.
