Gowoops SX1278 LoRa Radio Wi-fi 433Mhz UART Serial Module LoRaWAN Transmitter Receiver + 433Mhz 3dBi SMA Antenna, Appropriate with Arduino STM32 51 Single Chip Microcomputer
$21.99
Worth: $21.99
(as of Jul 11,2022 01:36:57 UTC – Particulars)
Discover: In the event you’re not accustomed to LoRa wi-fi module, you’d higher to purchase two identical frequency modules + antennas as you will want two to transmit and obtain information.
Description:
E32-433T20DC is a 100mW wi-fi transceiver module, operates at 410~441MHz, based mostly on authentic imported RFIC SX1278 fromSEMTECH.
The module adopts LoRa spread-spectrum expertise, which implies the transmitting distance is for much longer than earlier than. Extensively utilized in numerous events: Meter Studying, Sensible Residence, Sensible Agriculture, Sensible Oil Subject, Industrial Wi-fi Management, Setting Monitor, Temp/humidity Sensor and and so on.
RF Parameter:
IC : SX1278
Working Frequency: 410~441MHz (Default: 433MHz)
Transmitting Energy: 10~20dBm (Default: 20dBm（About 100mW）
Receiving Sensitivity:-130 dBm (Air Information Price: 0.3kbps)
Air Information Price: 0.3k~19.2kbps (Default: 2.4kbps)
Take a look at distance: 3000 meter (In open and clear air, with most energy, 5dBi antenna achieve, peak of 2m, Air Information Price: 2.4kbps)
{Hardware} Parameter:
Dimension: 21 * 36 mm (With out SMA)
Antenna Kind: SMA-Ok
Communication Interface: UART (Baud price: 1200~115200, default: 9600)
Buffer: 512 bytes buffer (Robotically sub-packaging with 58 bytes per bundle)
Package deal Contains:
1 x LoRa UART Wi-fi Module(433Mhz)

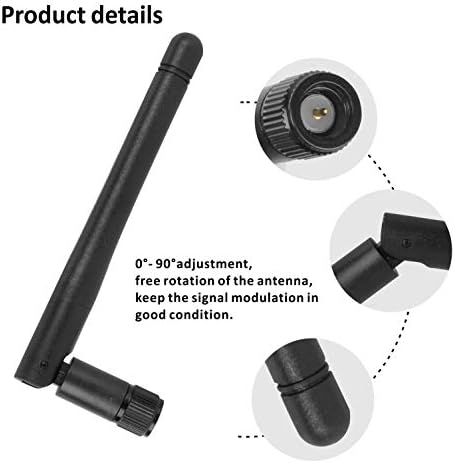

1 x LoRa SMA Antenna(433 Mhz)
✔ LoRa spread-spectrum communication, tremendous anti-interference efficiency — The module adopts LORA unfold spectrum expertise, transmitting distance and anti-interference efficiency are one time greater than FSK
✔ WOR (Low Energy Consumption) — Work on radio, relevant for battery powered functions
✔ FEC (Ahead Error Correction) — Excessive coding effectivity & good correction efficiency
✔ Clear Transmission (Level to Level) — Information sending is by way of clear transmission, the module comes with deal with
✔ Mounted Transmission — Every module can join with different module in several addresses and channels to attain utility like networking, repeating, and so on.
