Headphone Amplifier TempoTec Sonata HD Chip CS42L42 USB Kind C 3.5mm DAC Amp Audio For Android Telephone/PC

Headphone Amplifier TempoTec Sonata HD Chip CS42L42 USB Kind C 3.5mm DAC Amp For Moveable Headphones Audio For Android Telephone/PC

Sonata HD. Use the CS42L42 Dac chip.

Specification:
S/N Ratio: 114dB.
Dynamic Vary：114dB.
Output Energy: 2*60 mW /32 Ohms.
Decision 16/24bit, 44.1/48/88.2/96/176.4/192KHz.
Working Present: 50 mA.
Digital Port：Micro USB TYPE-C.
Equipment: Kind C to USB A adapter.
Assist OS: Home windows / MacOSX /Android.
Analog Port: 3.5mm headphone Jack, Headset mic supported.

USB Kind-C to three.5mm Hello-Res audio converter.

Join your telephone digitally Constructed-in prime quality DAC chip.Totally improve the standard of cell phones whereas offering glorious headset drive functionality. Assist the worldwide output of cell phones, in cooperation with p skilled participant software program to attain 24bit-192KHZ HD functionality.

Three modes for higher listening to expertise.

Three non-obligatory firmware modes can be found: Calling precedence firmware, Tone high quality precedence firmware and Pure music mode firmware. May be upgraded for the higher match of varied cell phones.

Hello-Res Certificated.

The product has handed the Hello-Res Certification, can assist as much as 24-bit/192kHz HD audio, sign to noise ratio attain as much as 114dB,improve the sound high quality 3 occasions than odd cell phones.

99.99% single crystal pure copper cable

Utilizing 4-Core 6N single crystal copper Hello-Fi headphone cable,provide prime quality transmission and in addition sturdy.

Packing Included:

1 * Sonata HD
1 * Adapter(feminine type-c to maleUSB-A)
1 * Hello-Res emblem sticker

Please Word

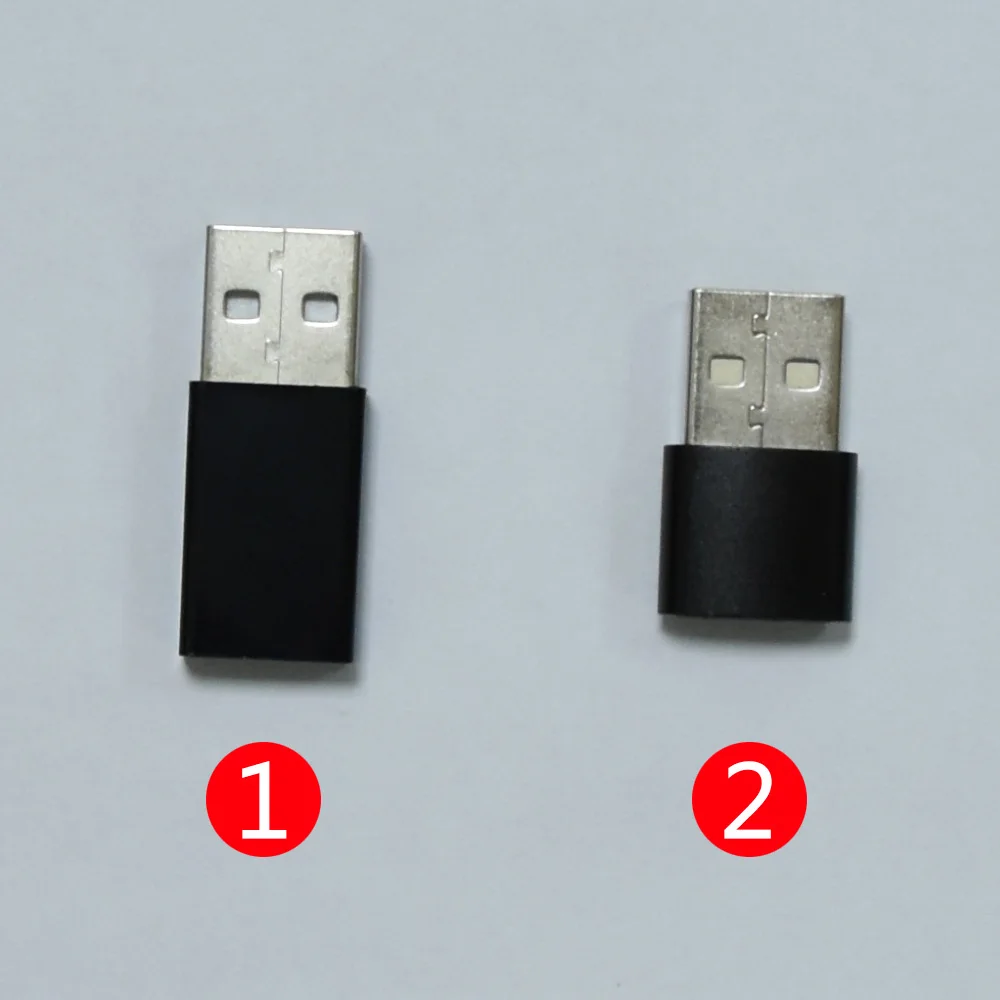

1. Because of the completely different manufacturing batches, the looks of the Adapter can also be completely different, however the operate is identical.

2. We ship items randomly and don’t settle for the required look .

Thanks upfront on your understanding

Sonata HD firmware replace instruction

1. Take away some other redundant USB gadgets in your pc, resembling a detachable exhausting drive. Join the Sonata HD cable to the USB adapter and plug it into the USB port of your pc.

2. Observe that the system supervisor within the working system has modified with new {hardware} (completely different system show contents could also be fluctuate)

3.Run the setup program and choose “Sure”.

4.Within the subsequent program window, enter 22e1 e202 (ignore the verify choice) and click on the Write EEPROM button.

5. Discover! Don’t click on the OK button on the brand new pop-up window of this system (the above message reminds us to re-plug the Sonata HD as soon as).

6. Comply with the prompts to take away the Sonata HD out of your pc and plug it again in to the identical USB port.

7. Observe that there’s a change within the new {hardware} within the system supervisor within the working system.

8. Verify that the brand new {hardware} is totally acknowledged by the system, then you may click on the OK button on this system pop-up window.

9. The replace begins and this system prompts Write to EEPROM OK after the progress bar is accomplished! You are achieved.

10. Click on OK, click on Exit to exit, and unplug the Sonata HD to make use of.

Purchaser Photograph Show

Q1: Apart from Qualcomm processors, do different telephones assist processors?

So long as it helps the OTG operate and has a USB debugging change, it may be used.

Q2: What it assist ?

Below the decision precedence (SONATA HD A) and sound high quality precedence (SONATA HD C) modes, music, voice calls, Okay brother, and brief and lengthy movies might be supported. The alcohol sound mode (SONATA HD D) requires the pattern fee of the playback file. Larger, different functions besides lossless music could seem distorted or popped.

Q3: How a lot warmth?

Constructed-in op amp, throughout use, the cell phone will energy the amp to drive the op amp chip to work, so there will likely be a certain quantity of warmth, however the temperature is not going to be very excessive (about 30-35 levels Celsius), inside the acceptable vary .

This autumn: Will the pace of energy consumption change?

The reverse charging of the cell phone to the op amp circuit of the amp consumes just a little extra energy than the odd adapter; in line with assessments, beneath regular situations, the battery consumes about 2% extra energy per hour than the odd TYPE-C headset adapter.

Q5: Why cannot I acknowledge the {hardware} once I take heed to the audio mode?

No matter whether or not it’s linked to a PC or a cell phone, it’s good to join the telephone upfront, after which hook up with the PC or cell phone, in any other case it is not going to be acknowledged by the system.

Q6: What’s the distinction between the three listening modes?

【SONATA HD A】The manufacturing facility mode is name precedence, it make the Sonata HD cable precedence to deal with the calling operate.And all points are extra balanced.

【SONATA HD C】Sound high quality precedence helps the worldwide settings of most cell phones.it might probably make the Sonata HD cable precedence to deal with the sound.

【SONATA HD D】Alcohol mode is extra appropriate for lossless music or for PC sound card.it might probably maximize the Sonata HD cable to boost the sound however the name operate is not going to be out there on this mode.

Q7: Can I join my pc as a sound card?

It is a cell phone amp. The development for cell phones is clear. The issue with making a gaming sound card is that it doesn’t assist the headset operate after connecting to a PC, so it isn’t really useful.

Q8: Why does the quantity debugging button fail when my telephone makes use of a Haibei participant?

That is as a result of limitation of cell utility permissions. Take Xiaomi cell phone for instance, you may change the “Present floating window” choice within the permission administration of Haibei participant to “Permit”. Most Android smartphones have this operate.

Q9: it would not include micro USB to sort C adapter proper?

No, there may be solely an Adapter for laptop

Q10: Is sonata hd appropriate with particular telephone fashions?
