Sizzling 2MP 1080P HD DVI 3G-SDI LAN 20X Onvif Video Convention Assembly Digicam For Tele-training,Tele-medicine Surveillance System
$665.48
Sizzling 2MP 1080P HD DVI 3G-SDI LAN 20X Onvif Video Convention Assembly Digicam For Tele-training,Tele-medicine Surveillance System
Transport notes:
1)All free delivery merchandise, The Vendor shall be chargeable for delivery value from shenzhen china to vacation spot place. China tariffs, pertains to deal with charges, export declaration charges or customs clearance charges is for vendor ‘s account.
2)However the arrival of the products on the vacation spot, Purchaser import tariffs, pertains to the operation charges, customs charges or customs clearance charges is at purchaser’s value. if there are particular necessities, please specify within the order message, we are going to do declaration bill based on the particular wants of patrons.
Full HD, Extensive View Angle, Multi-protocols,A number of Video Interfaces
This sequence digital camera presents good features, superior efficiency and wealthy interfaces.The options embrace superior ISP processing algorithms to offer vivid pictures with a powerful sense of depth, excessive decision,and incredible coloration rendition. It helps H.264/H.265 encoding which makes movement video fluent and clear even underneath lower than superb bandwidth circumstances.
It employs 1/2.8 inch top quality CMOS sensor. Decision is as much as 1920×1080 ,A number of lens 20×Zoom
help DVI(HDMI), 3G-SDI, LAN interface.
Main auto focus algorithm makes lens a quick, correct and secure auto-focusing.
Low noise CMOS successfully guarantee excessive SNR of digital camera video. Superior 2D/3D noise discount expertise can be used to additional cut back the noise, whereas making certain picture sharpness.
Help 16000, 32000, 44100, 48000 sampling frequency and help AAC, MP3, PCM audio coding.
By adopting step driving motor mechanism, digital camera works extraordinarily quiet and strikes easily.
Help H.264/H.264+ video compression
Help AAC, MP3 and PCM audio compression; Help compression of decision as much as 1920×1080 with body as much as 60 fps and a couple of channels 1920×1080 with 30 fps compression.
Help ONVIF, RTSP, RTMP protocols and RTMP push mode, straightforward to hyperlink streaming media server (Wowza, FMS)
Tele-education, Lecture Seize, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency Command Techniques.
Help low-power sleep/get up, the consumption is decrease than 400mW underneath sleep mode.
| Optical Zoom | 20X f＝5.5～110mm |
| Sensor | 1/2.8 inch top quality HD CMOS sensor |
| Efficient Pixels | 16: 9, 2.07 Megapixel |
| 1080P Video Format | 1080P60/50/30/25/59.94 |
| 1080i Video Format | 1080I60/50/59.94 |
| 720P Video Format | 720P60/50/30/25/59.94 |
| View Angle | 3.3°(tele)–54.7°(vast) |
| Aperture | F1.6–F3.5 |
| Digital Zoom | 10X Digital Zoom |
| Minimal Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Stability | Auto / Handbook / One Push / 3000K / 4000K / 5000K / 6500K |
| Focus | Auto / Handbook |
| Aperture | Auto / Handbook |
| Digital Shutter | Auto / Handbook |
| BLC | ON / OFF |
| WDR | OFF/ Dynamic stage adjustment |
| Video Adjustment | brightness, coloration, saturation, distinction, sharpness, B/W mode |
| SNR | >55dB |
| Enter / Output interface | |
| Video Interface | DVI(HDMI) / 3G–SDI / LAN |
| Picture Code Stream | Twin streams output |
| Video Compression | H.265 / H.264 |
| Management Sign Interface | RS-232 (Ring via RS232 output), RS485 |
| Management Protocol | VISCA / PELCO-D / PELCO-P |
| Baud Charge | 115200 / 9600 / 4800 / 2400bps |
| Audio Enter Interface | Twin observe 3.5mm linear enter |
| Audio Compression | AAC / MP3 / PCM Audio Compression |
| IP Interface | 100M IP port (10/100BASE-TX) |
| Visca Protocol | Help VISCA protocol management via IP port. |
| Community Protocol | RTSP, RTMP, ONVIF |
| Energy Interface | HEC3800 outlet (DC12V) |
| PTZ Parameter | |
| Pan Rotation | ±170° |
| Tilt Rotation | -30° ~ +30° |
| Pan Management Velocity | 0.1 ~ 100 diploma /sec |
| Tilt Management Velocity | 0.1~ 45°/sec |
| Preset Velocity | Pan: 100°/sec, Tilt: 45°/sec |
| Preset Quantity | 255 presets （10 presets by distant controller） |
| Different Parameter | |
| Provide Adapter | AC110V-AC220V to DC12V/1.5A |
| Enter Voltage | DC12V±10% |
| Enter Present | 1A（max） |
| Consumption | 12W (max) |
| Retailer Temperature | -10℃ to +60℃ |
| Retailer Humidity | 20% –95% |
| Working Temperature | -10℃ to +50℃ |
| Working Humidity | 20%–80% |
| Distant Operation | distant improve, distant reboot and distant reset |
| Accent | energy provide,RS232 management cable,remoter, person guide, guarantee card |
| Optionally available Accent | Set up Bracket |

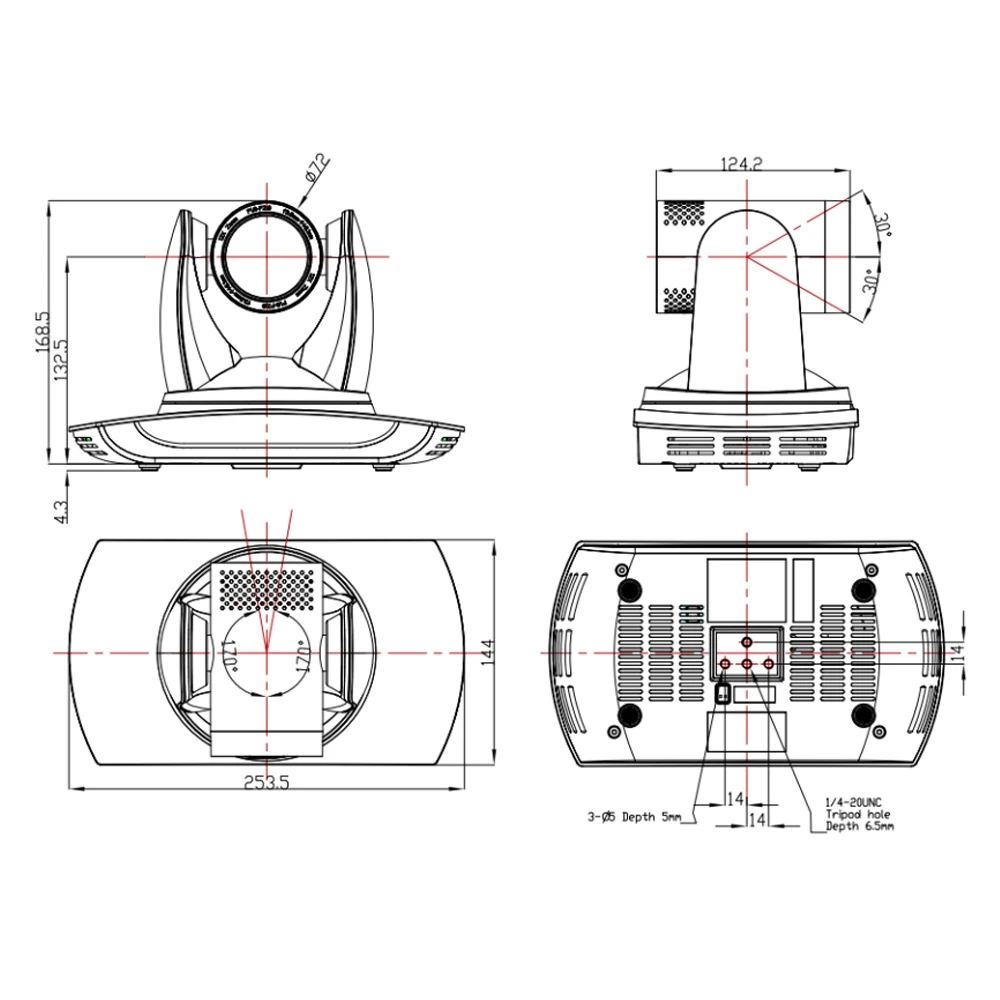

| Product Dimension | 253.5mmX144mmX169mm |
| Internet weight | 1.46kg |
| Packed Dimension | 360x290x280MM |
| Gross Weight | 6.5KG |
The right way to push video stream to youtube or different video websites:
