HQUA-TWS-12 Ultraviolet Water Air purifier Sterilizer Filter for Complete Home Water Purification,12GPM 120V, 1 Additional UV Lamp + 1 Additional Quartz Sleeve

$259.99


Value: $259.99
(as of Jul 06,2022 11:43:12 UTC – Particulars)


Product Description

The way it works?

How uv water sterilizer works

How uv water sterilizer works

The ultraviolet (UV) remedy course of is an especially fast bodily course of. Ultraviolet mild mutates and/or degrades DNA. When the DNA is broken, the organism turns into unable to operate as a result of its “directions” are garbled or lacking. An organism that has no directions can’t operate and reproduce, and can’t trigger an infection. It’s rendered innocent and finally dies.

Within the UV disinfection course of, water is purified because it runs by means of a stainless-steel chamber (additionally known as a “reactor”) that accommodates a particular UV- producing lamp. Because the water flows previous the lamp, the microbe within the water obtain a deadly dose of UV.

HQUA UV Water Air purifier is a water remedy gadget that must be assembled, however it’s simple to complete. Every a part of it have its personal operate, we’ll introduce them hereby:

Important Parts Of The HQUA UV Water Sterilizer.

UV reactor stainless steel chamber

UV reactor stainless steel chamber

UV bulb lamp quartz sleeve 12GPM 55w

UV bulb lamp quartz sleeve 12GPM 55w

electronic ballast

electronic ballast

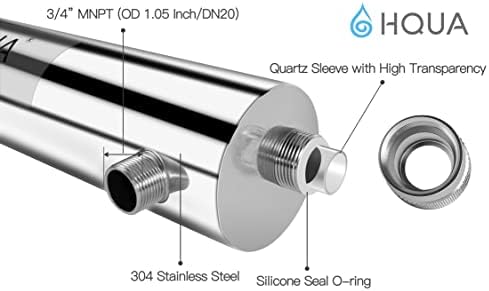

UV Reactor Chamber

The UV chamber is made by 304 chrome steel, which was broadly utilized in meals trade, medical, thought-about to be steady and sturdy.

Size-21 inch, diameter-3.5 inch, inlet/outlet 3/4” DN20 1.05 inch/ 26.67mm , no requirement of the water move course.

UV lamp & Quartz sleeve

Quartz sleeve (HQUA-TWS-12Q) not solely present an interspace for the UV lamp, but in addition guarantee excessive transmittance (90%) for the UV mild.

UV lamp (HQUA-TWS-12L, GPH436T5L/HO customary 4-pin) present sufficient UV mild to destroy the DHA of the microbe and micro organism.

Digital Ballast

Digital ballast (HQUA-TWS-5595EB) join the UV lamp and the ability (120V/60Hz), work as a controller within the system with 3.2 ft. (100cm) energy wire and 3ft. (90cm) lamp wire.

Inexperienced mild on ‘work’ means the whole lot alright, purple mild blinks on ‘fault’ and the controller beeps when the system is failed.

Environment-friendly and safe sterilization treatment.

Environment-friendly and safe sterilization treatment.

Go Inexperienced and Satey

Inexperienced and protected sterilization remedy. Lack of chemical compounds means no dangerous chemical byproducts are going again into the character. And it keep away from the potential risk residual chlorine, the style of your water isn’t affected in any method as properly.

4 log 99.99% reducing bateria microbe sterilization

4 log 99.99% reducing bateria microbe sterilization

Efficient Sterilization

HQUA water sterilizer guarantee a 99.99% lowering of micro organism and microbe within the water. The corresponding UV publicity is 30 mJ/cm². A slower move charge, a better wattage gadget or two sterilizer could be efficient to deal with a robust micro organism and microbe drawback.

Installation and Maintenance

Installation and Maintenance

Set up and Upkeep

Simple set up and upkeep. No want for chemical complement, the gear is meant to be put in within the pipe system completely. the lamp must be changed yearly and the quartz sleeve must be cleaned each 6-12 months, substitute each 2 years.

instruction manual of UV water sterilizer purifier purification system

instruction manual of UV water sterilizer purifier purification system

Full Technical Description

Please CHECK YOUR BOOKLET within the package deal earlier than you deal with this method. We have now an entire instruction handbook that accommodates many detailed description of the unit that can assist you numerous.

NOTICE:

Pre-treatment:

Water high quality is extraordinarily essential for the optimum efficiency of your UV system. The next ranges are really helpful :

Iron < 0.3 ppm (0.3 mg/L)
Hardness< 7 gpg (120 mg/L)
Turbidity < 1 NTU
Manganese < 0.05 ppm (0.05 mg/L)
Tannins < 0.1 ppm (0.1 mg/L)
UV Transmittance> 75%

Sizzling Water Warning

The water within the chamber of this gear may be highly regarded (Approx 140F) throughout an prolonged 4 hours of no water flowing. It is really helpful to open the tap till the new water has been purged from the chamber. Hold human physique away from the tap throughout this time. Or set up a 5 gallons water tank after the UV unit to cut back the non permanent scorching water.Upkeep

UV lamp: Change the UV lamp yearly (or biennially if seasonal house use) to make sure most disinfection.
Quartz Sleeve: Clear the quartz sleeve each 6-12 months, substitute each 24 months. The coating on the quartz sleeve will slowly type as a result of minerals within the water. This coating should be eliminated as a result of it reduces the quantity of UV mild reaching the water, thereby lowering disinfection efficiency. If the sleeve cannot be cleaned, it should be changed.

12GPM 55W 21 inch lengthy and three.5 inch diameter. MNPT Inlet/Outlet: 3/4″ Inch DN20.
NEW DESIGN. Smaller Measurement, Simpler to Set up and combine into the pipe system.
No Secondary Air pollution. No chemical added to the water provide. No change in style, odor, pH or conductivity nor the overall chemistry of the water.
9000 hours Lifetime of UV bulb. Effectivity sterilization: Disinfect 99.99% micro organism and viruses.
Skilled handbook e book are contained. Set up, upkeep, troubleshooting are simple to complete with that.
