Huasj new Sierra Wi-fi Airprime EM7700 (Gobi 4000) LTE Band 4 and 17, FRU:04W3831 DL 100mbps/ UL 50mbps 4G LTE

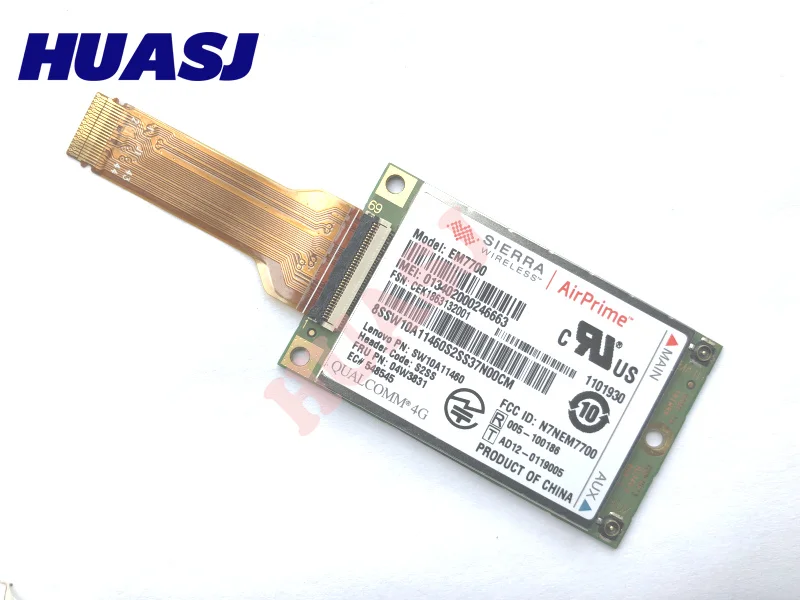

Sierra Wi-fi Airprime EM7700 (Gobi 4000)

Sierra AirPrime EM7700 is the primary technology 4G LTE Wi-fi module within the PCI M.2 type issue, which is the world’s first skinny type issue embedded wi-fi module for 4G LTE networks. The Sierra Wi-fi AirPrime™ EM7700 is a nominal 2.5 millimetres thick and is good for tablets and ultra-portable notebooks the place thinness is a vital design constraint. The AirPrime EM7700 is designed to help Home windows 8, makes use of Qualcomm’s Gobi™ 4G LTE modem and is appropriate with Qualcomm’s API and the USB-IF cellular Broadband Interface Mannequin (MBIM) for straightforward integration by PC OEMs.

Sierra Wi-fi EM7700 4G LTE module Technical Specs:

* LTE Class 3 Module

* Chipset: Qualcomm MDM9200

* Air Interface: LTE and HSPA+

* Frequency Bands: LTE B4 and 17 (700/AWS), WCDMA 850/1900/2100 MHz

* USB: USB 2.0 excessive pace

* Flash LED Output

* SIM Interface: 1.8V or 3V

* Antenna Range: Sure

* Administration Providers: No

* Host OS Compatibility: Home windows 8

* System Dimensions: 50 x 30, nominal 2.5mm thick

* Temperature Vary: -20 levels to +60 levels C

Sierra Wi-fi EM7700 4G LTE WWAN Card is appropriate with the next ThankPad machines:

ThinkPad Helix
ThinkPad T430, T430i, T430s, T430si
ThinkPad X230, X230i
AirPrime EM7700 Supported Working System:

Microsoft Home windows 10 32bit, 64-bit
Microsoft Home windows 8.1 32bit, 64-bit
Microsoft Home windows 8 32bit, 64-bit
Obtain Sierra Wi-fi EM7700- Gobi 4000 Software program for Home windows 10 (64-bit), 8.1 (64-bit), 8 (64-bit) – ThinkPad:

https://pcsupport.lenovo.com/ca/en/downloads/ds037319

This bundle installs the software program (Wi-fi WAN driver) to allow the next machine:

Sierra Wi-fi EM7700 – Gobi 4000
