Ingcool 7 inch HDMI LCD 1024×600 Decision Capacitive Contact Display IPS Show Module Suitable with Raspberry Pi 4 3 2 1 B B+ A+, PC, Helps Home windows 10/8.1/8 / 7

Worth: $62.59
(as of Jul 08,2022 20:25:36 UTC – Particulars)

Connect with Raspberry Pi
The 7DP-CAPLCA helps Raspbian/Ubuntu/Kali/Retropie and WIN 10 IoT. Solely single-point contact is supported in most of OS, a number of touches could also be
supported in some software program, max 5-points.
Raspberry Pi does not assist hot-plug and auto-recognized the decision, you want to configure the decision manually, in any other case, the show can not work usually.

1.Downolad the most recent Raspbian picture from Raspberry Pi web site（Full or Desktop model is advisable ）
2.Insert the TF card to host PC by card reader and format it.
When you’ve got TF card which is able to use, you possibly can skip to Step 4.

3.Write Raspbian (.img file) to TF card by picture author software program.
Notice: you want to unzip the zip file to get the .img file.

4.After writing, open the config.txt file which is positioned in BOOT listing and modify it.
5.Take away the road dtoverlay=vc4-fkms-V3D
6.Add the next strains to the tip of config.txt file then save.max_usb_current=1
hdmi_group=2
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0
hdmi_drive=1

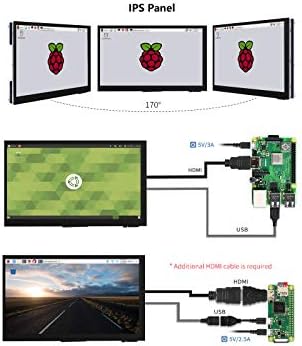

1.Insert the TF card to Raspberry Pi
2.Join Contact interface of the show to a USB port of Raspberry Pi
3.Join Show interface to HDMI port of Raspberry Pi
4.Energy on Raspberry Pi and the LCD will show.

Connect with PC
The show helps Home windows 7/8/8.1/10 when working with Home windows PC, helps 5-points and it’s driver free.
1.Flip the Backlight swap on the bottom into ON.
2.Join the Contact interface of show to USB port of PC by micro USB cable.
3.Join the DISPLAY interface of show to HDMI port of PC by customary HDMI cable.
4.Anticipate displaying

Growth Assets
https://www.ingcool.com/wiki/7DP-CAPLCD?Amazon
1024×600 {hardware} decision 7” IPS display
Helps mini PC like Raspberry Pi 4B / 3B+ / 3A+ / 3B / 2B / 1B+ / 1A+,Extra HDMI Cable Required: Raspberry Pi Zero WH / Zero W / Zero
When working with Raspberry Pi, it helps Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT, driver free. When working with desktop PC, helps Home windows 10 / 8.1 / 8 / 7, 5-points contact, driver free
This show has a capacitive contact panel, helps as much as 5-points contact.170 diploma Huge Angle of View ,higher visible results
Present technical assist , please contact with the Vendor first when you’ve got any drawback when utilizing the LCD.
