MUSETEX MATX (Micro-ATX) Case 5PCS ARGB Followers Pre-Put in 2 x USB 3.0 Ports Opening Tempered Glass Panel & Mesh Entrance Panel Airflow Gaming PC Case Tower Pc Instances (MK7-GN5)
$94.99
Value: $94.99
(as of Jul 10,2022 07:44:52 UTC – Particulars)
Product Description
MUSETEX MK7-GN5 Gaming Case with 5PCS 120mm ARGB followers as items & Tempered glass facet panel door opening design
Giant entrance panel metallic mesh and 5pcs 120mm ARGB followers as items permits most airflow that gives cooling on your micro case to maintain every thing steady.
MUSETEX MK7 sequence have designed glass facet panel door opening design for case lovers. Magnetic door toughened glass design with metallic pull ring, which isn’t solely handy for opening the door to put in pc equipment, but in addition open the door for warmth dissipation. And likewise the high-transmittance tempered glass can show cool and colourful ARGB fan lights and your equipment.
4MM thickness tempered glass magnetic suction door Revolutionary design with no screws , can develop as much as 240 levels.
MUSETEX MK7 Tower Case with 2 Lighting Management Strategies
ARGB fan refers to addressable and programmable, that’s each light-emitting level on the fan could be managed, and the colour modifications are very wealthy, which is extra trendy and dazzling.
1.Button Management
Press the LED button on the I/O panel to simply change the ARGB fan mild.(Press the LED button twice to return to the unique mode)
2.Motherboard Management
Solely when the 5V3PIN cable on the management board is linked to the motherboard can the ARGB mild synchronization be realized.
(Be aware: 12V 4PIN motherboard will not be appropriate for motherboard management, Button management is really helpful.)
(Press the button for 3 seconds to modify to motherboard mode)
MUSETEX Pc Case Fan Management Board
Outfitted with MUSETEX fan management board, please join 5V 3PIN motherboard interface to manage ARGB fan. ( Forbidden join with 12V 4PIN header)
A1 2PIN LED line interface
A2 Energy twine interface
A3 Motherboard line interface
MK7 Micro Case with Ample Airflow
Preserve cool with 5 x 120mm Pre-installed ARGB followers, no have to buy individually.
Silent ARGB followers/Giant air consumption/Glorious warmth dissipation impact.
The vents, on the highest and backside of the laptop case, can provide good air flow. On the similar time, the mud filters cowl the highest and backside vents to stop mud to get in. Successfully defend the essential laptop elements.
DUST FILTERS
The highest is a dust-proof internet with a magnetic stripe, which is agency and handy.
The underside is PSU dust-proof internet, which is simple to disassemble and clear.
Product Particulars
Motherboard Compatability: Micro-ATX/ Mini-ITX (With a view to set up the motherboard quicker, you’ll be able to take away the pre-installed again panel fan first.)
Merchandise Dimensions(Lx Wx H): 16.54” x 9” x 15.35”（420 x 230x 390mm)
CPU Cooler Max Top: 180mm
GPU Max Size: 340mm
PSU Max Size: 200mm (With a view to set up the PSU quicker, you’ll be able to take away the exhausting disk holder first.)
DRIVES: 3 x 2.5″ SSD+2 x 3.5″ HDD
EXPANSION SLOTS: 6 slots
Bundle consists of: MK7 Case *1, ARGB Followers *5, ARGB Management board *1, Handbook *1
Cooling Methodology: Air Water

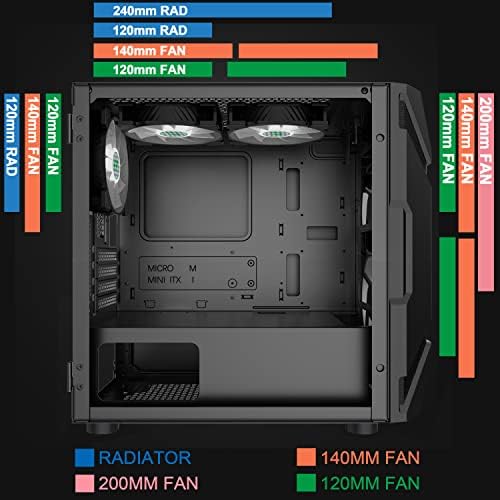

Air Fan Assist :
Entrance: 2x120mm/2x140mm/1x200mm
High: 2x120mm/2x140mm
Rear: 1x120mm/1x140mm
Radiator Assist:
Entrance: 120mm / 240mm / 280mm
High: 120mm / 240mm
Rear: 120mm
Motherboard Assist
Micro-ATX/ITX
Micro-ATX/ITX
Micro-ATX/ITX
Micro-ATX/ITX
Micro-ATX/ITX
Mini-ITX/DTX
Merchandise Dimension
16.54” x 9” x 15.35”（420 x 230x 390mm)
16.54” x 9” x 15.35”（420 x 230x 390mm)
16.54” x 9” x 15.35”（420 x 230x 390mm)
16.54” x 9” x 15.35”（420 x 230x 390mm)
15.23″x13.77″ x 7.87″（390 x 350 x 200mm)
10.23” x 13.58” x 7.28”（260 x 345 x 185mm)
Packing Weight
14 LB
14 LB
14 LB
14 LB
11 LB
12 LB
I/O Ports
USB 3.0 Port x 2, HD Audio x 2, LED Button x 1, Energy Button x 1, Reset Button x 1
USB 3.0 Port x 2, HD Audio x 2, LED Button x 1, Energy Button x 1, Reset Button x 1
USB 3.0 Port x 2, HD Audio x 2, LED Button x 1, Energy Button x 1, Reset Button x 1
USB 3.0 Port x 2, HD Audio x 2, LED Button x 1, Energy Button x 1, Reset Button x 1
USB 3.0 Port x 2, HD Audio x 2, LED Button x 1, Energy Button x 1, Reset Button x 1
USB 3.0 Port x 2, HD Audio x 2, Energy Button x 1
Filters
High and backside
High and backside
High and backside
High and backside
Backside
Enlargement Slots
6 slots
6 slots
6 slots
6 slots
4 slots
3 slots
Drive Bays
3 x 2.5″ SSD+2 x 3.5″ HDD
3 x 2.5″ SSD+2 x 3.5″ HDD
3 x 2.5″ SSD+2 x 3.5″ HDD
3 x 2.5″ SSD+2 x 3.5″ HDD
2 x 2.5″SSD+1 x 3.5″HDD / 1 x 2.5″SSD + 2 x 3.5″HDD
4 x 2.5″SSD / 2 x 3.5″HDD
Radiator Assist
Entrance: 120mm / 240mm / 280mm；High: 120mm / 240mm；Rear: 120mm
Entrance: 120mm / 240mm / 280mm；High: 120mm / 240mm；Rear: 120mm
Entrance: 120mm / 240mm / 280mm；High: 120mm / 240mm；Rear: 120mm
Entrance: 120mm / 240mm / 280mm；High: 120mm / 240mm；Rear: 120mm
Rear: 120mm
Fan Assist
Entrance: 2x120mm/2x140mm/1x200mm；High: 2x120mm/2x140mm；Rear: 1x120mm/1x140mm
Entrance: 2x120mm/2x140mm/1x200mm；High: 2x120mm/2x140mm；Rear: 1x120mm/1x140mm
Entrance: 2x120mm/2x140mm/1x200mm；High: 2x120mm/2x140mm；Rear: 1x120mm/1x140mm
Entrance: 2x120mm/2x140mm/1x200mm；High: 2x120mm/2x140mm；Rear: 1x120mm/1x140mm
Entrance: 2x120mm; High: 2x120mm; Rear: 1x120mm
High: 1x120mm/1x140mm; Rear: 1x120mm
Greatest Alternative for MATX case – MUSETEX PC case MK7 is the widest case in all micro instances. As a result of the width of this case is 230mm, there may be nonetheless 38mm distance between GPU and the entrance glass panel after putting in vertical graphics card, which can preserve your system cooling. The micro case has ample area for simple set up of pc equipment, and likewise gives extra cooling area for the chassis.
5PCS ARGB Followers as Presents – MK7-GN5 pc case has Giant metallic mesh entrance panel and 5pcs 120mm MUSETEX ARGB followers are pre-installed for items, which offering cool lighting and wonderful airflow, on the similar time, preserving cooling with the case strongly.
Distinctive Door Opening Design – MUSETEX MK7 sequence have designed glass facet panel door opening design for case lovers. This isn’t solely handy for opening the door to put in pc equipment, but in addition the high-transmittance tempered glass can show cool and colourful ARGB fan lights.
A number of ARGB Modes – Addressable ARGB LEDs managed with 2 strategies. 1.LED Button Management: Many sorts of lighting colours for LED button on the I/O panel; 2.Motherboard Management: Solely when the 5V3PIN cable on the management board is linked to the motherboard can the ARGB mild synchronization be realized. (Be aware: 12V 4PIN motherboard will not be appropriate for motherboard management, Button management is really helpful.)
Extra Area – The interior area of this gaming case is extensive and simple to put in 3 x 2.5″ SSD+2 x 3.5″ HDD；Micro-ATX/ITX motherboard; 120mm/240mm/280mm water cooling; most size 340mm GPU（putting in vertically or horizontally）; most size 180mm CPU air cooling; most size 200mm PSU.
TOP I/O PANEL – MUSETEX MK7 mid-tower case is designed with 2 x USB 3.0 Port, 2 x HD Audio, LED Button, Energy/Reset. Additionally it is geared up with 2pcs mud filter: the highest magnetic strip mud filter could be dustproof; different is PSU mud filter straightforward for set up can defend the underside. The considerate design is satisfying!
