NanoVNA Testboard Equipment for Vector Community Evaluation Take a look at Board Demo Board NanoVNA-F NanoVNA-H4 I2-010
$16.14
Value: $16.14
(as of Jul 11,2022 04:39:05 UTC – Particulars)
NanoVNA Testboard package Vector community evaluation check board
NanoVNA Testboard package VNA Take a look at Demo Board
This check board package is used for NanoVNA or different vector community analyzer user-friendly measurement DIP and SMT units.
This check board comprises a DIP check circuit suitable with VNWA Testboard, and a set of 0805 and 1206 patch check circuits are added. The SMT circuit can’t totally think about varied check circumstances. Some elements of the check could must be reduce over. Please guarantee that you’ve got sufficient Fingers-on skill. This circuit board shouldn’t be soldered earlier than supply
, please convey your personal welding instruments, please construct a check circuit in line with your check wants, our retailer shouldn’t be liable for circuit steering.
Packing record:

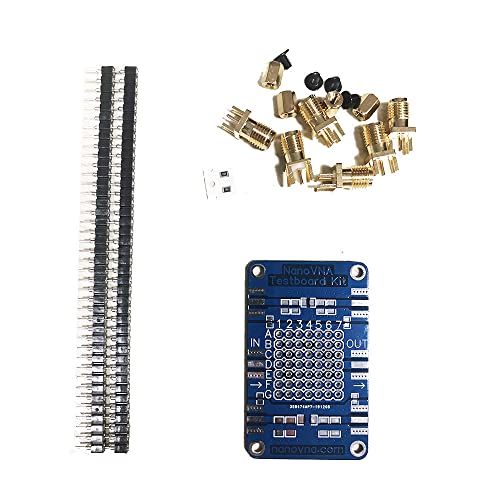

Testboard fundamental board x1
SMA feminine head x6
6mm copper stud x4
M2.5 screw x4
40pin spherical row seat x2
0805 49R9 Calibration resistance x2
Demonstration of measuring DIP units utilizing round busbars, matching resistance must be soldered on the again
Demonstration of measuring SAW filters utilizing SMT pads requires direct cutover of SMT circuit
Date First Accessible : February 18, 2022
Producer : ICToParts
ASIN : B09SVK91DS
