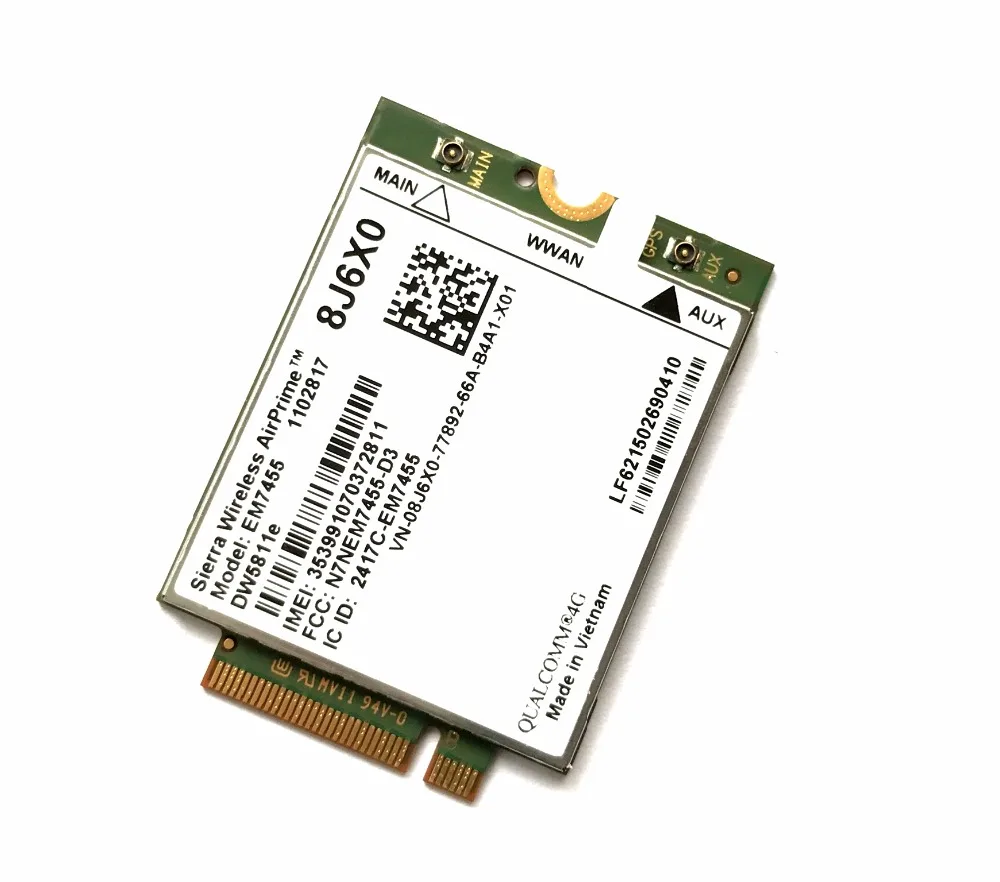

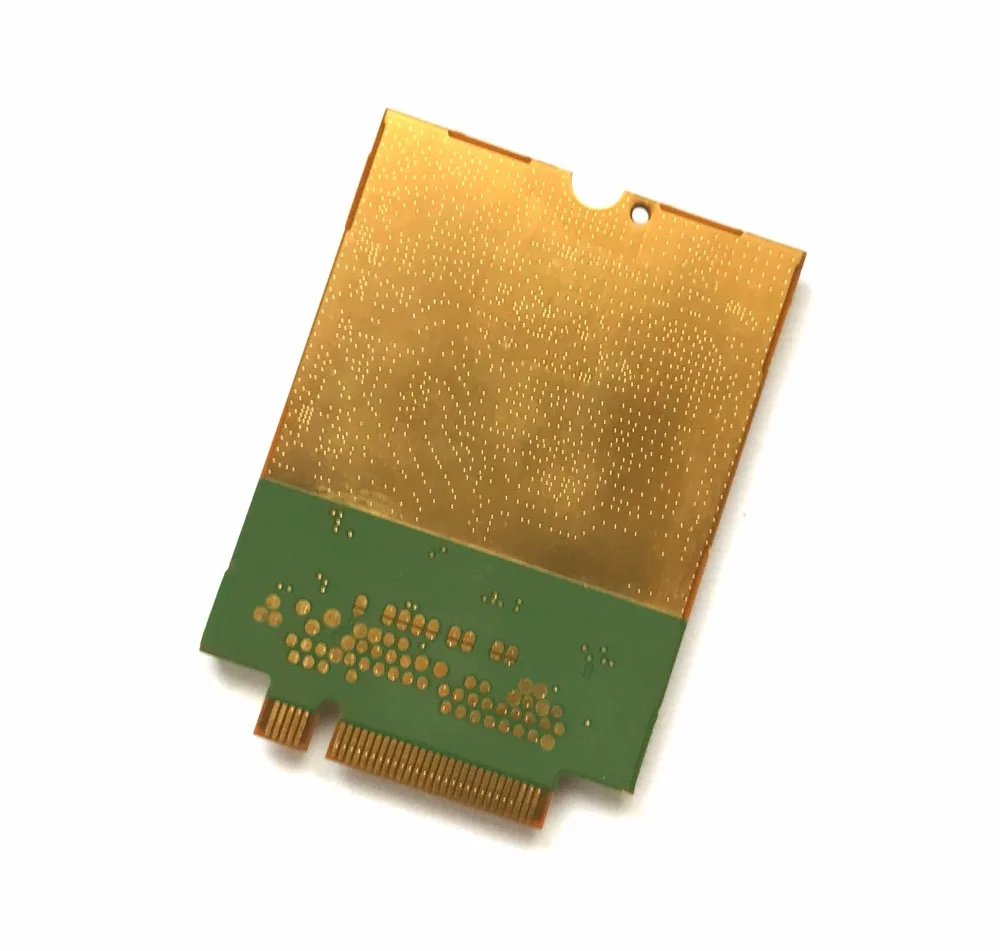

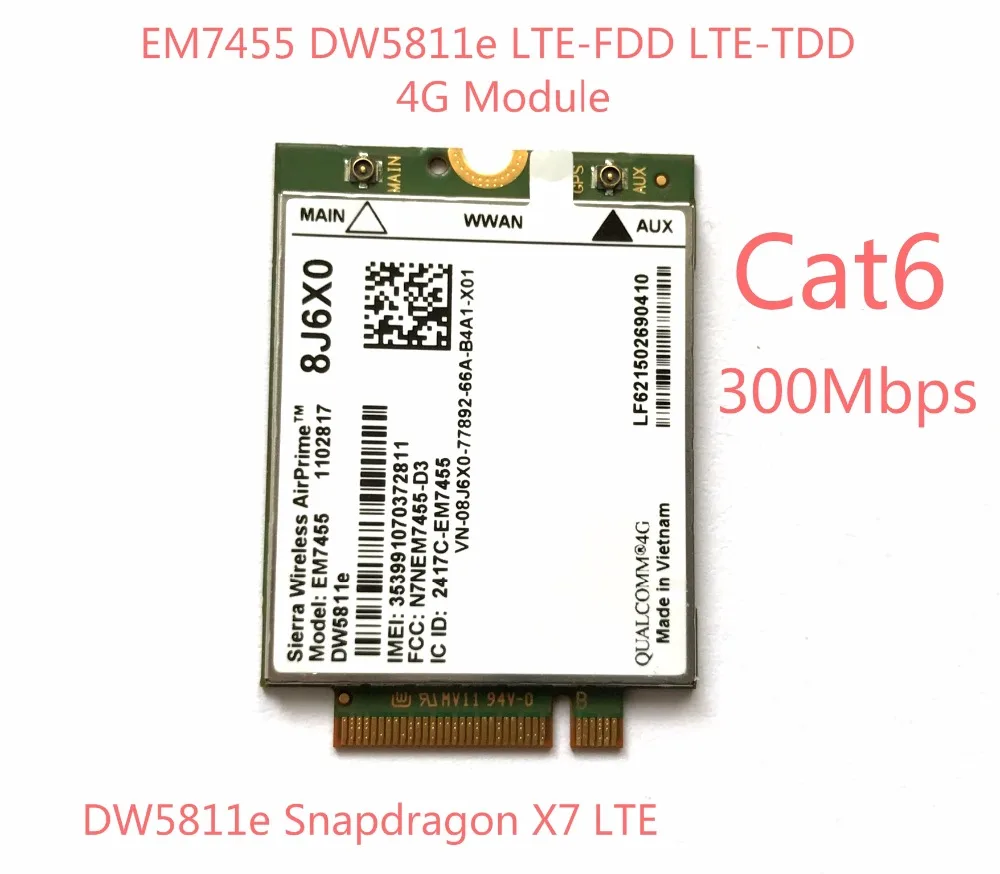

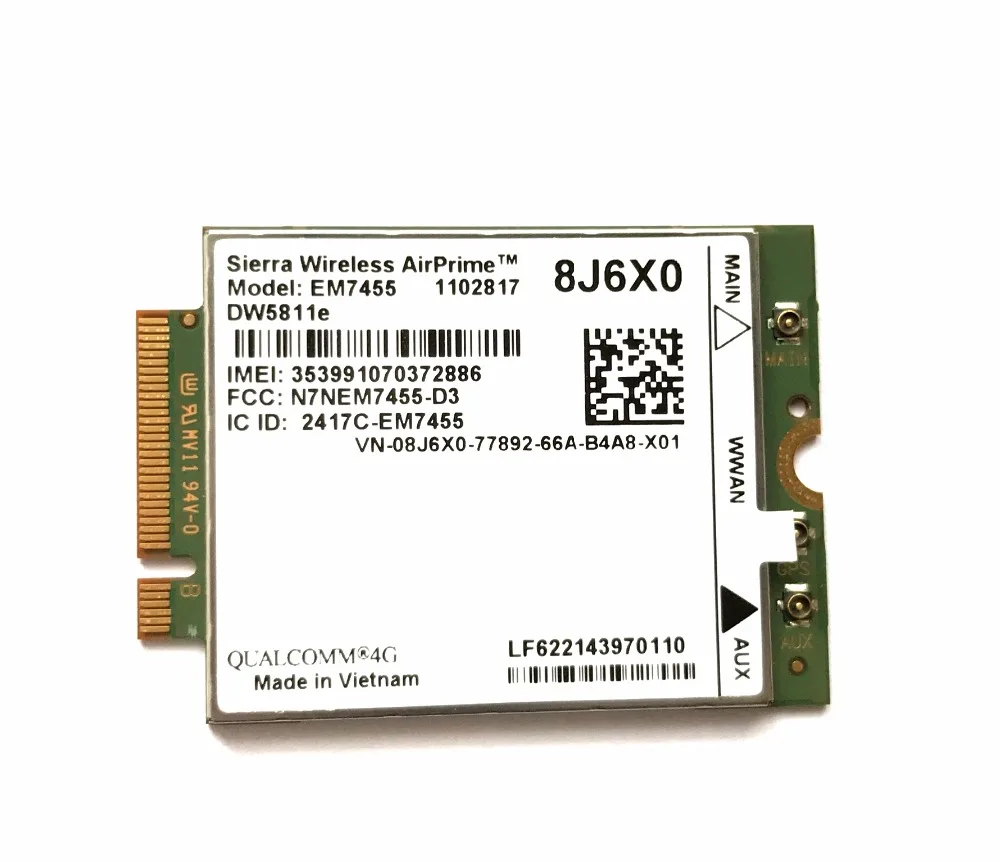

New EM7455 DW5811E PN 8J6X0 FDD/TDD LTE CAT6 4G Module 4G Card for E7270 E7470 E7370 E5570 E5470 Precision 7720 7520 3520 7510

Heat ideas: Help 2016 fashions of the next D E L L machines:

Dell Precision 7720

Dell Precision 7000 Collection(7510)

Precision 3520

Latitude 12 7000 Collection 2-in-1

Dell Precision 15 7000 Collection 7510

Dell Precision 7520

Dell Precision 17 7000 7710 Collection

Latitude 14 7000 collection E7470
Latitude 12 7000 collection E7270
Latitude 13 7000 collection E7370
Latitude 15 5000 collection E5570
Latitude 14 5000 collection E5470

Description :

EM7455 is a 4G-LTE cat 6 module (FDD & TDD), with a down hyperlink information price of as much as 300 Mbps, primarily for Europe, North and South America. Help for Service Aggregation (CA) and MIMO. Fall again to 3G-HSPA+DC with Rx range. A GNSS receiver is built-in. Supported frequency bands: 4G B1-B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 ; 3G B1-B5, B8. Type issue is M.2, 42 x 30 mm. Designed for top pace industrial M2M and cellular computing options, the AirPrime® EM74 collection embedded modules ship excessive pace connectivity on LTE and HSPA+ networks. Based mostly on the M.2 commonplace with a USB host interface, the EM collection modules provide a straightforward improve path to new community applied sciences and international entry to excessive pace networks. The M.2 formfactor is also called NGFF (New Era Type Issue).

Options

Area: Primarily for Europe, North America, South America

• Air interface: 4G-LTE cat 6 (FDD & TDD) with CA (Service Aggregation) and MIMO, 3G-HSPA+DC with Rx Range, GNSS
• 4G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B20 (800), B25 (1900), B26 (850), B29 (700), B30 (2300), B41 (2500/TDD)
• 3G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B8 (900)
• Peak Knowledge price: DL 300 Mbps, UL 50 Mbps
• GNSS (GPS, Glonass, Beidou, Galileo*): Qualcomm
• Type issue: M.2 module, 42 x 30 x 2.3 mm
• Provide Voltage: 3.3 V nominal
• Working Temperature: -40°C to +85°C

Management, Software program and Options

• Management choices: AT Instructions, QMI SDK, MBIM
• For optimum management the QMI SDK is beneficial
• Drivers: Android, Linux, Home windows
• Change networks anytime with as much as three totally different licensed firmware variants on board.

Connectors

• System connector: 75/67 place M.2
• Antenna RF connector: 3x IPEX MHF4 (Major RF, Aux RF, GPS with DC bias)

Interfaces

• 1x USB 3.0 and USB 2.0 Excessive Pace
• 1x Wake host
• 1x Wi-fi disable (important RF)
• 1x Wi-fi disable (GNSS)
• 1x System RESET
• 1x Energy ON/OFF
• 4x Antenna Management(muxed with GPIO 1-3)
• 3x Wi-fi COEX
• 1x Dynamic Energy Management, DPR
• 3x Config
• 1x LED driver output
• 2x SIM interface: 1.8/3V
• 1x Digital Audio

Audio

• Elective
• Digital audio: PCM/I2S
• 4G: VoLTE
• 3G: Circuit Switched Fall Again (CSFB voice)
