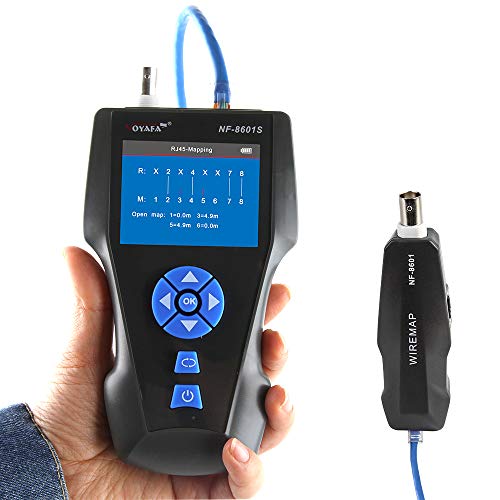

NOYAFA Community Cable Tester,NF-8601S TDR Wire Tester Rj11 Rj45 BNC Multifuncation Ethernet LAN Cable Tester, Exact Breakpoint Check, with PING / POE

Value: $142.99
(as of Jul 08,2022 11:21:09 UTC – Particulars)

Product Description

NF-8601S, upgrated primarily based on NF-8601, gives full cable testing on completely different class community, coax, or phone cable. The clever wiremap’ function exams for size, shorts, break up pairs, or opens and shows with an intuitive graphical interface the place a fault is positioned.(usingTDR techonology:Time Area Reflectometry). Moreover, discovering cables simpler and tracing with AC fliter, or finding community port utilizing hub blink function. It could actually additionally take a look at the presence of PoE and PING capabilities. all these make it a should instrument for every community technician.

NF-8601S Distant unit specs

Appropriate connectors: RJ11，RJ45, BNC
Dimension(LxWxD): 106x32x30mm

NF-8601S Transmitter specs

Indictor：LCD 320×240 mm, with backlightC
ready take a look at sorts： 1000 m
Max. distance of cable size ： 1000 m
Min. distance of calibration：50 m
Accuracy ： as much as 98% ( after calibration )
Appropriate connectors： RJ11, RJ45, PING/POE, BNC
Cable map indication： LCD (#1-#8)
Battery Sort： 3.7V lithium battery 1800mAh
Work temperature / humidity： 10℃ ~ -60℃ / 0℃~70℃
Dimension(LxWxD)： 173x92x34mm

NF-8601S Receiver specs

Cable looking： RJ11，RJ45, BNC
Forms of cable： ≥ 2 cores
Battery Sort: 3.7V lithium battery 1800mAh
Dimension(LxWxD): 183x58x35 mm

Compatiable with completely different cables

8+2 lan cable testing

Hub Blinks to find cable

PoE data testing

PING testing

3 completely different scan modes

Information export by way of reminiscence card

Rechargeable Lithium battary

NF-8601S Community Cable Tester

working concept
TDR

cable sorts
Cat5e,cat6,cat7,phone cable, coax cable, energy cable

fault distance
1. measure cable breakage & quick distance. 2. Breaks or shorts in multi-pins will also be measured precisely

testing modes
1. measure with major unit regionally 2. measure with major & distant unit

Calibration
Use/unuse button to open or shut the calibration information, no have to load the info once more. 1. use: primarily based on new calibrated information 2.unuse: primarily based on manufacturing facility clibration information.

testing modes
1.measure with major & distant unit

Protocol Compatiblity
Extra appropriate with completely different manufacturers of routers

Information save & export
1. Information might be saved into TF card and export to PC. 2. Information might be deleted by perform sorts

Distant
1 set

Bundle Dimensions ‏ : ‎ 10.79 x 7.91 x 3.62 inches; 1.72 Kilos
Batteries ‏ : ‎ 1 Lithium Steel batteries required.
Date First Out there ‏ : ‎ March 27, 2021
Producer ‏ : ‎ NOYAFA
ASIN ‏ : ‎ B097MZFB7H

1. Measures Cable size and show the space to fault. —2. Core troubleshooting options; size, distance to fault, graphical wire mapping, opens, Shorts
3. Poe presence: determine which pins are offering energy and detect how a lot voltage.—4. Ping perform to check Community efficiency, information packet, min & max Time.
5. Tone hint Cable with full AC interference Rejection, a lot simpler than different tracers on markets.—6. Hub blink for finding Community port by the flashing port gentle on a server/swap/Hub/Router port
7. Tf card included to export information to laptop (50 units, txt format) or on-line updating. —8. Voltage detector: included in receiver (90-1000V)
Any questions , pls contact NOYAFA Retailer first.
