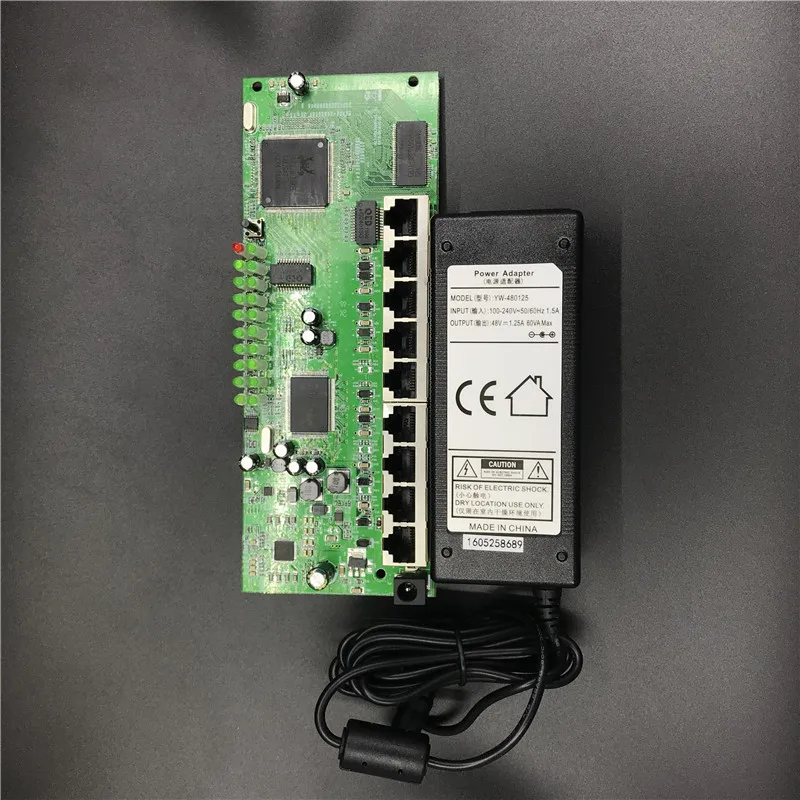

OEM 9 port POE router module producer t promote full Gigabit 10/100/1000M POE 48V2A router modules OEM wired router module

Characteristic
ANDDEAR-G-5 is an system work in community distribution field however with good router, WLAN controller ,PoE Swap and Authentication gateway features collectively

Used for 720/960/1080P HD ipc/HD TV/VoIP telephones/IP multimedias,IEEE802.11ac wifi gigabit

router/entry level/repeater/booster/CPE/bridge and many others

Clever to detect the consumer QTY, community site visitors, wi-fi sign power, then management consumer’s circulate to produce a freely web expertise

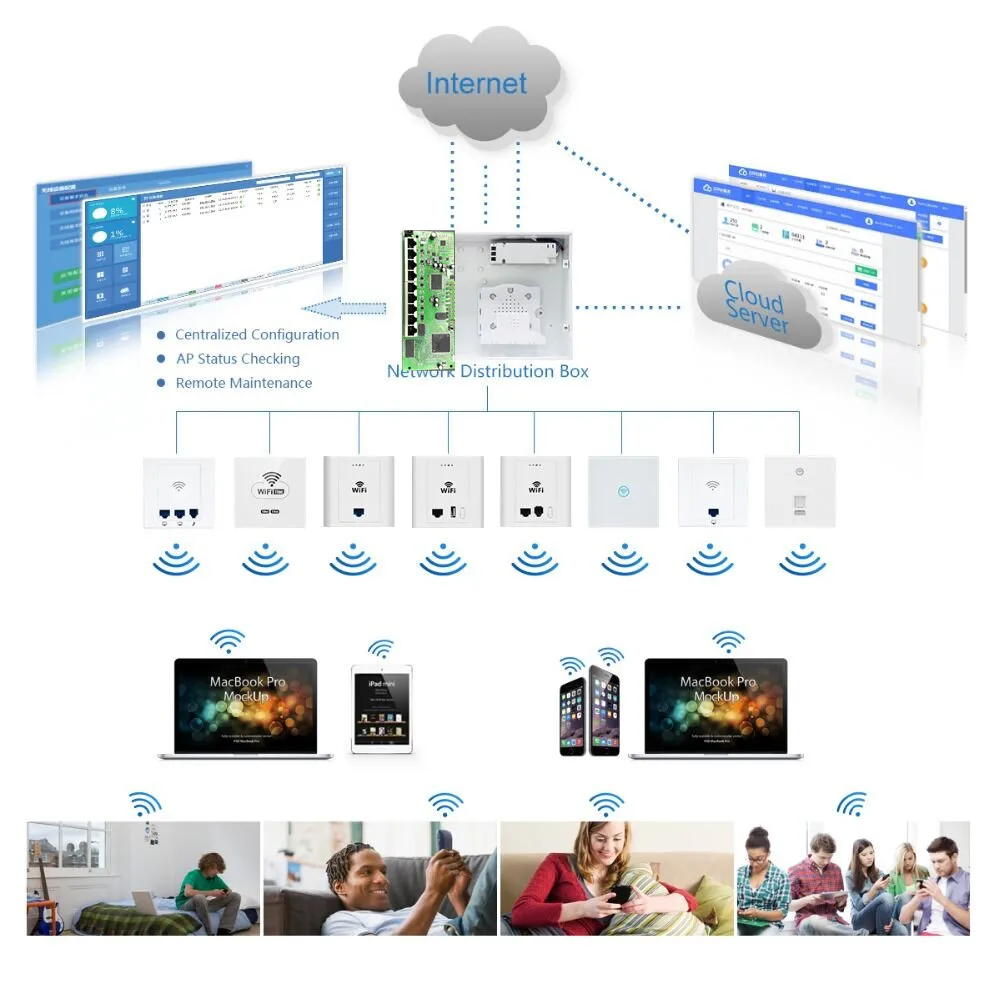

ANDDEAR-G-9 is built-in in networking distribution field and provide PoE energy, work with wi-fi AP router/entry level/repeater/booster/CPE/bridge and many others， all cable is embedded within the wall, safety and concealment, security, tidy and completely adjust to residence ornament.

ANDDEAR-G-5 assist distant upkeep from cloud server if out of service, members can remedy the issue at anyplace, any time

Element:

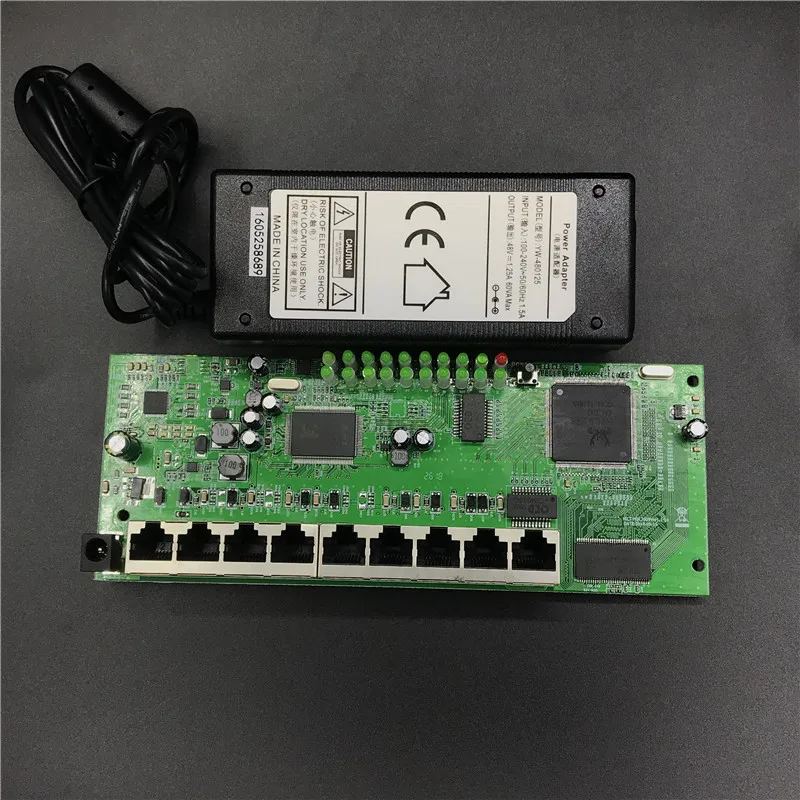

Chipset: RTL8198 Flash: 16MB, SDRAM: 256MB, OPENWRT assist
• 8 * 10/100M/1000Mbps LAN port, 1 * 10/100M/1000Mbps WAN port
• PoE assist,with 8*10/100/1000Mbps PoE ports, 48V2A energy provide PoE, complete 96W，

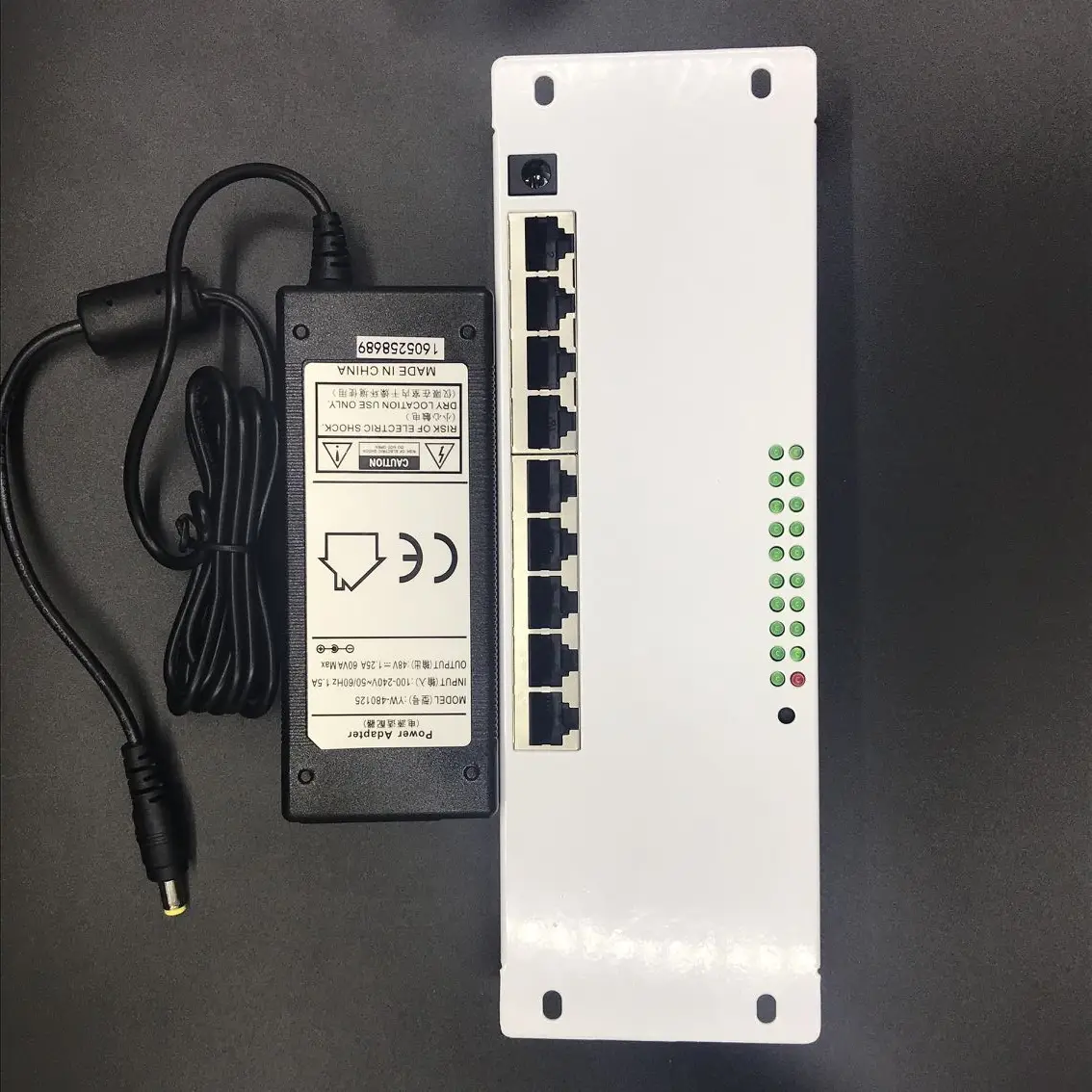

• Construct in Community/Digital distribution field, work with in wall wi-fi AP, set up hid, security and tidy, however full wi-fi protection
• Assist PPPoE/Static IP/Dynamic IP, work as Ethernet Router
• Work as Controller, Centralized to config and handle the linked Wi-fi AP
• Assist native authentication and cloud distant authentication, assist captive portal like Fb/Google/WeChat/SMS/Member

Requirements

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Quick Ethernet

IEEE802.3ab 1000Base-TX Gigabit Ethernet

IEEE 802.3x circulate management

IEEE 802.3af/at

AC enter

100-260V/50-60Hz

DC enter

Optionial 48V/2A 52V 2.5A

Every port output

30w max

protocol

CSMA/CD

Transmission Charge

Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port

Quick Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port

Gigabit Ethernet 1000Mbps(half duplex),2000Mbps(full duplex);1000BASE-TX:1488000pps/port

Topology

Star

Community Medium

10Base-T:Cat 3 or above Cat.3 UTP(much less 100m)

100Base-TX:Cat 5 UTP or above(much less 100m)

1000Base-TX:Cat6(much less 100m)

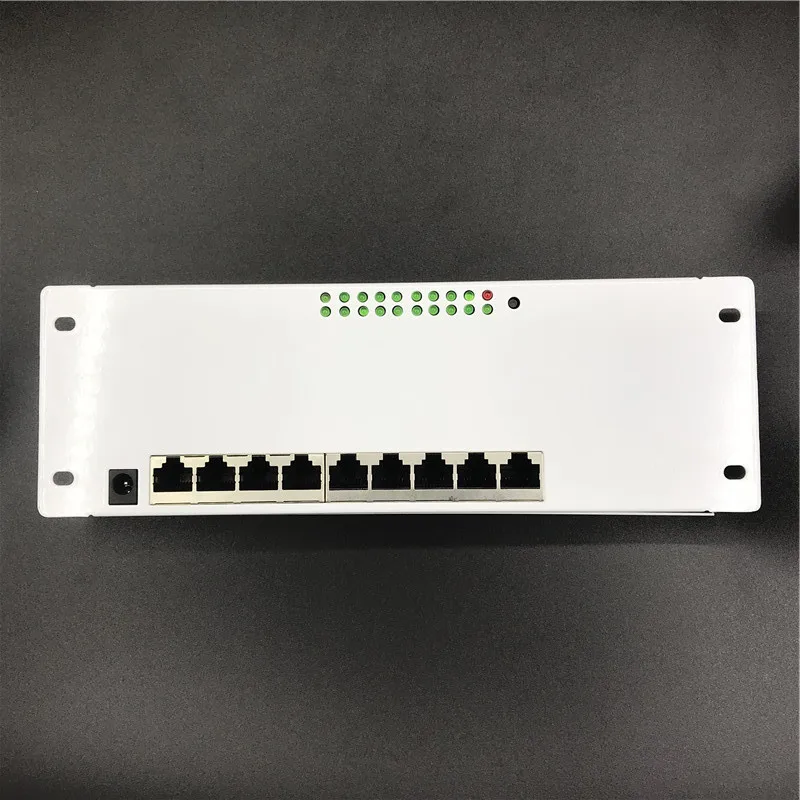

Variety of Ports
9 gigabit RJ45

POE ports

8 gigabit POE

Transmits Technique

Retailer-and-Ahead

Over Voltage/Present/Quick Safety

The output may be shorted completely with out harm

Temperature

Working Temperature -15c~60c(5F~140F)

Storage Temperature -40c~70c(-40 F~158 F)

Humidity

Working Humidity 10%~90% non-condensing

Storage humidity 5%~95% non-condensing

Swap capability

18G

LED Indications

Energy,POE,Hyperlink/Act
