Plugable 14-in-1 USB-C and Thunderbolt 3 Dock – Appropriate with Mac and Home windows, 96W Laptop computer Charging, 2x HDMI 2.0 and DisplayPort, 7x USB ports, Ethernet, Audio, SD/MicroSD

Value: $369.00
(as of Jul 10,2022 12:11:05 UTC – Particulars)

Product Description

A strong and versatile Thunderbolt 3 dock

The TBT3-UDZ is Plugable’s most versatile, highly effective and accessible docking station but. Its distinctive, unique design permits customers to attach as much as two 4K shows utilizing both HDMI or DisplayPort with out the necessity of exterior adapters – the primary Thunderbolt 3 docking station to supply this flexibility of show varieties. Utilizing the Intel Titan Ridge chipset and Plugable’s customized design, the TBT3-UDZ delivers a mix of extra port choices, quickest charging as much as 100W, and widest PC and Mac compatibility of any dock available on the market.

As much as 100W Energy Supply to host (96W Licensed)
2x DisplayPort and 2x HDMI ports (for a complete of two shows)
7x USB ports: 1x USB-C 10Gbps port, 1x USB 10Gbps port, 5x USB 5Gbps ports
1x SD card slot
1x MicroSD card slot
1x Gigabit Ethernet port
1x Mixture audio enter/output jack

With this dock, we got down to resolve buyer ache factors that customers have been coping with for a very long time now. These embrace the distinction between Thunderbolt 3 and USB-C, which have similar wanting ports, HDMI versus DisplayPort, USB-C or USB-A peripheral ports, and the totally different ranges of charging wattage supplied. The TBT3-UDZ eliminates any confusion between these various kinds of applied sciences by providing a simplified resolution that solutions these questions for you.

DisplayPort and HDMI

Plugable’s distinctive design permits customers to attach as much as two extra 4K shows along with your port of selection utilizing both HDMI or DisplayPort with out the necessity of exterior adapters.

That is the primary Thunderbolt 3 docking station to supply this flexibility of show varieties. Made to adapt to the person’s setup, the TBT3-UDZ is unparalleled in flexibility.

Vertical and Horizontal

The horizontal or vertical design of the TBT3-UDZ goes towards the grain of different docking stations. Match the dock in any area standing up or mendacity flat so there’s extra room for displays and peripherals, whereas holding a productive and clear workspace.

The dock features a sturdy, removable base for vertical orientation, which ensures a steady, sturdy setup regardless of what number of cables you join.

Thunderbolt 3 and USB-C

The TBT3-UDZ is constructed upon the most recent Intel Titan Ridge chipset, enabling the widest compatibility with Thunderbolt 3 and USB-C laptops available on the market. Thunderbolt 4 laptops are additionally supported.

Its twin connectivity removes frustrations from having to select a docking station for both kind of laptop computer whereas delivering unequalled efficiency.

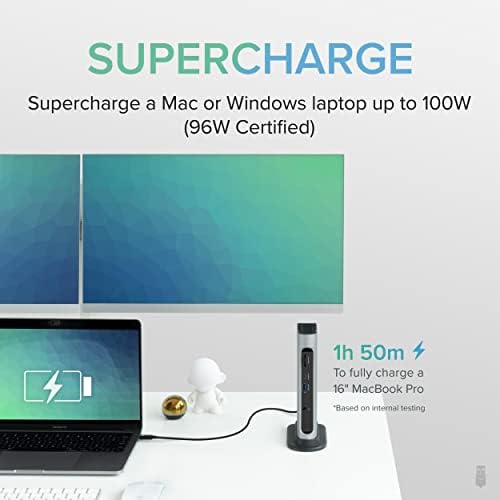

100W Charging

The TBT3-UDZ’s 100W* Energy Supply is the best charging wattage to be applied in any common Thunderbolt 3 docking station. With Apple now releasing notebooks with 96W chargers, reminiscent of the brand new 16” MacBook Professional, the TBT3-UDZ is the perfect docking station to pair with these gadgets for unequalled efficiency.

Cost your laptop computer at noticeably quicker speeds – so that you’ll have one much less factor to consider and you may say goodbye to your different energy provide.

*To strictly adjust to 100W regulatory limits with margin, Thunderbolt certification limits to charging to 96W.

Twin 4K Shows

Develop your workspace with 40Gbps Thunderbolt speeds and drive any mixture of two DisplayPort or HDMI displays.

When linked to a appropriate Thunderbolt 3 Mac* and Home windows programs:

Drive as much as two 4096×2160 @ 60Hz shows (decrease resolutions additionally supported)
*Apple M1 programs (non-Intel CPUs) solely help a single exterior show. Not DisplayLink appropriate

When linked to a appropriate USB-C system:

Home windows: Drive two 1920×1080 @ 60Hz shows or drive one 4096×2160 @ 30Hz show
12” MacBook Retina: Drive as much as two 4096 x 2160 @ 30Hz mirrored shows

Versatile Connectivity

The docking station options 14 ports making it one of the complete docking stations out there, superb for essentially the most demanding of professions that require a number of inputs and peripherals.

With a mixture of 5 USB 3.0 (5Gbps), one USB-A (10Gbps) and one USB-C (10Gbps) ports, you’ll have the ability to join your telephone or USB flash drive to the simply accessible entrance USB and USB-C ports, then join different USB peripherals reminiscent of a keyboard or mouse to the again of the dock.

Word: The USB-C port on the entrance of the dock helps knowledge switch solely (no video). When linked to a USB-C laptop computer the entrance USB-C and USB-A port could also be restricted to 5Gbps relying on host specs.

Compatibility

Thunderbolt 3 and Thunderbolt 4 Methods:

PC: Home windows 10 or 11 with Thunderbolt 3 or 4 and Energy Supply help (PD required for charging)
MAC: macOS Excessive Sierra 10.13 or later with Thunderbolt 3 (M1 Macs are restricted to a single prolonged show)
LINUX and CHROME OS: Not supported

USB-C Methods (No Thunderbolt):

PC: Home windows 10 or Home windows 11 with USB-C DisplayPort Alternate Mode video output help (required for video performance) and Energy Supply charging help (required for charging).

Multi-display capabilities will range relying on host system graphics card help.

MAC: 12” MacBook Retina fashions (restricted to a single prolonged show or twin mirrored shows as much as 4096×2160 @ 30Hz)
LINUX and CHROME OS: Not supported

Essential Notes:

Apple M1 primarily based MacBook, Mac Mini, and iMac programs (non-Intel processors) solely help a single exterior show through Thunderbolt ports (this can be a limitation of the M1 graphics card)
Some Thunderbolt 3 Home windows programs won’t help twin shows (just one DisplayPort stream). Please test along with your system producer to confirm twin shows through Thunderbolt 3 are supported
Not all programs with USB-C or Thunderbolt 3 help charging from these ports. Use of separate laptop computer energy adapter could also be required. Please test along with your system producer to confirm Energy Supply charging is supported
Dock capabilities are diminished when linked to USB-C solely programs. When utilizing the dock in USB-C mode (no Thunderbolt help from system) the entrance 10Gbps USB-C and USB-A ports will probably be restricted to 5Gbps operation. Show help may be restricted to a most of two 1080p @ 60Hz shows (dependent upon system graphics card DisplayPort implementation)
Home windows programs might require up to date Thunderbolt drivers, Thunderbolt NVM firmware, system UEFI BIOS, and graphics card drivers from the system producer (Apple programs present this robotically)

Laptop computer compatibility
Thunderbolt 3 and USB-C
Thunderbolt 3 and USB-C
Thunderbolt 3 and USB-C
USB4, Thunderbolt 4 / 3, USB-C

Energy Supply to host
100W (96W Licensed)
60W
100W (96W Licensed)
60W

Variety of shows supported
2
2
2
3

Video output varieties
2x DisplayPort or HDMI
2x DisplayPort
1x HDMI, 1x DisplayPort (or second HDMI with included adapter)
2x HDMI 2.0, 2x DisplayPort 1.2

Downstream Thunderbolt 3 port
0
0
0
0

USB 3.0 ports
6
3
3
4

SD/Micro SD
✓

Orientation
Vertical or Horizontal
Horizontal
Horizontal
Vertical

100W MAX POWER – The TBT3-UDZ laptop computer dock delivers the quickest laptop computer charging price for licensed Thunderbolt gadgets – as much as 100W (96W licensed), whereas additionally safely charging laptops needing 85W or much less. Maximize compatibility with Thunderbolt 3 and USB-C programs
14-IN-1 EXPANSION – Thunderbolt 3 dock expands to 2x HDMI or DisplayPort displays, 1x USB-C (10Gbps), 1x USB-A (10Gbps), 5x USB 3.0 (5Gbps), Gigabit Ethernet, Audio In/Out, SD/microSD all via a single 2.6ft Thunderbolt 3 cable (40Gbps)
VERSATILE DUAL 4K DISPLAYS – This laptop computer docking station’s twin monitor design is the primary Thunderbolt dock to supply a selection between twin HDMI and DisplayPort shows. Drive as much as two 4k 60Hz shows through Thunderbolt 3 or two 1080p 60Hz shows through USB-C
MAC AND WINDOWS – Appropriate with Intel CPU Thunderbolt 3 Macs just like the MacBook Professional 16″ and Home windows programs with Thunderbolt 3 or USB Sort-C just like the Floor Professional 7, Floor Laptop computer 3, Lenovo Yoga, HP Spectre, Dell XPS (USB-C and Apple M1 programs will function at diminished performance)
2 YEAR WARRANTY – We love our Plugable merchandise, and hope you’ll too. All of our merchandise are backed with a 2-year restricted components and labor guarantee in addition to Seattle-based electronic mail help
