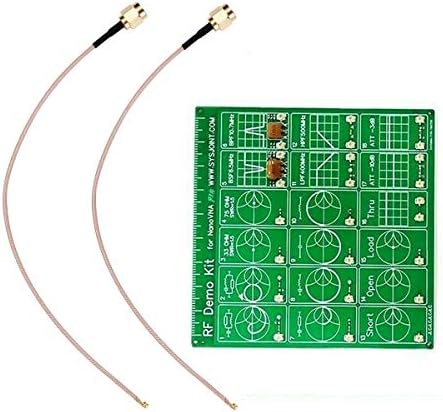

RF Demo Equipment, NanoVNA-F Vector Community Analyzer Kits RF Tester Board Filter Attenuator Tester Module

Value: $22.52
(as of Jul 10,2022 01:16:10 UTC – Particulars)

Specification:
Situation: 100% Model New
Merchandise Kind: RF Demo Equipment
Materials: PCB
Measurement: Approx. 10x10cm / 3.9×3.9in

Operate:
1. RLC sequence and parallel circuit 1
2. RLC sequence and parallel circuit 2
3. 33 ohm resistance, SWR standing wave = 1.5
4. 75 ohm resistance, SWR standing wave = 1.5
5. BSF ceramic entice, middle frequency 6.5MHz
6. BPF ceramic filter, middle frequency 10.7MHz
7. RC sequence circuit
8. LC sequence circuit
9. Capacitor
10. Inductance
11. LPF selfmade low-pass filter, 3dB bandwidth 400MHz
12. HPF selfmade high-pass filter, 3dB bandwidth 500MHz
13. Quick circuit calibration circuit
14. Open circuit calibration circuit
15. 50 ohm load calibration circuit
16. Straight via
17. 10dB attenuation circuit
18. 3dB attenuation circuit

Package deal Listing:
1 x RF Demo Equipment
2 x Adapter Cable
Date First Obtainable ‏ : ‎ August 1, 2020
Producer ‏ : ‎ Walfront
ASIN ‏ : ‎ B08F2QHPPS

STABLE PERFORMANCE :-Steady efficiency, glorious high quality, primarily used for studying vector community analyzer
EASY TO OPERATE :-Beautiful workmanship, excessive reliability, compact and light-weight, simple to function
DURABLE AND STABLE :-This RF take a look at board adopts high-quality PCB, with good sturdiness and stability
MEASURE 6.5M CERAMIC NOTCH FILTER :-It may be used with NanoVNA-F to measure 6.5m ceramic notch filter with 3dB bandwidth of 400MHz
MEASURE THE SELF-MADE LOW-PASS FILTER :-It may be used with NanoVNA-F to measure the self-made low-pass filter
