SFRM72-FU-DL 720K 5V DC USB SSD Floppy Drive Emulator

Value: $47.69
(as of Jul 10,2022 17:01:21 UTC – Particulars)

Floppy Driver:

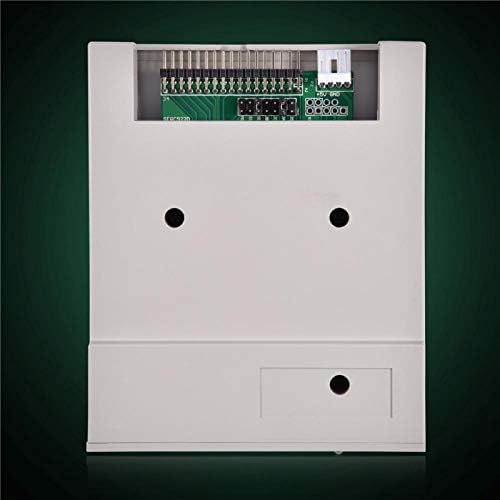

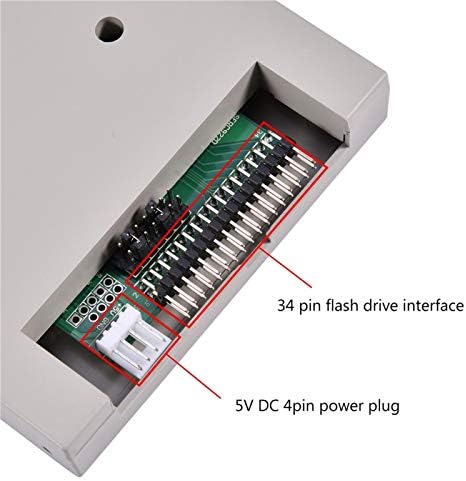

Interface: 34 pin floppy driver interface, 5V DC 4 pin energy plug
Format of disk: Cylinders: 80 Tracks: 160 Sectors/Observe: 9 Bytes/Sector: 512 Information
Switch price: 500 kbps
Encoding technique: MFM
Panel:
8 phase numbers: Signify partitions quantity
Inexperienced LED: Standing of learn and write operation
USB port: Join USB flash drive
Button:
When no USB flash drive plugged on emulator:
Left button used to rise ten-digit, proper button used to rise single-digit, press 2 button collectively to rise hundred-digit, when the hundred-digit is ‘b’, the picture mode used.
When an USB flash drive plugged on emulator:
Left button used to switch knowledge from built-in reminiscence into USB flash drive, proper button used to switch knowledge from USB flash drive into built-in reminiscence.
Firmware model of emulator:
Hold pressed 2 button collectively, energy on, 8 phase numbers will show firmware model and knowledge of emulator to detect totally different mannequin.
Error Code:
E0: No specified file in USB flash drive
E16: Constructed-in reminiscence fault
Jumper Setting:
J5: —
JA: Set to generate READY sign on 34pin of floppy driver interface
JC: —
JB: —
S0: Driver choose 0
S1: Driver choose 1
MO: Motor

Specs:
Mannequin: SFRM72-FU-DL
Compatibility: Appropriate for Electrical Organ with 720KB floppy drive
Voltage: 5V DC
Interface: USB port, 4 pin energy plug, 34 pin plug
Housing materials: ABS

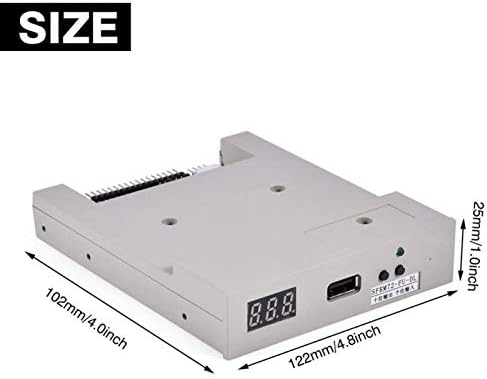

Measurement (L x W x H): Approx. 122 x 102 x 25mm / 4.8 x 4.0 x 1.0inch
Coloration: Grey (Proven as the image)
Bundle weight: 98g

Bundle Included:
1 x USB Emulator

Be aware:
Please observe that the brand new kind and previous kind of this product shall be despatched randomly, and be sure to won’t thoughts earlier than ordering.

34PIN FLOPPY DRIVE INTERFACE：SFRM72-FU-DL 720K 5V DC USB SSD floppy disk simulator has a 34pin floppy drive interface, 5V DC energy provide, straightforward to put in and straightforward to make use of.
720KB BUILT-IN FLASH MEMORY：The USB emulator has a 720KB built-in flash reminiscence in FAT12 format, which is used to cache knowledge from the USB flash drive and might retailer sufficient knowledge.
SUPPORTING DOCUMENTS：The USB floppy disk drive emulator helps 100 disk picture information for computer systems with non-FAT disk codecs, equivalent to make boot disks.
SUITABLE FOR DIFFERENT JUMPERS：The 720 floppy disk usb emulator helps lengthy file names in 999 folders and 4-level directories, and has jumpers appropriate for various machines.
USB FLASH DRIVE：Use an unusual USB flash drive because the medium for transferring the design, supporting lengthy file names in 999 folders and 4-level directories.
