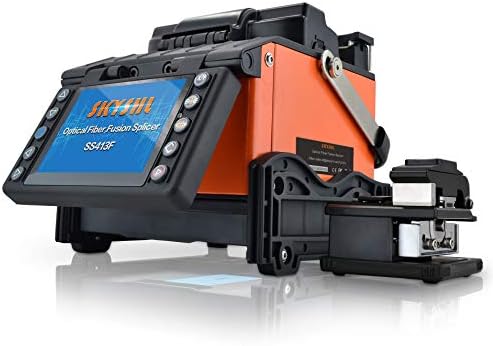

SKYSHL Core Alignment Optical Fiber Fusion Splicer (With 4pairs Electrodes) FTTH Auto Fiber Splicing Machine for SM MM DS NZDS (SS413F)

Value: $1,089.00
(as of Jul 08,2022 19:13:02 UTC – Particulars)

Product Description

Core Alignment Opical Fiber Fusion Splicer

The SS413F is a core alignment fusion splicer setting a brand new customary out there for fusion splicing. The SS413F fusion splicer is full of a complete host of recent and enhanced options particularly developed with the target of enabling the person to work sooner with larger precision. General splice course of time has been considerably decreased. This has been achieved with a mix of enhancements to the response time of the automated wind protectors and automatic heater, new fibre retention clamps, improved common sheath clamps and a redesigned inner construction that matches the safety sleeve to the fusion splice level which permits splicing to be achieved with out the necessity of the person to the touch the SS413F as soon as the method has began.

The SKYSHL SS413F is a superior single fiber core alignment fusion splicers which possesses superior picture processing expertise,in the meantime, it has excessive precision CMOS digicam, lenses and servos which give correct core to core alignment no matter core-cladding concentricity error[Actual average splice loss:0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)].

SS413F Opical Fiber Fusion Splicer Key Options:

Market main excessive precision and correct core alignment expertise with superior picture processing.
Computerized splicing, automated heating, automated focusing, automated temperature compensation, automated Arc calibration, it is rather easy to make use of.
6 seconds quick splicing (quick mode), 15 seconds quick heating (quick mode).
Improved automated wind protector design which reduces general splice time however will also be used manually.
Common sheath clamps for normal 250 um fibre in addition to 900 um unfastened tube fibre varieties.
A totally redesigned multi-function carry case and workstation.
4 in 1 fiber holder.
Outfitted with 4 pairs of electrodes (4*8000 instances of splcing), totally meet the wants of labor.
Excessive capability 10.8V 5200mah lithium-ion battery (as much as 300 splices).

Excessive efficiency fusion Splicer

The SKYSHL SS413F fusion splicing machine makes use of a robust high-speed motor and superior CPU energy enable quick 6 second splice time and 16 second warmth time (60mm warmth shrinkable tube), and it saving engineers time, in the meantime, A robust, excessive propulsion motor helps guarantee steady splicing for essentially the most inflexible indoor and drop fiber.

SS413F is a wonderful core-aligned fiber fusion splicer. Through the splicing course of, the system will test the core place and eccentricity, the standard of the fiber finish face, the fiber axis place and dirt detection. If the predefined restrict worth is exceeded, an automated warning message shall be despatched to the person. On the similar time, SS413F may also carry out automated monitoring of environmental circumstances (equivalent to temperature, air strain and air humidity). Carry out automated arc compensation to compensate for these environmental results. After the splicing is accomplished, SS413F can carry out splicing loss evaluation and tensile testing to test splicing factors and mechanical stability. Even when totally different fibers or fibers with excessive core eccentricity are used, glorious splicing results might be obtained.

SS413F Core Alignment Optical Fiber Fusion Splicer Key Options:

Relevant fibers&Precise common splice loss:0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS).
Fiber diameter:Cladding diameter:80-150μm; Coating diameter:100-1000μm.
Fiber cleaved size:8-16mm (Coating diameter:250μm).
Typical splicing time:Typical 6s (customary SM fiber).Tube typical heating time:Typical 16～25s.
Safety sleeve size:20mm-60mm.Return loss:>60dB.
Storage of splice consequence:10000 outcomes, 24parameter per consequence , 100 set of photographs.
Fiber picture magnification:120X (X or Y view)，60X (X and Y view) .
Battery capability:Typical 300 cycles (splice/tube warmth with Li-battery ) .
Monitor:3.5 inch shade LCD monitor.
Electrode life:4*8000(4pairs of Electrodes).
Energy provide:AC 100-240V with AC adapter DC13.5V;Li-battery (10.8V 5200mAH) .
Dimension:122mm(L)×148mm(W)×130mm(H) . Weight:1.4Kg excluding battery/1.7Kg together with battery.

Appropriate with A number of Fibers

The SKYSHL SS413F is extensively suitable with SM (ITU-T G.652, G.657A1 and G.657A2), MM (ITU-T G.651), DSF (ITU-T G.653), Reduce-off Shifted Fiber (ITU-T G.654, Massive Space sort), NZD (ITU-T G.655) and BIF/UBIF (Bend Insensitive Fiber ITU-T G.657B3), the SS413F Fusion Splicer is extremely efficient to be used in information facilities, long-haul operations, Metro, LAN, and FTTx fiber.

Clever, Pleasant and Sturdy Design

The interface design of SS413F may be very pleasant, you possibly can set the parameters very simply. On the similar time, SS413F has raised the extent of automation to a brand new level–Computerized fiber identification, automated focus, automated splicing, automated heating, automated calibration, automated arc compensation,and so forth.You solely want a number of easy steps to attain high-precision fiber splicing.

Whereas a 3.5-inch extensive LCD display straightforward and intuitive operation, For improved visibility in low-light circumstances, 4 LED lights illuminate your entire splicing chamber. The SS413F Fusion Splicer can also be designed to fulfill the pains of use within the discipline. Whereas a considerably decrease profile and lighter weight improve portability, SS413F splicer’s cover design and ruggedized physique present resistance to shock, water and dirt publicity.

Massive Capability Battery

SKYSHL SS413F totally understands the wants and worries of customers working open air, and supplies a set of high-quality large-capacity rechargeable lithium batteries in line with the precise wants of shoppers. A full cost can obtain 300 welding and heating operations, principally assembly the wants of customers working open air.

Huge Software

Optical fiber community has the traits of lengthy transmission distance, quick transmission velocity, low loss, and powerful anti-interference skill. As an increasing number of industries connect significance to intelligence and knowledge expertise, along with conventional broadband optical fiber networks, Increasingly information is transmitted by means of optical fiber networks in some rising fields(Reminiscent of radio and tv, railway, transportation, electrical energy, authorities affairs, and so forth.).

SS413F sequence optical fiber fusion splicer is a vital device for the upkeep and development of optical fiber networks. It is extremely appropriate for radio and tv networks, clever energy networks, clever transportation programs, CCTV/CATV networks, authorities workplace networks, monetary networks, FTTH, LAN, information facilities and cloud computing community and so forth..

SS413F Optical Fiber Fusion Splicer Purposes:

LAN,WAN for the aim of telecommunication networks.
CCTV/CATV Programs.
Set up of Fiber optic community.
Upkeep of optical fiber community.
Lengthy distance optical networks.
FTTH optical networks.
Metro community.
Information facilities.
Different fiber optic networks.

Wealthy Capabilities and Equipment

SS413F present customers with a wealth of equipment, together with 4 pairs of electrodes can obtain 4*5500 splicing operations, 10.8V 5200mah rechargeable lithium battery can work constantly for 15 hours, 16 factors tungsten blade can minimize 48,000 instances.

SS413F Optical Fiber Fusion Splicer Package deal Checklist:

1*ABS Engineering field+1*SS413F Fusion Splicer+1*Oxford Strap+1*Miller Fiber Stripper+1*Optical Fiber Stripper+1*Kevlar Scissors+1*Alcohol Bottle(No Alcohol)+1*Plastic Tweezers+1*Cleansing Brush+8*Spare Electrodes+1*Fiber Cleaver Information+1*Fiber Cleaver+1*Hex Screwdriver+1*Manufacturing unit Take a look at Report+1*Packing Checklist+1*SS413F Person’s Handbook+1*10.8V 5200mah Lithium Battery+1*100-240V Energy Adapter.

High quality Management and Our Service

SKYSHL has greater than 10 years of expertise in manufacturing optical fiber inspection gear equivalent to fusion splicers, OTDRs, and optical energy meters. We’ve a wonderful R&D workforce and after-sales workforce. We regard product high quality as life, and strictly comply with ISO9001 for manufacturing administration. Your complete manufacturing course of is strictly managed, and all merchandise have undergone excessive temperature take a look at, low temperature take a look at, vibration take a look at, cost and discharge take a look at earlier than leaving the manufacturing unit.

On the similar time, we proceed to enhance our service and have a workforce {of professional} service personnel on standby 24 hours a day to offer every buyer with a full vary {of professional} technical steerage.

We offer detailed product info and utilization movies for all merchandise, equivalent to person manuals, take a look at experiences, calibration certification, operation movies, upkeep movies, and so forth., in order that clients can begin working instantly after they get the merchandise.

We offer a free substitute service for 3 years. Whenever you encounter issues, we’re the strongest backing for our clients.

★Core Alignment Fusion Splicer★–The SKYSHL SS413F is a superior single fiber core alignment fusion splicers which possesses superior picture processing expertise,in the meantime, it has excessive precision CMOS digicam, lenses and servos which give correct core to core alignment no matter core-cladding concentricity error[Actual average splice loss:0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)].
★Quicker Splicing and Heating★– The SKYSHL SS413F fusion splicing machine makes use of a robust high-speed motor and superior CPU energy enable quick 6 second splice time and 16 second warmth time (60mm warmth shrinkable tube), and it saving engineers time, in the meantime, A robust, excessive propulsion motor helps guarantee steady splicing for essentially the most inflexible indoor and drop fiber.
★Computerized Fiber Identification★—The SKYSHL SS413F is extensively suitable and mechanically acknowledges SM (ITU-T G.652, G.657A1 and G.657A2), MM (ITU-T G.651), DSF (ITU-T G.653), Reduce-off Shifted Fiber (ITU-T G.654, Massive Space sort), NZD (ITU-T G.655) and BIF/UBIF (Bend Insensitive Fiber ITU-T G.657B3), the SS413F Fusion Splicer is extremely efficient to be used in information facilities, long-haul operations, Metro, LAN, and FTTx fiber.
★Pleasant and Sturdy Design★– Whereas a 3.5-inch extensive LCD display straightforward and intuitive operation, For improved visibility in low-light circumstances, 4 LED lights illuminate your entire splicing chamber. The SS413F Fusion Splicer can also be designed to fulfill the pains of use within the discipline. Whereas a considerably decrease profile and lighter weight improve portability, SS413F splicer’s cover design and ruggedized physique present resistance to shock, water and dirt publicity.
★Wealthy Capabilities and Equipment★– SKYSHL SS413 has loads of clever capabilities equivalent to auto focusing, auto splicing, auto heating, auto calibrating, and so forth., Work whenever you get it; in the meantime, we offer customers with a wealth of equipment, together with 4 pairs of electrodes can obtain 4*8000 splicing operations, 10.8V 5200mah rechargeable lithium battery can work constantly for 15 hours, 16 factors tungsten blade can minimize 48,000 instances.
