SPEEDWOLF Optical Fiber Fusion Splicer, FTTH Core Alignment Optical Fiber Splicing Machine with 6PCS Electrodes + 16blades Fiber Cleaver + Fiber Stripper

Value: $1,099.00
(as of Jul 08,2022 18:09:43 UTC – Particulars)

Product Description

SPEEDWOLF Know-how is an organization specializing within the manufacturing of Optical Fiber Fusion Splicer, Optical Fiber Cleaver, OTDR, Mild Supply, Optical Energy Meter, and Optical Fiber Fixture, and different optical communication instrument high-tech enterprises.

Firm manufacturing of FS16,FS18,FS19 sequence fiber splicing machine and OTDR32F sequence OTDR just isn’t solely extensively utilized in China Telecom, China Cell, Unicom, radio and tv main home telecommunications operators, but additionally exported to South America, Europe, Russia, Southeast Asia and Africa and different elements of the world.

SPEEDWOLF FS18 Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, and so on. Splicing takes solely 8 seconds, and heating takes solely 15 seconds. The machine is optimized for splicing beneath extreme climate circumstances, it is protected against stress and shock. It might be powered from 100/240V AC, or utilizing a battery (included). the place you might place the wanted instruments: a cleaver, a stripper, sleeves, and so on.

Parameter

Splicing Fibers Sort:SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Sequence;
Common Splice Loss:0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF);Return Loss:≥60dB;
Splicing time: <9s;Heating time<28s (adjustable);
Fiber Alignment: Core to Core Alignment by PAS know-how;
Electrodes Life:>8000 instances, simple to exchange electrodes;
Energy provide:In-built lithium battery 5200mAh 10.9V; AC adaptor: 100～240V,50/60Hz;DC adaptor: 12V voltage
Battery Life:Biking cost 300-500 instances, simple to exchange battery;300 cycles splicing and heating
Fiber Picture/ Magnification:X 300/200
Language:English, Spanish;
Weight:4.2LB;Dimension:133(L)×155(W)×153(H)mm / 5.2(L)x6.0(W)x5.9(H)Inch

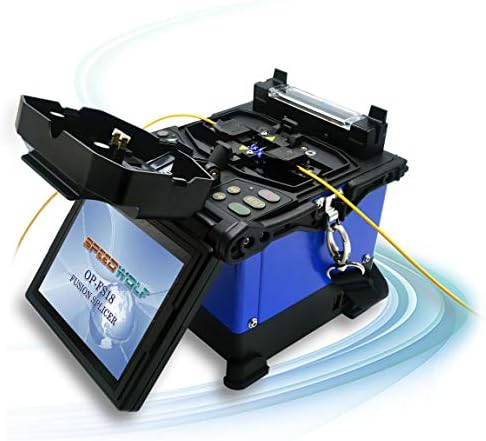

FS18-C Core to Core Alignment Fusion Splicer

SPEEDWOLF FS18-C fusion splicer undertake high-speed picture processing know-how and particular precision- positioning know-how,robotically end the entire technique of fiber fusion in 8 seconds usually, LCD monitor shows all steps of fiber fusion clear at a look.

Extensively used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and naked fiber size 16mm roughly. Ideally suited instruments for building and upkeep of fiber and cable in each area and laboratory functions.

Bundle Embrace

1*Fusion Splicer,1*Fiber Cleaver,1*Miller Stripper,1*Fiber Stripper,1*100-240V AC adapter,1*10.8V 5200mah Li Battery,4*Spare Electrodes(Whole 6 pcs),1*Cooling Tray,1*Plastic Carrying Case,1*Brush

FS18-C Optical Fiber Fusion Splicer Options

Excessive-resolution true colour Rotary outdoor-enhanced anti-glare 5.0 inch TFT LCD show.excessive distinction and vividness. Simultaneous show of X and Y axes.
The superior core to core fiber profile alignment system(PAS).
Actual time calibrating system,parameter needn’t be adjusted.
X/Y axes had been displayed in the meantime,300 X or Y view, 200 X and Y view.
Decreased splicing time and Heating time–Solely 8 seconds splicing time, solely 30 seconds Warmth-Shrinking.
Battery capability was show in actual time, exactly.
Constructed-in 10.8V 5200mah excessive capability battery, assist 200-500 instances splicing and heating, to satisfy one days’work.
6pcs Lengthy Electrode Lifetime, Every pair electrode life is as much as 8000 instances,with out splicing high quality loss.
The brand new wind-protective lid, heater, fiber holders design. Elevated waterproof, mud and shock resistance, could also be used beneath extreme atmosphere circumstances. Max wind velocity of 20m/s.
Three Splicing modes: auto, half-auto, guide.
Constructed-in tremendous high-brightness LED provide comfort for day and night time work.
Auto calculate splicing loss,Splice Loss: SMF/BIF: ≤0.02dB(typ.); MMF: ≤0.01dB(typ.); DSF/NZDSF: ≤0.04dB(typ.)
Small bulk and light-weight weight, only one.98kg embrace battery.
New snug Excessive-strength engineering plastics carrying case,It may possibly defend the fusion splicer and keep away from the harm of the fusion splicer.in the meantime,The case could also be used as a easy working desk. Operation guide is put in into the splicer.
4000 outcomes Storage

Splicing Fiber Sort

SPEEDWOLF FS18-C Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, and so on.

10.8V 5200mah Li-ion Battery

SPEEDWOLF FS18-C Fusion Splicer built-in 10.8V 5200mah excessive capability battery, assist 200-500 instances splicing and heating after full cost, to satisfy one days’work. and it’s simple to exchange battery.

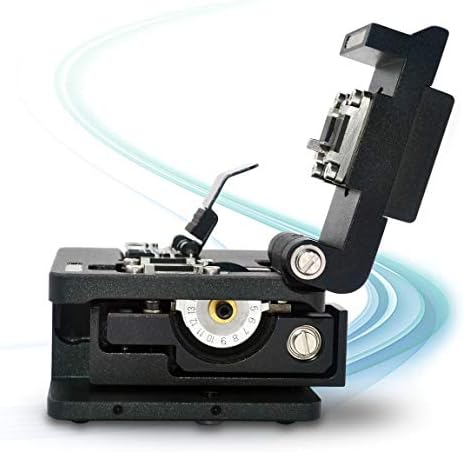

Fiber Cleaver with 16Surface Blade

Optical Fiber Cleaver is imported from Korea developed a know-how for Splice can meet the heat-fusible fiber a multi-purpose cutters;and it utilizing high-strength blade floor 16 factors, longer life, comes with triple fixtures may be incision line, pigtails and naked fiber.

Mini Dimension

FS18-C have small dimension and light-weight weight—The scale is just 133(L)×155(W)×153(H)mm / 5.2(L)x6.0(W)x5.9(H)Inchinch,the load is only one.98KG together with batter.

Plentiful Equipment

1*Fusion Splicer,1*Fiber Cleaver,2*Fiber Stripper,1*100-240V AC adapter,1*10.8V 5200mah Li Battery,4*Spare Electrodes(Whole 6 pcs),1*Cooling Tray,1*Plastic Carrying Case,1*Brush

High quality Management

The hallmark of SPEEDWOLF is high quality. All of our commitments,actions and merchandise have to be acknowledged as an expression of high quality. Our most necessary criterion of high quality is the satisfaction of our prospects.

【Core Alignment Know-how】–SPEEDWOLF FS18-C fusion splicer has two excessive precision CMOS Digicam which offer correct core to core alignment no matter core-cladding concentricity error. Additionally, the CMOS Digicam enable the splicer to discriminate between fiber sorts.
【Extensive Compatibility】–SPEEDWOLF FS18-C is suitable with ITU-T SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) ED for telecommunications, radio and tv, railway, electrical energy, navy, analysis institutes for optical fiber communication building and upkeep.Extensively used for SM and MM Quartz Fiber with Cable indoor and 0.25mm,0.9mm fiber, coating layer diameter 0.1-1.0mm and naked fiber size 16mm roughly.
【Excessive Reliability】–The rugged building plus improved reliability by resisting shock, mud, and rain;The brand new wind-cover design, improve the flexibility to forestall the mud & wind, Max.wind velocity of 15m/s;Constructed-in tremendous high-brightness LED provide comfort for night time work.
【Straightforward to make use of and Environment friendly work】–Auto splicing, auto arc optimization, auto heating operate, Auto checks fiber end-face, calibrate place of splicing, calculate splicing loss and temperature and stress compensation so on;Constructed-in counter to warn substitute electrode; Prepared-package battery with electrical amount indicator, handy carrying and alter; Between X/Y single display screen and X&Y simply change; splicing time lower than 9s, and heating time much less than28s (adjustable).
【Moveable Design】–Very Small dimension and light-weight weight–only 5.2(L)x6.0(W)x5.9(H)Inch and Just one.3kg/2.7lb(with out battery) or 1.6kg/3.4lb (with battery); Excessive power transportable straps design is handy for hanging and working;5.1” outdoor-enhanced TFT LCD show with X/Y / X / Y Auto turn-over operate, FS18-C In-built 10.8V 5200mah Lithium battery,It may possibly present 300+ (splice + heating) circles;Wind, sand and dirt prevention, waterproof, aseismatic design adapt to the out of doors atmosphere.
