Topping DX5 MQA Full Decoder ES9068AS*2 Chip NFCA LDAC USB DAC DSD512 PCM768kHz XU216 RAC XLR 6.35mm Headphone Amplifier (Black)

Value: $449.00
(as of Jul 08,2022 20:05:09 UTC – Particulars)

Spec：
PCM：
USB IN:44.kHz-768kHz/16bit-32bit
OPT/ COAX IN：44. 1kHz 192kHz/16bit-24bit
BT IN：AAC/SBC/APTX/APTX LL/APTX HD/L DAC
DSD(Native)
USB IN:DSD64-DSD512
OPT/ COAX IN：Not supported
BT IN：Not supported
DSD(DoP)
USB IN:DSD64-DSD256
OPT/ COAX IN：DSD64
BT IN：Not supported
MQA：
USB IN:Full Decode
OPT/ COAX IN：Full Decode
BT IN：Not supported

DX5 Decoding parameters (LineOut/USB In@96kHz)

RCA：
THD+N@1kHz (A-wt):<0.00010%
THD @20-20kHz 90kBw:<0.0005%
SNR@1kHz (A-wt):125dB
Dynamic vary @1kHz (A-Wt):125dB
Frequency Response:20Hz-20kHz ( ±0.1dB)/20Hz-40kHz ( ±0.3dB)
Output Stage:2.1Vrms @0dBFS
Noise@ A-wt:<1.5uVrms
Channel Crosstalk :-130dB @1kHz
Channel Steadiness:0.3dB
Output Impedance : 50Ω

XLR：
THD+N@1kHz (A-wt):<0.00009%
THD @20-20kHz 90kBw:<0.0002%
SNR@1kHz (A-wt):128dB
Dynamic vary @1kHz (A-Wt):128dB
Frequency Response:20Hz-20kHz ( ±0.1dB)/20Hz-40kHz ( ±0.3dB)
Output Stage:4.2Vrms @0dBFS
Noise@ A-wt:<2.0uVrms
Channel Crosstalk :-140dB @1kHz
Channel Steadiness:0.3dB
Output Impedance : 50Ω
DX5 Headphone Amplifer specs (USB In@96kHz)

6.35mm headphone jack
THD+N@1kHz (A-wt):<0.00010% @Output= 145mW (32Ω)/<0.00010% @Output= 15mW (300Ω)
THD@20-20kHz 90kBW:<0.00050% @Output= 145mW (32Ω)/<0.00020% @Output= 15mW (300Ω)
SNR@MAX OUT 1kHz (A-wt):125dB @1kHz
Dynamic Vary@1kHz (A-Wt):125dB @1kHz
FrequencyResponse:20Hz-20kHz (± 0.1dB)/20Hz-40kHz (±0.3dB)
Output Stage:6Vpp @G=L/25Vpp @G=H
Noise @A-wt:<1.7uVrms @G=L/<5.5uVrms @G=H
Channel Crosstalk:-114dB @1kHz
Acquire:G=L 6.7dB (Vrms/FS)/G=H 19dB (Vrms/FS)
Channel Steadiness:0.3 dB
Output Impedance:<0.1Ω
Output Energy:
1800mW x 2 @32Ω THD+N<1%
1000mW x 2 @64Ω THD+N<1%
250mW X 2 @300Ω THD+N<1%
Load impedance:>8Ω

● Plug and play to show your PC right into a HIFI supply: DX5 has a variety of compatibility: plug and play. DX5 makes use of 2nd era 16-core XMOS XU216 and USB helps as much as PCM 32bit 768kHz, DSD512 native and MQA full decoding.

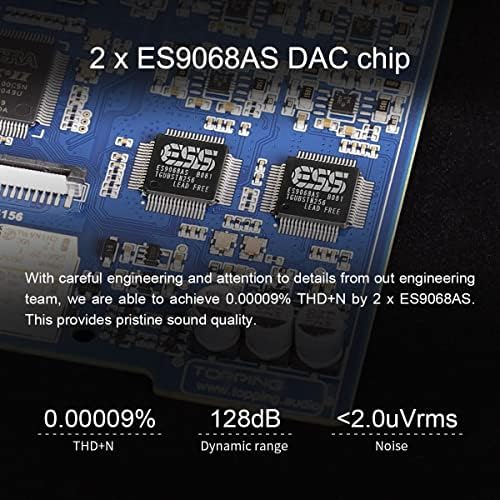

● LDAC 24bit 96kHz Bluetooth transmission: DX5 is Hello-Res Audio Wi-fi and LDAC licensed and helps LDAC / AAC / SBC / APTXIAPTX LAPTX HD protocol utilizing the most recent QCC5125 chipset. The QCC5125 DAC connects the digital sign to the 2xES9068AS for decoding.
● Constructed-in NFCA headphone amplifier: The brand new DX5 is supplied with an NFCA circuit optimized for this unit, reaching ultra-low noise and distortion. Pairs effectively with high-sensitivity IEMs and high-impedance headphones that eat massive quantities of energy.
● Multi-output mode: DX5 has 4 output modes: “headphone amplifier”, “headphone amplifier + line output”, “DAC”, and “preamplifier”.
