Waveshare Raspberry Pi IPS 1920×1080 13.3inch HDMI LCD H with Case Capacitive Contact Display screen with Toughened Glass Cowl Helps Raspberry Pi Raspbian Ubuntu

Worth: $221.99
(as of Jul 10,2022 16:04:09 UTC – Particulars)

Product Description

WIKI: waveshare.com/wiki/13.3inch_HDMI_LCD_(H)_(with_case)?amazon

Options

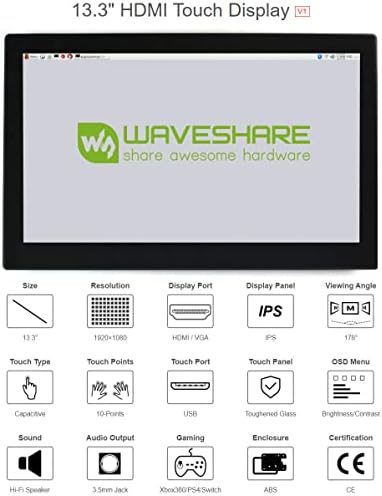

13.3inch IPS display,1920×1080 excessive decision
Toughened glass capacitive contact panel, 6H hardness
When works with Raspberry Pi, helps Raspberry Pi OS / Ubuntu / Kali and Retropie programs.
When working as a pc monitor, helps Home windows 11/10/8.1/8/7, ten-points contact.
Multi languages OSD menu, for energy administration, brightness/distinction adjustment, and so on.
3.5mm audio jack, helps HDMI audio output
Embedded ferrite Hello-Fi speaker(no want for exterior audio system)
Additionally helps VGA enter (particular cable is required and ought to be bought individually)
100x100mm spacing mounting holes (M4 screw gap) for basic wall mount
Comes with 60° tilt angle stand

Word: The model with out case does not have VGA enter and associated stand operate.

Working With Raspberry Pi 4

Working With Raspberry Pi Zero W

Working With AI Pc Jetson Nano

Working With Mini PC

Working with PC

This product helps Home windows 11/10/8.1/8/7 OS.：

1. Join 12/1A energy adapter to the DC interface of LCD, after connecting the again gentle will gentle.

2. Join the TOUCH interface of LCD to the USB interface of PC . Ready for a second, The contact shall be acknowledged by Home windows robotically

3. Should you use HDMI, you could join the HDMI interface of LCD to the HDMI port of PC. About 5s later, you may see that the LCD show correctly. Should you want the audio, you may insert a 3.5mm earphones to HP ports.

4. If you could use VGA communication, you could join the VGA interface of LCD to PC’s VGA ports by Mini HDMI to VGA Cable

Word:

1) If multi display are linked to 1 PC on the identical time, you may solely management the cursor by this LCD, it’s endorsed to set the LCD as essential display.

2) A few of PC can’t assist HDMI display Scorching Plug . On this case, restart the PC might clear up.

3) HP audio output solely works whereas utilizing HDMI communication

4) Mini HDMI to VGA Cable is important and have to be bought individually when you use VGA communication.

Working with Raspberry Pi

Helps Raspberry Pi OS / Ubuntu / Kali and Retropie programs on Raspberry Pi.

Please obtain the most recent model of the picture from the Raspberry Pi official web site.

1. Obtain the compressed file to the PC, and extract the img file. 2. Join the TF card to the PC and use SDFormatter to format the TF card. 3. Open the Win32DiskImager software program, choose the system picture ready in step 1, and click on write to burn the system picture. 4. After the programming is accomplished, open the config.txt file within the root listing of the TF card, add the next code on the finish of config.txt and put it aside

5. Join the 12V energy provide to the DC interface of the LCD, and you may see that the LCD backlight is lit usually. 6. Join the Contact port of the LCD to the USB port of the Raspberry Pi. 7. Join the HDMI port of the LCD to the HDMI port of the Raspberry Pi, energy on the Raspberry Pi, and await a number of seconds to show usually.

13.3inch IPS display,1920×1080 excessive decision.Toughened glass capacitive contact panel, 6H hardness.

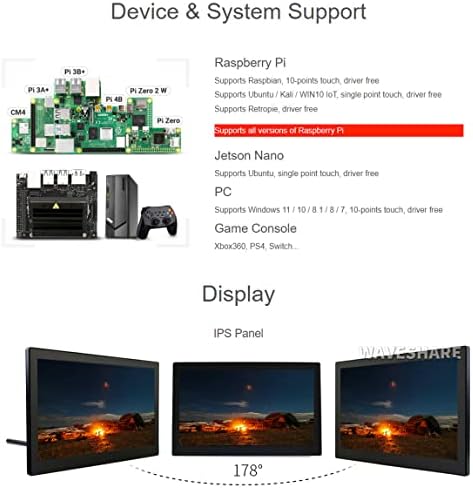

Helps widespread mini PCs comparable to Raspberry Pi, in addition to basic desktop computer systems.
When works with Raspberry Pi, helps Raspbian, Ubuntu, WIN10 IOT, single contact, and driver free.When work as a pc monitor, helps Home windows 10/8.1/8/7, ten-points contact, and driver free.
Multi languages OSD menu, for energy administration, brightness/distinction adjustment, and so on.
3.5mm audio jack, helps HDMI audio output.Embedded ferrite Hello-Fi speaker.Comes with 75° tilt angle stand.
