Large Band Directional Indoor Wall Mount 7/9 dBi Mobile Panel Antenna with N-Feminine Connectors for Cellphone Singal Booster/WiFi & Cellular Router and so forth. (698-2700 MHz) Suitable with All US Carriers

$25.99


Worth: $25.99
(as of Jul 09,2022 03:23:04 UTC – Particulars)

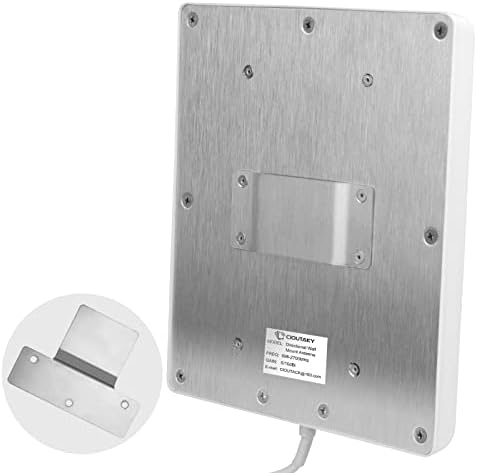

698-2700MHz Directional Wall Mount Antenna
CY-ANT-003
Characteristic:
● Excessive achieve,sturdy anti-interference potential
● Good protection system
● Full day working
● Beautiful look
● Optimized dimension
Utility:
● Indoor protection system
● CDMA800/GSM900/3G/WLAN/LTE system
Electrical Specs Frequency vary(MHz): 698~806/806~960/1710~2690
Bandwidth(MHz): 108/154/980
Achieve(MHz): 5/7/10
Half-power beam width(°): H:120 V:90/H:70 V:55/H:60 V:45
VSWR : ≤2.0
Enter Impedance(Ω) : 50
Polarization: Vertical
Most enter energy(W): 50
Lightning safety: DC Floor
Enter connector sort : N Feminine
Mechanical Specs:
Dimensions (mm): 210*180*45
Antenna weight(kg): 0.57
Working temperature(°c): -40~60
Rated Wind Velocity(m/s): 60
Radome materials: ABS
Radome coloration : white
Mounting method : wall mount
Mounting {hardware}(mm): ¢35-¢50

【As much as 7/9dBi Excessive Achieve】The indoor panel antenna new know-how, lovely design to suit your residence & workplace. The antenna most achieve is as much as 7/9dBi. This sign antenna works on all carriers.This antenna is assured to enhance your community connectivity and name high quality by rising the protection of your sign booster.
Simple Set up:12.2 in KMR240 cable with N Feminine connector, include wall mount bracket, no technical expertise required, straightforward to put in.Directional indoor wall-mount panel antenna supplies extensive protection for bigger residing/working areas by broadcasting sign within the path it’s pointed.
NOTE: It is a passive antenna, I cannot work alone. It should work along with different energetic community gadget like sign booster/repeater/router/entry level.works with 50-Ohm amplifiers and equipment.
