Wilson Electronics Wideband Directional Antenna 700-2700 MHz, 50 Ohm (314411)

Worth: $71.99 - $51.99
(as of Jul 09,2022 01:48:02 UTC – Particulars)

From the producer

Options

Works on all worldwide mobile bands for voice and 4G information: LTE/CDMA/GSM/UMTS/AWS
Excessive efficiency for Wilson Electronics mobile repeater-boosters: 8 to 10 dBi broadband
Designed for constructing exterior set up; direct at cell tower for finest sign
Excessive effectivity and compact design
UV steady white sealed radome
Rugged and waterproof for all climate operation

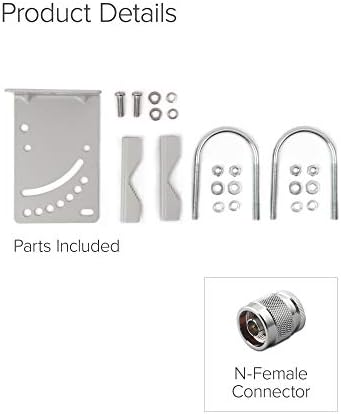

Easy set up equipment with tilt/swivel mast bracket for 1.25” to 2” diameter pipe/mast
2 12 months guarantee

Specs
Mechanical

Connector: N-Feminine
Dimensions / Boxed (in): 11.75×8.25×2.50 / 13.50×8.25×3.25
Weight / Boxed (lb): 1.8 / 2.0
Wind loading space (sq ft): ≤ 2.13
Rated wind velocity (mph): 90
Mounting mast diam. (in): 1.5-2.0
Radiator materials: aluminum
Radome materials / shade: ABS Anti UV / White
Water resistance: IPX Climate rated
Working temperature (°C/F): -40 to +55 / -40 to +131

Electrical

Frequency vary (MHz): 698-960 / 1710-2700
Polarization: Vertical / Horizontal
Achieve (dBi): 8.5 Avg / 9.5 Peak
Half-power beam width (°): Low Band: 100-109 Horizontal, 65 Vertical
Half-power beam width (°): Excessive Band: 70-85 Horizontal, 55 Vertical
Entrance-to-back ratio (dB): ≥ 10 AVG
Impedance (Ω): 50
VSWR: ≤ 1.6:1 / 1.4:1 avg
Most enter energy (W): 100
Lightning Resistance: DC Floor

VERSATILITY: The Wilson Electronics Wideband Directional Antenna helps a number of gadgets so that everybody can expertise enhanced 4G LTE and 3G indicators. It options as much as +10.6 dB achieve.
OUTSIDE CELLULAR ANTENNA FOR SIGNAL BOOSTERS: The Wilson Electronics Wideband Directional Antenna boosts your 4G LTE and 3G sign as much as 32X for fewer dropped calls, larger audio high quality, and quicker uploads and downloads.
PREMIUM QUALITY: This Wideband antenna options an N-Feminine connector that facilitates the switch of high-frequency info. The feminine connector can shortly obtain massive quantities of knowledge and works at radio frequencies within the multi-megahertz vary.
FRUSTRATION FREE SETUP: Designed for exterior set up, this Wideband directional antenna from incorporates a rugged waterproof construction that’s designed to resist injury from the weather. This bundle features a tilt-and-swivel mast bracket for 1.25- to 2-inch pipe or mast, permitting you to simply connect the antenna to the outside of a constructing..Polarization:Vertical
