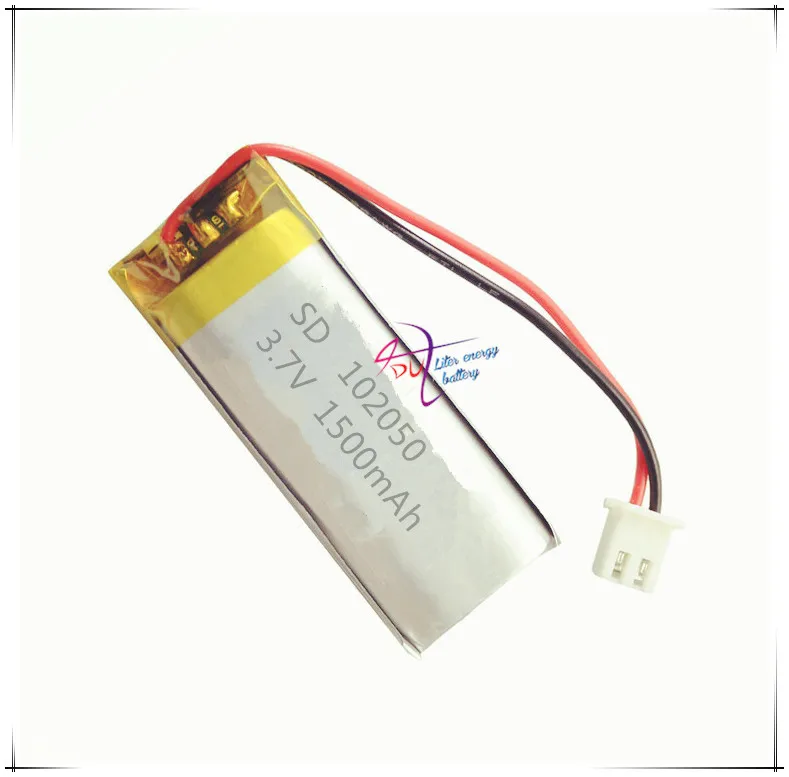

XHR-2P 2.54 3.7V 1500mAh 102050 polymer lithium battery studying machine Knight site visitors recorder

Product mannequin: SD102050
Product dimension:Max lengthy 50x vast 20X thick 10mm
Electrical core capability: 1500mAh

Nominal voltage: 3.7V

The usual plug: XHR-2P 2.54 reverse (silver oriented, black purple proper left)

Charging present: customary cost: 0.2C; quick cost: 0.5C

Customary charging technique: 0.2C CC (Heng Liu) cost to 4.25V, then CV (fixed voltage 4.2V) cost until cost present is lower than 0.05C

Most cost present: 0.5C

Steady discharge present: 0.5C

Most discharge present: 1C

Discharge cut-off voltage: 2.75V

Discharge temperature: -10C~+60C

Charging time: 12hrs (customary); 3hrs (quick)

Cost and discharge instances: greater than 800 instances

Self discharge: lower than 400uA

Different technical parameters on this specification shall prevail.

The battery is supplied with a protecting plate, which has the capabilities of stopping over charging, over discharging, over present, brief circuit, and so forth..

This product is principally relevant to cell emergency energy provide, MP3, cell audio system, microphone, Navigator (GPS), cell phone, toys and different digital units.

Safety board parameters
Working present: 1.5A
Present limiting safety: 2~3A
Over cost restrict: 4.2+/-0.05V
Over discharge restrict strain: 2.9+/-0.10V

* the precise capability of the protecting plate is barely lower than the nominal capability of the electrical core because of the over discharge of the protecting plate.

Hold in storage

• So as to make sure the battery to take care of the capability stage, the proposed battery and battery pack-20~35CStorage, low humidity, non corrosive fuel circumstances
• Battery to keep away from the excessive temperature or excessive humidity storage, in any other case it should result in battery leakage, rust, and low capability.
• Long run storage will seemingly result in a discount within the capability of the battery and battery pack, and the necessity for1-3A cost/Discharge cycle to attain most discharge capability.
• The battery ought to be charged and discharged as soon as in three months.

Warning:

• Reverse cost will not be allowed, the battery ought to be related based on polarity precisely, and cannot be reversed.
• Brief circuit will not be allowed, in any other case it should end in everlasting injury.
• The battery cannot be used within the restrict circumstances, reminiscent of: restrict temperature, deep cycle, excessive over charging and over discharge.
• Retailer the battery in a cool, dry place. If a lot of batteries are saved or shipped, the battery should be put in place first.
• Don’t on to the battery solder.
• If the battery seems noise, excessive temperature, leakage and different irregular scenario, please instantly cease utilizing.
• Don’t put into fireplace or attempt to disassemble the battery. The battery could burn or produce dangerous substances.
• It isn’t permitted to make use of outdated batteries or use half of the battery with the brand new battery, in any other case it should have a discharge.
• Outer casing and outer jacket tube for eradicating the battery.
• The battery will not be allowed to be put within the water.

Issues needing consideration

• Battery ought to be absolutely charged earlier than use.
• The charging technique based on technical specs of our.
• Cost utilizing the corresponding charger.
• The battery ought to keep away from using sealed, ought to present the suitable air flow system, in any other case the battery could produce hydrogen, within the case of ignition level will trigger the explosion.
• Do not attempt to be battery separation or bear extrusion and collision, could trigger the battery fever, burning from the alkaline electrolyte will injury the pores and skin and eyes also can eat garments.
• The battery ought to be evaded the kid, if swallowed, instantly contact the physician to take care of.
• When the battery will not be in use, it ought to be faraway from the system.
• When the primary use of a brand new battery or long-term storage use, earlier than the must be crammed with electrical energy.
• When the battery is sizzling, don’t contact it till it cools down.
• When the battery is used, it’s discovered that the power ought to be turned off when the power is decreased, in order to keep away from over discharge.
• Whenever you pull out the battery, you must maintain the battery pack and never maintain the wire.
• After the battery is used, if the battery is sizzling, it may be put in a spot the place there is no such thing as a direct daylight to chill down earlier than charging once more.
